Verification and testing

Once you have successfully provisioned Aliro credentials, perform tests to ensure your device is functioning correctly.

Select tests for running 

You can see the full list of available tests in the Aliro Certification Tool repository. From the Test Suites list, choose the tests that have Reader in the name, for example, BLE Reader. This will allow you to test the Bluetooth LE + UWB transport.

Note

You can upload the ncs-door-lock-and-access-control/docs/certification_assets/Aliro PICS v0.9.3.r2.xml file to the Test Harness to automatically select tests for execution. However, there is a known bug in this Test Harness revision that causes the PICS file to select some incorrect tests and skip others that are needed for execution.

Tests that should be executed (but might be skipped):
- NFC_RDR_NEG_STEPUP_AD_SCHEDULE_IN_ACCESS_RULE_AND_READER
- NFC_RDR_NEG_STEPUP_AD_SCHEDULE_TIME_VERIFY_REQUIRED
- NFC_RDR_NEG_STEPUP_AD_TIME_VERIFICATION_REQUIRED
- BLEUWB_RDR_ADVERTISEMENT_FORMAT
Tests that should not be executed (but might be selected):
- BLEUWB_RDR_CONTROL_FLOW_RDR_DESCRIPTOR_TAG

Always verify that the correct tests are chosen before executing them. If you do not upload the PICS file, you can choose the tests manually.

The Test Harness device will be operating as the Aliro User Device and communicate with the Reader device. For verification, execute the following tests, based on the aliro-sve-v1.0 tag. The test results shown below were acquired on the nRF5340 DK build using the following command:

west build -b nrf5340dk/nrf5340/cpuapp applications/aliro-access-control-app -- -Daliro-access-control-app_SNIPPET=uwb_qm35 -DCONFIG_DOOR_LOCK_EXPEDITED_FAST_PHASE=y -DCONFIG_DOOR_LOCK_STEP_UP_PHASE=y -DCONFIG_DOOR_LOCK_CREDENTIAL_ISSUER_CA=y

Test case	Description	Result
NFC_RDR_STANDARD_NO_CERT	Verify conformance of Reader UT in AUTH1 command.	PASS
NFC_RDR_NEG_AUTH0_EXTRA_TAG	Verify conformance of Reader UT in AUTH1 command.	PASS
NFC_RDR_NEG_AUTH1_EXTRA_TAG	Verify conformance of Reader UT in AUTH1 command.	PASS
NFC_RDR_NEG_AUTH0_WRONG_VALUE	Verify conformance of Reader UT in AUTH1 command.	PASS
NFC_RDR_NEG_SEL_RSP_NO_COMMON_EXPEDITED_PROTOCOL_VERSION	Verify conformance of Reader UT in SELECT command.	PASS
NFC_RDR_NEG_AUTH1_WRONG_VALUES	Verify conformance of Reader UT in AUTH1 command.	PASS
NFC_RDR_NEG_AUTH1_WRONG_UD_SIGNATURE	Verify conformance of Reader UT in AUTH1 command.	PASS
NFC_RDR_STANDARD_CERT_IN_LOAD_CERT_WITH_CHAINING	Verify conformance of Reader during NFC standard “transaction using LOAD CERT protocol”.	PASS
NFC_RDR_FAST	Verify conformance of Reader UT in expedited fast phase.	PASS
NFC_RDR_NEG_STEPUP_AD_DEVICE_KEY_INFO_MISMATCH	Verify rejection of Access Document not associated with the Access Credential.	PASS
NFC_RDR_NEG_STEPUP_AD_DOCTYPE_NOT_ALIROA	Verify rejection of Access Document with invalid docType.	PASS
NFC_RDR_NEG_STEPUP_AD_INVALID_ACCESS_DATA_ELEMENT_VERSION	Verify rejection of Access Document with incorrect Access Data Element version.	PASS
NFC_RDR_NEG_STEPUP_AD_INVALID_HASH_ISSUER_AUTH	Verify rejection of Access Document with an invalid Data Element digest.	PASS
NFC_RDR_NEG_STEPUP_AD_INVALID_SIGNATURE_ISSUER_AUTH	Verify rejection of Access Document with invalid IssuerAuth signature.	PASS
NFC_RDR_NEG_STEPUP_AD_ISSUER_CERTIFICATE_TIME_MISMATCH	Verify rejection of Access Document with issuer certificate time mismatch.	PASS
NFC_RDR_NEG_STEPUP_AD_ISSUER_CERT_INVALID_SIGNATURE	Verify rejection of Access Document with invalid issuer certificate signature.	PASS
NFC_RDR_NEG_STEPUP_AD_ISSUER_DOCTYPE_MISMATCH	Verify rejection of Access Document with incorrect issuerAuth doctype.	PASS
NFC_RDR_NEG_STEPUP_AD_NO_ACCESS_RULE_FOR_READER_ACTION	Verify rejection of Access Document with no Access Rule for the intended action.	PASS
NFC_RDR_NEG_STEPUP_AD_NO_DATA_ELEMENTS	Verify rejection of Access Document with no data elements.	PASS
NFC_RDR_NEG_STEPUP_AD_NO_ISSUER_CERT_NO_KEY_ID	Verify rejection of Access Document with no Issuer Certificate or Key Identifier.	PASS
NFC_RDR_NEG_STEPUP_AD_SCHEDULE_IN_ACCESS_RULE_AND_READER	Verify rejection of Access Document with schedule in access rule and reader.	PASS
NFC_RDR_NEG_STEPUP_AD_SCHEDULE_TIME_VERIFY_REQUIRED	Verify rejection of Access Document requiring schedule time verification.	PASS
NFC_RDR_NEG_STEPUP_AD_TIME_VERIFICATION_REQUIRED	Verify rejection of Access Document requiring time verification.	PASS
NFC_RDR_NEG_STEPUP_AD_UNKNOWN_CRITICAL_ACCESS_EXTENSION	Verify rejection of Access Document with unknown critical access extension.	PASS
NFC_RDR_NEG_STEPUP_AD_UNKNOWN_READER_RULE	Verify rejection of Access Document with unknown reader rule.	PASS
NFC_RDR_NEG_STEPUP_AD_VALIDITY_ITERATION	Verify rejection of Access Document with validity iteration.	PASS
NFC_RDR_STEPUP_AD_ACCESS_RULE	Verify parsing of Access Document with Access Rule.	PASS
NFC_RDR_STEPUP_AD_ISSUER_CERT_KEY_ID	Verify parsing of Access Document with Issuer Certificate Key ID.	PASS
NFC_RDR_STEPUP_AD_ISSUER_CERT	Verify parsing of Access Document with Issuer Certificate.	PASS
NFC_RDR_STEPUP_AD_KEY_ID	Verify parsing of Access Document with Key Identifier.	PASS
NFC_RDR_STEPUP_AD_UNKNOWN_NON_ACCESS_EXTENSION	Verify parsing of Access Document with unknown non-access extension.	PASS
NFC_RDR_STEPUP_AD_UNKNOWN_NON_CRITICAL_ACCESS_EXTENSION	Verify parsing of Access Document with unknown non-critical access extension.	PASS

Test case	Description	Result
BLEUWB_RDR_EXPEDITED_STANDARD_PHASE	Verify conformance of Reader UT in standard phase expedited transaction.	PASS
BLEUWB_RDR_RANGING_SUSPEND	Verify conformance of Reader UT in ranging suspend functionality.	PASS
BLEUWB_RDR_RANGING_RESUME	Verify conformance of Reader UT in ranging resume functionality.	PASS
BLEUWB_RDR_NEG_FAILED_L2CAP	Verify conformance of Reader UT in L2CAP connection failure handling.	PASS
BLEUWB_RDR_NEG_FAILED_SPSM_L2CAP	Verify conformance of Reader UT in SPSM L2CAP failure handling.	PASS
BLEUWB_RDR_NEG_TIMEOUT_BEFORE_AUTH0	Verify conformance of Reader UT in timeout handling before AUTH0.	PASS
BLEUWB_RDR_TIMEOUT_EXTENSION	Verify conformance of Reader UT in timeout extension handling.	PASS
BLEUWB_RDR_NEG_M2_MISMATCH_PARAMETER	Verify conformance of Reader UT in M2 parameter mismatch handling.	PASS
BLEUWB_RDR_NEG_M4_MISMATCH_PARAMETER	Verify conformance of Reader UT in M4 parameter mismatch handling.	PASS
BLEUWB_RDR_ADVERTISEMENT_FORMAT	Verify conformance of Reader UT in advertisement format.	PASS
BLEUWB_RDR_NEG_SUSPEND_MISMATCH_PARAMETER	Verify conformance of Reader UT in suspend parameter mismatch handling.	PASS
BLEUWB_RDR_STEPUP_PHASE	Verify conformance of Reader UT in step-up phase.	PASS
BLEUWB_RDR_EXPEDITED_FAST_PHASE	Verify conformance of Reader UT in expedited fast phase.	PASS

Running the test 

Complete the following steps for the required tests:

Navigate to the project you created in the Test Harness web interface and click Go To Test-Run.
Click on Add New Test.

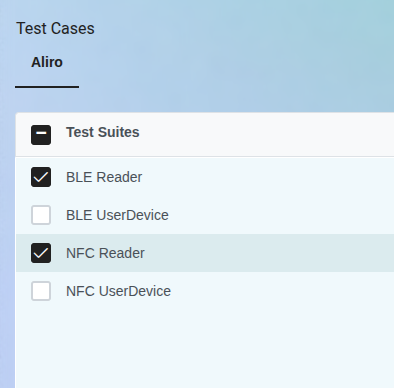

In the test suites, select either NFC Reader or BLE Reader and under the Test Cases section check the box of the test you wish to run.
Choose the operator and click Start.
Complete the test:
1. Position the Reader and Test Harness hardware close to each other, and align them to ensure optimal NFC communication.
2. A notification will appear asking you to set the Reader DUT in the appropriate mode and to place the devices next to each other for automatic NFC detection. Select Ok and click Submit.
1. Ensure the Reader is advertising and ready to accept Bluetooth LE connections from the Test Harness. You should see a notification requesting Bluetooth LE visibility for automatic detection.
2. Confirm that the Reader is advertising by checking the DUT console for logs indicating that advertising has started.
  <dbg> L2CAP server registered with PSM: 0x0080
3. Select Ok and click Submit. Restarting the Murata device, if prompted, is optional.

  Note

  At the start of each Bluetooth LE test, the firmware is uploaded to the Murata device, which may take some time. The Murata module (LBUA0VG2BP-EVK-P) is used by the Test Harness to establish and handle Bluetooth LE communication with the device under test.
Depending on the test you executed, you should see results similar to the following examples:

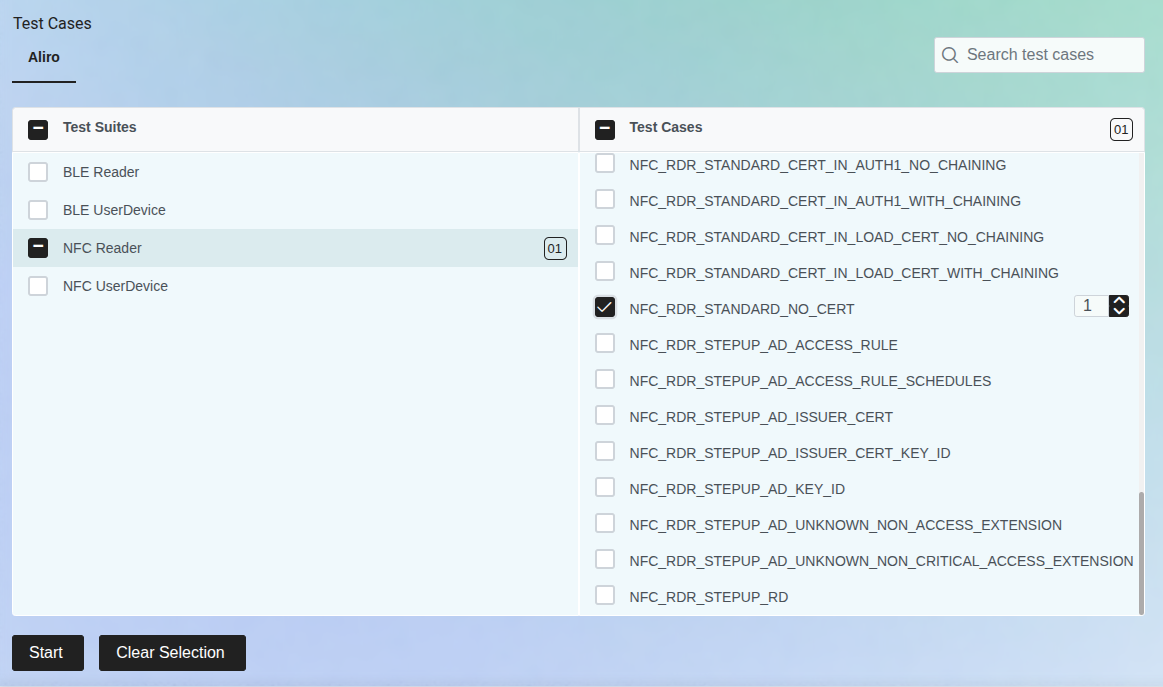

Tests selection view.

The Reader device will select the Test Harness User Device and initiate the Aliro Access Protocol commands exchange.

In the DUT’s serial console, you will see logs that indicate the state of the operation and the data payloads transmitted and received by the Reader. If the results show as passed, you will see the following output in the Test Harness web interface:

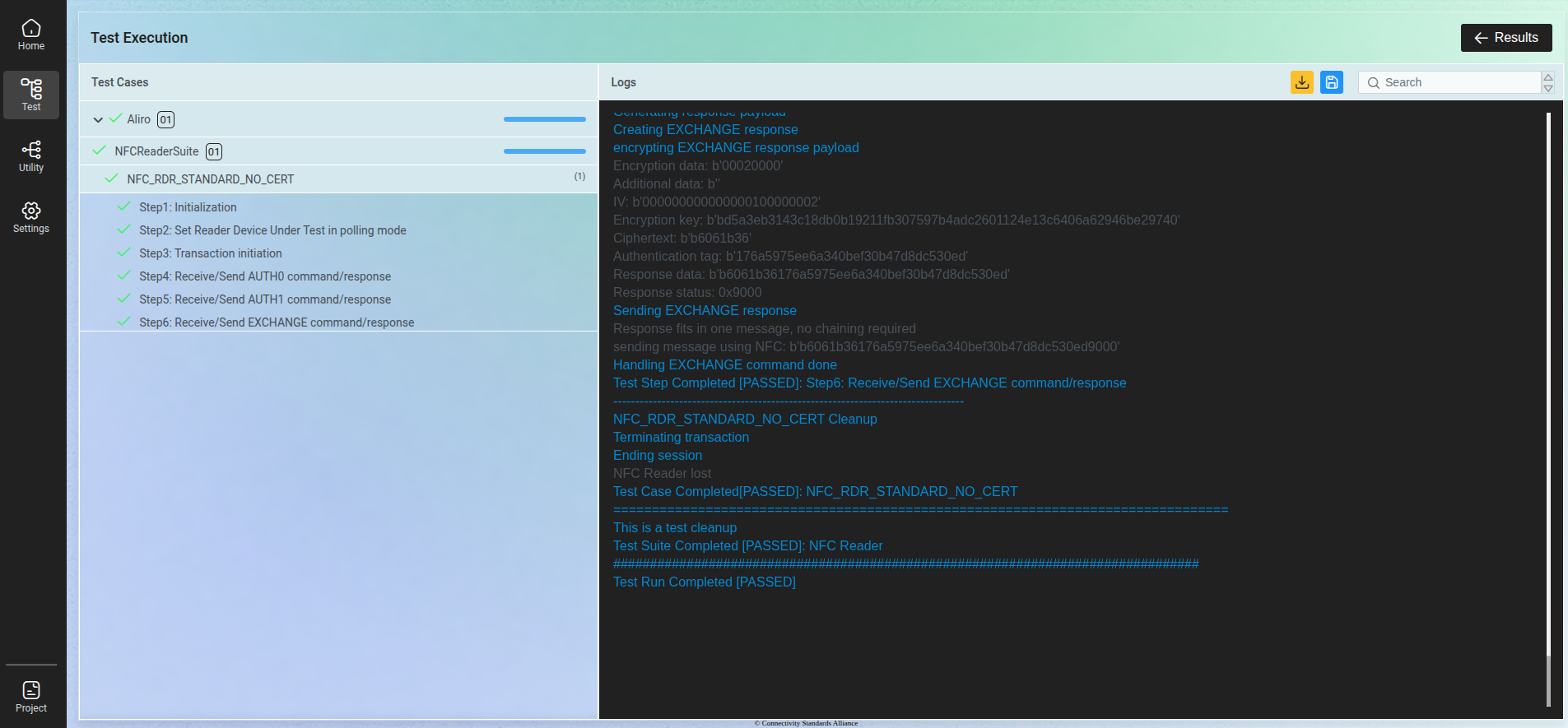

Example of the advanced test results.

After test execution is complete, you can check DUT logs to verify the communication and data exchange between the Reader and the test harness. The logs will provide detailed information about the test execution and authorization process (signature verification). When all installation and provisioning data provided in Setting up the Aliro Test Harness are correct, then you will see the following output in the DUT serial console:
ACCESS GRANTED
When access is granted and the lock is unlocked, the device signals this state by turning on a dedicated LED. For details, see the lock simulator section. When the provided Access Credential public key is incorrect, the following output will be displayed:
ACCESS DENIED

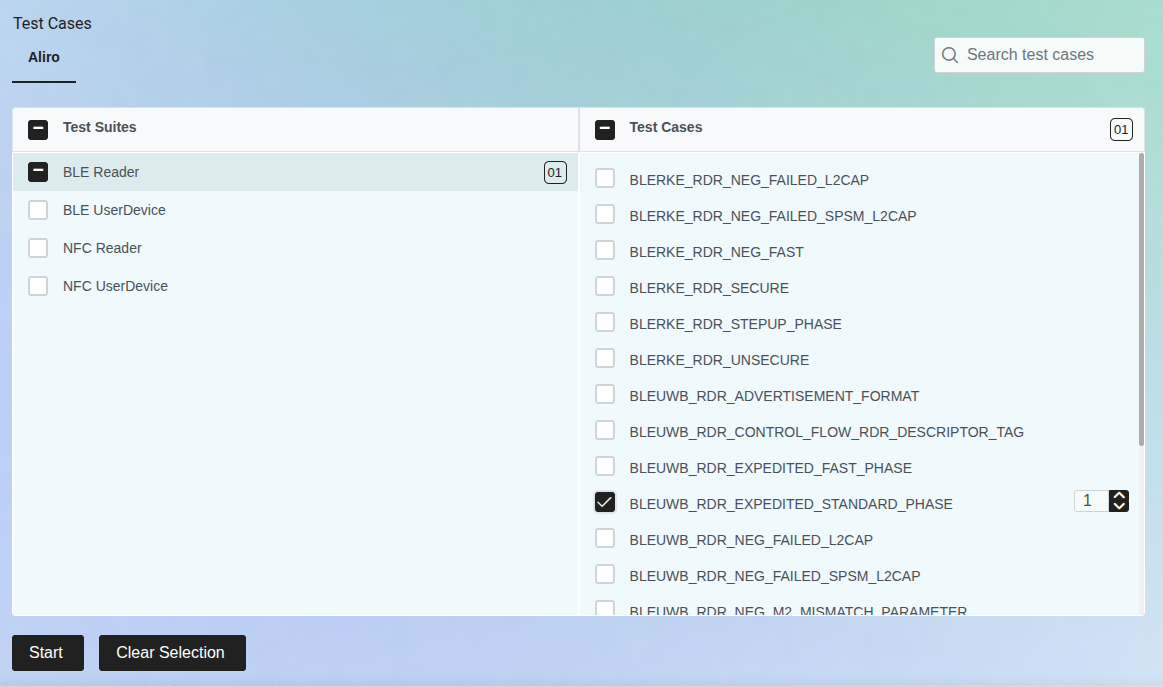

Tests selection view.

The Reader device will advertise over Bluetooth LE and the Test Harness will connect as a Bluetooth LE central device, initiating the Aliro Access Protocol commands exchange over Bluetooth LE.

In the DUT’s serial console, you will see logs that indicate the state of the Bluetooth LE connection, protocol execution, and the data payloads transmitted and received by the Reader. Additionally, the UWB connection will be configured and established. If the results show as passed, you will see the following output in the Test Harness web interface:

Basic test results view.

Note

If the application is built with Matter support, you can control the door lock remotely. For details on how to enable this feature, see the nRF Connect SDK door lock sample documentation in the Matter door lock remote access section.

Execute the Aliro certification tests 

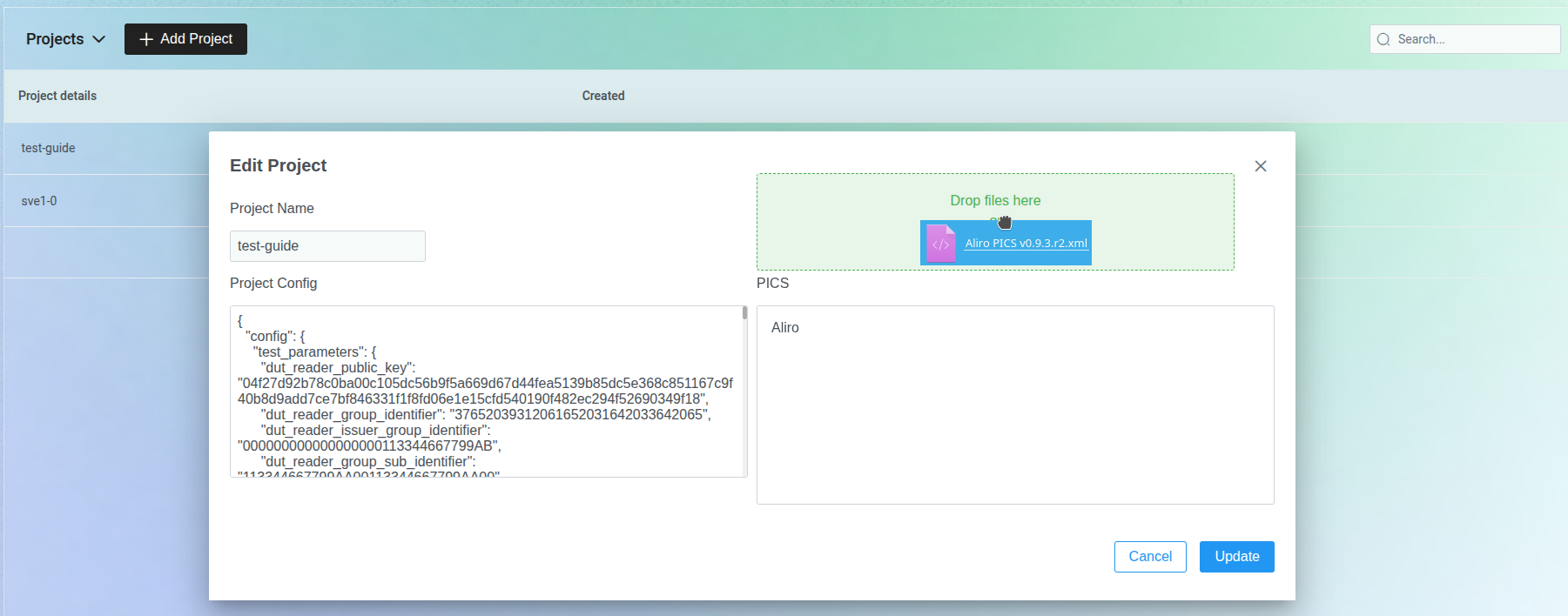

This guide assumes that you have uploaded the PICS file ncs-door-lock-and-access-control/docs/certification_assets/Aliro PICS v0.9.3.r2.xml to the Test Harness. You can also select tests manually.

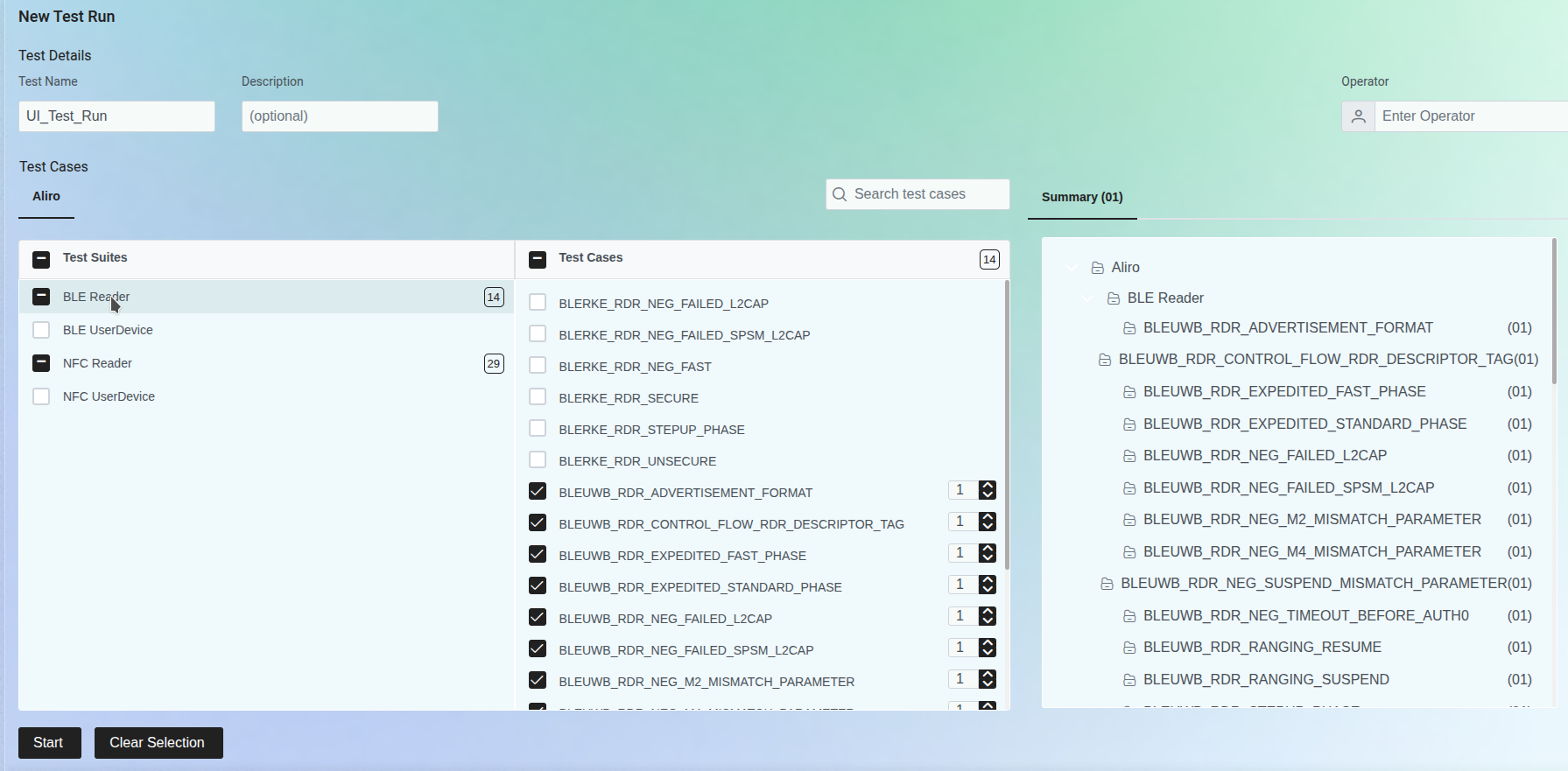

When the PICS file is uploaded, all required tests are selected automatically for NFC and Bluetooth LE Reader suites:

BLE selected tests. — Bluetooth LE selected tests.

The following table explains what should be configured before running a specific test. Some tests may also require post actions.

Test case(s)	Door Lock commands to execute
ALL TESTS	Before test session:
ALL TESTS	dl provisioning AC_key set 0 04742df736d0fc9be978c45b00e8fdf7cea684ea105ae574c1505a2c24ab6198e3125b7f1b7e1d134c55ece69681ba8ecc18a3836dc5199c759f31e8ccf17e3efa reader private_key set fdf71a3714e078c2c2fa907ae9acf624aa98add7edf7500e61cf8af4cc5a70a9 reader group_id 37652039312061652031642033642065 reader group_sub_id 113344667799AA00113344667799AA00
NFC_RDR_FAST, NFC_RDR_NEG_AUTH0_EXTRA_TAG, NFC_RDR_NEG_AUTH0_WRONG_VALUE, NFC_RDR_NEG_AUTH1_EXTRA_TAG, NFC_RDR_NEG_AUTH1_WRONG_UD_SIGNATURE, NFC_RDR_NEG_AUTH1_WRONG_VALUES, NFC_RDR_NEG_SEL_RSP_NO_COMMON_EXPEDITED_PROTOCOL_VERSION, NFC_RDR_NEG_STEPUP_AD_DEVICE_KEY_INFO_MISMATCH, NFC_RDR_NEG_STEPUP_AD_DOCTYPE_NOT_ALIROA, NFC_RDR_NEG_STEPUP_AD_INVALID_ACCESS_DATA_ELEMENT_VERSION, NFC_RDR_NEG_STEPUP_AD_INVALID_HASH_ISSUER_AUTH, NFC_RDR_NEG_STEPUP_AD_INVALID_SIGNATURE_ISSUER_AUTH, NFC_RDR_NEG_STEPUP_AD_ISSUER_CERT_INVALID_SIGNATURE, NFC_RDR_NEG_STEPUP_AD_ISSUER_CERTIFICATE_TIME_MISMATCH, NFC_RDR_NEG_STEPUP_AD_ISSUER_DOCTYPE_MISMATCH, NFC_RDR_NEG_STEPUP_AD_NO_ACCESS_RULE_FOR_READ, NFC_RDR_NEG_STEPUP_AD_NO_DATA_ELEMENTS, NFC_RDR_NEG_STEPUP_AD_NO_ISSUER_CERT_NO_KEY_ID, NFC_RDR_NEG_STEPUP_AD_UNKNOWN_CRITICAL_ACCESS_EXTENSION, NFC_RDR_NEG_STEPUP_AD_UNKNOWN_READER_RULE	Before test:
	dl provisioning AC_key set 0 04742df736d0fc9be978c45b00e8fdf7cea684ea105ae574c1505a2c24ab6198e3125b7f1b7e1d134c55ece69681ba8ecc18a3836dc5199c759f31e8ccf17e3efa
	Optional:
	reader group_id 37652039312061652031642033642065 dl provisioning CI_key set 0 047BA31938492E3F5E97BC91806B5835B5D9E426609139006711E5FB7A670EE4E12FC9F25396C013CC20166029D761A105DEA5E071E84A9E499920524CE2301137 dl provisioning CI_CA_key set 047BA31938492E3F5E97BC91806B5835B5D9E426609139006711E5FB7A670EE4E12FC9F25396C013CC20166029D761A105DEA5E071E84A9E499920524CE2301137
NFC_RDR_NEG_STEPUP_AD_VALIDITY_ITERATION	Before test:
	dl provisioning AC_key set 0 04742df736d0fc9be978c45b00e8fdf7cea684ea105ae574c1505a2c24ab6198e3125b7f1b7e1d134c55ece69681ba8ecc18a3836dc5199c759f31e8ccf17e3efa dl provisioning CI_key set 0 047BA31938492E3F5E97BC91806B5835B5D9E426609139006711E5FB7A670EE4E12FC9F25396C013CC20166029D761A105DEA5E071E84A9E499920524CE2301137 dl provisioning CI_CA_key set 047BA31938492E3F5E97BC91806B5835B5D9E426609139006711E5FB7A670EE4E12FC9F25396C013CC20166029D761A105DEA5E071E84A9E499920524CE2301137
	Optional:
	reader group_id 37652039312061652031642033642065
	After test:
	dl provisioning CI_key clear 0
NFC_RDR_STANDARD_CERT_IN_LOAD_CERT_WITH_CHAINING	Before test:
	dl provisioning AC_key clear 0 dl provisioning CI_key set 0 047BA31938492E3F5E97BC91806B5835B5D9E426609139006711E5FB7A670EE4E12FC9F25396C013CC20166029D761A105DEA5E071E84A9E499920524CE2301137 dl provisioning CI_CA_key set 047BA31938492E3F5E97BC91806B5835B5D9E426609139006711E5FB7A670EE4E12FC9F25396C013CC20166029D761A105DEA5E071E84A9E499920524CE2301137 reader group_id 000000000000000000113344667799ab reader issuer_public_key set 048608ad7d0bf1258ba6249aa3854b43acef9443cce31b617c32503adb959e5ad7d5915a1ff34ab461b46ff598c5fc72c6a6c8787c886741a4029bb3476eceff26 reader certificate set 3082010a040200003082010280145555555555555555555555555555555555555555811e637573746f6d20697373756572206e616d652e2e2e2e2e2e2e2e2e2e2e2e820d3230303130323030303030305a830d3235303530353030303030305a841e637573746f6d207375626a656374206e616d652e2e2e2e2e2e2e2e2e2e2e85420004f27d92b78c0ba00c105dc56b9f5a669d67d44fea5139b85dc5e368c851167c9f40b8d9add7ce7bf846331f1f8fd06e1e15cfd540190f482ec294f52690349f188648003045022051bc8503cc09a80f9f19fa033edcf68fb4c341499d908950de62382e9650ee5b022100a954899fd291c40d4f3f9f749518958678ff5688e7bdaa8a3535faf72450e506
	After test:
	dl provisioning CI_key clear 0 reader group_id 37652039312061652031642033642065 reader issuer_public_key clear reader certificate clear
NFC_RDR_STANDARD_NO_CERT	Before test:
NFC_RDR_STANDARD_NO_CERT	reader group_id 37652039312061652031642033642065 dl provisioning AC_key set 0 04742df736d0fc9be978c45b00e8fdf7cea684ea105ae574c1505a2c24ab6198e3125b7f1b7e1d134c55ece69681ba8ecc18a3836dc5199c759f31e8ccf17e3efa
NFC_RDR_STEPUP_AD_ACCESS_RULE, NFC_RDR_STEPUP_AD_ISSUER_CERT, NFC_RDR_STEPUP_AD_ISSUER_CERT_KEY_ID, NFC_RDR_STEPUP_AD_KEY_ID, NFC_RDR_STEPUP_AD_UNKNOWN_NON_ACCESS_EXTENSION, NFC_RDR_STEPUP_AD_UNKNOWN_NON_CRITICAL_ACCESS_EXTENSION	Before test:
	dl provisioning CI_key set 0 047BA31938492E3F5E97BC91806B5835B5D9E426609139006711E5FB7A670EE4E12FC9F25396C013CC20166029D761A105DEA5E071E84A9E499920524CE2301137 dl provisioning CI_CA_key set 047BA31938492E3F5E97BC91806B5835B5D9E426609139006711E5FB7A670EE4E12FC9F25396C013CC20166029D761A105DEA5E071E84A9E499920524CE2301137 reader group_id 37652039312061652031642033642065

Test case(s)

Door Lock commands to execute

ALL TESTS

Before test:

dl provisioning AC_key set 0 04742df736d0fc9be978c45b00e8fdf7cea684ea105ae574c1505a2c24ab6198e3125b7f1b7e1d134c55ece69681ba8ecc18a3836dc5199c759f31e8ccf17e3efa
reader private_key set fdf71a3714e078c2c2fa907ae9acf624aa98add7edf7500e61cf8af4cc5a70a9
reader group_id 37652039312061652031642033642065
reader group_sub_id 113344667799AA00113344667799AA00

BLEUWB_RDR_EXPEDITED_FAST_PHASE

After test:

dl kpersistent clear 0

BLEUWB_RDR_STEPUP_PHASE

Before test:

dl provisioning CI_key set 0 047BA31938492E3F5E97BC91806B5835B5D9E426609139006711E5FB7A670EE4E12FC9F25396C013CC20166029D761A105DEA5E071E84A9E499920524CE2301137
dl provisioning CI_CA_key set 047BA31938492E3F5E97BC91806B5835B5D9E426609139006711E5FB7A670EE4E12FC9F25396C013CC20166029D761A105DEA5E071E84A9E499920524CE2301137

After test:

reader group_id 37652039312061652031642033642065
