Event handling

Caution

The High-Performance Framework (HPF) support in the nRF Connect SDK is experimental and is limited to the nRF54L15 and nRF54LM20 devices.

This page section outlines the critical requirements and implementation strategies for managing events within the system, ensuring that functionalities are both modular and precise in execution.

Note

This page outlines best practices for architecture design. You might need to implement some components, as they are not yet available.

Requirements

The system must support the integration of multiple High-Performance Framework (HPF) peripherals, ensuring the following:

• Modularity, allowing to combine functionalities of multiple HPF peripherals.

• Timing accuracy, focusing on handling certain parts of the code with very accurate timings.

• Verification, ensuring it is possible verify timing accuracy without the need to rerun an entire suite of hardware characteristic tests.

Implementation

To ensure precise timing, specific sections of the code should be identified and managed as Hard-Real Time (HRT) functions. These functions must be kept separate from the main application code.

During the build process, HRT functions are compiled into assembly code. This code is then compared to a previously verified version to ensure that there are no significant deviations. If the differences are minimal or non-existent, the new code will be considered accurate for timing.

HRT functions shall be developed using the Hardware Abstraction Layer (HAL) and avoid any calls to external functions. While you can use macros that do not lead to external function calls, you must redefine locally any external macro that influences the assembly code to maintain the required timing accuracy.

Furthermore, HRT functions shall be implemented as interrupt handlers. This implementation ensures that these functions are executed in the correct sequence when triggered by multiple sources, maintaining the system’s timing accuracy.

Interaction between HRT and non-HRT code

Since HRT functions shall be implemented as Interrupt Service Routines (ISR) they cannot use function arguments for passing values between application and HRT. To facilitate this communication, you can use the following methods or their combination:

• VEVIF interrupt ID - You can assign separate HRT functions to certain VEVIF IRQs.

• Shared memory - You can store data in the pre-defined memory addresses.

The sequence flow must be designed to handle initialization, transaction requests, and error handling efficiently. During initialization, the system boots up and prepares for operation by entering a wait state. For transaction requests, the system handles transmission and reception requests through IPC mechanisms, utilizing shared memory or IRQ numbers for communication between different parts of the system.

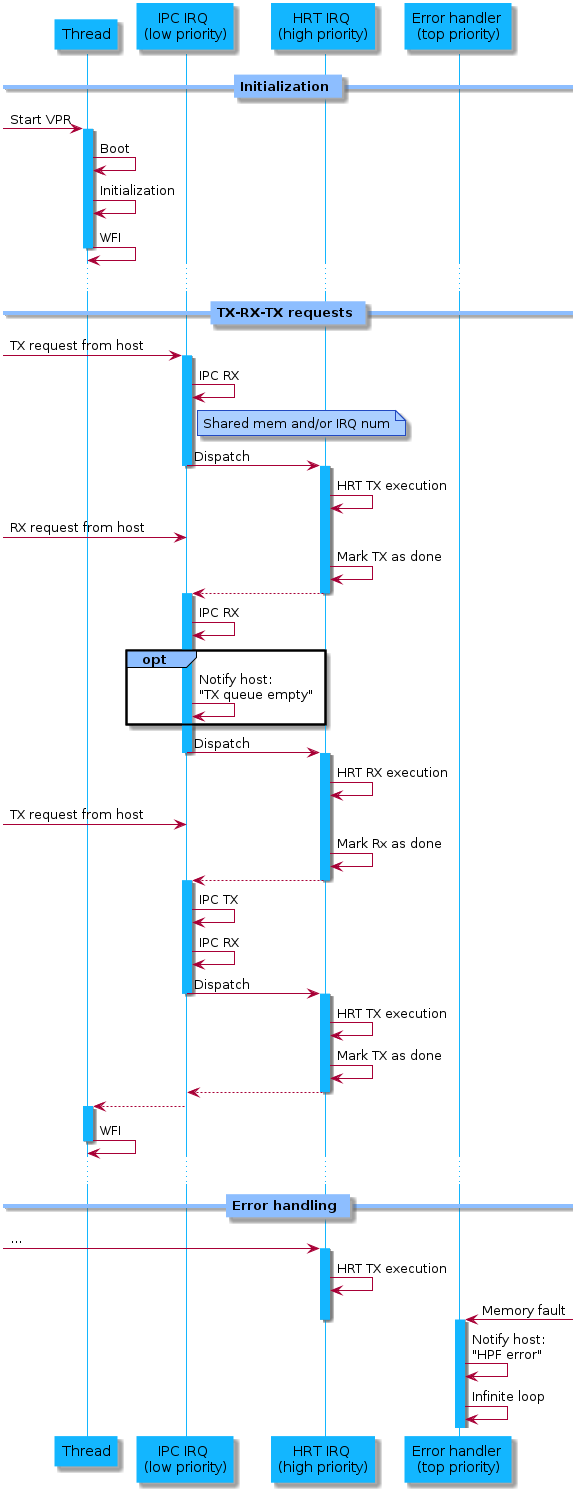

In the event of an error, such as a memory fault, the system triggers an error handler which notifies the Host of the error and then enters an infinite loop to halt further operations:

This sequence ensures that the system maintains robust operation and handles errors effectively to prevent system failures.
