MAX32660EVSYS

Overview

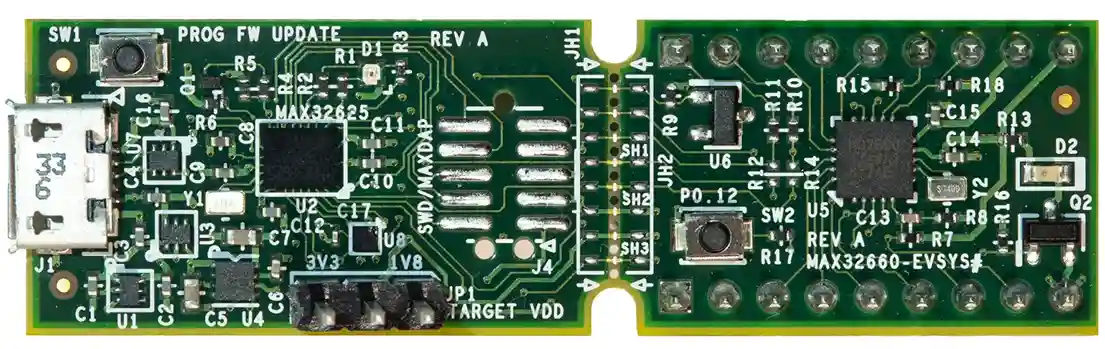

The MAX32660 evaluation system offers a compact development platform that provides access to all the features of the MAX32660 in a tiny, easy to use board. A MAX32625PICO-based debug adapter comes attached to the main board. It can be snapped free when programming is complete. The debug module supports an optional 10-pin Arm® Cortex® debug connector for DAPLink functionality. Combined measurements are 0.65in x 2.2in, while the main board alone measures 0.65in x 0.95in. External connections terminate in a dual-row header footprint compatible with both thru-hole and SMT applications. This board provides a powerful processing subsystem in a very small space that can be easily integrated into a variety of applications.

The Zephyr port is running on the MAX32660 MCU.

Hardware

  • MAX32660 MCU:

    • High-Efficiency Microcontroller for Wearable Devices

      • Internal Oscillator Operates Up to 96MHz

      • 256KB Flash Memory

      • 96KB SRAM, Optionally Preserved in Lowest Power Backup Mode

      • 16KB Instruction Cache

      • Memory Protection Unit (MPU)

      • Low 1.1V VCORE Supply Voltage

      • 3.6V GPIO Operating Range

      • Internal LDO Provides Operation from Single Supply

      • Wide Operating Temperature: -40 °C to +105 °C

    • Power Management Maximizes Uptime for Battery Applications

      • 85µA/MHz Active Executing from Flash

      • 2µA Full Memory Retention Power in Backup Mode at VDD = 1.8V

      • 450nA Ultra-Low Power RTC at VDD=1.8V

      • Internal 80kHz Ring Oscillator

    • Optimal Peripheral Mix Provides Platform Scalability

      • Up to 14 General-Purpose I/O Pins

      • Up to Two SPI

      • I2S

      • Up to Two UARTs

      • Up to Two I2C, 3.4Mbps High Speed

      • Four-Channel Standard DMA Controller

      • Three 32-Bit Timers

      • Watchdog Timer

      • CMOS-Level 32.768kHz RTC Output

  • Benefits and Features of MAX32660-EVSYS:

    • DIP Breakout Board

      • 100mil Pitch Dual Inline Pin Headers

      • Breadboard Compatible

    • Integrated Peripherals

      • Red Indicator LED

      • User Pushbutton

    • MAX32625PICO-Based Debug Adapter

      • CMSIS-DAP SWD Debugger

      • Virtual UART Console

Supported Features

The max32660evsys board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Programming and Debugging

The max32660evsys board supports the runners and associated west commands listed below.

flash debug

Flashing

An Arm® debug access port (DAP) provides an external interface for debugging during application development. The DAP is a standard Arm CoreSight® serial wire debug port, uses a two-pin serial interface (SWDCLK and SWDIO), and is accessed through 10-pin header (J4).

Once the debug probe is connected to your host computer, then you can simply run the west flash command to write a firmware image into flash.

Note

This board uses OpenOCD as the default debug interface. You can also use a Segger J-Link with Segger’s native tooling by overriding the runner, appending --runner jlink to your west command(s). The J-Link should be connected to the standard 2*5 pin debug connector (J3) using an appropriate adapter board and cable.

Debugging

Please refer to the Flashing section and run the west debug command instead of west flash.
