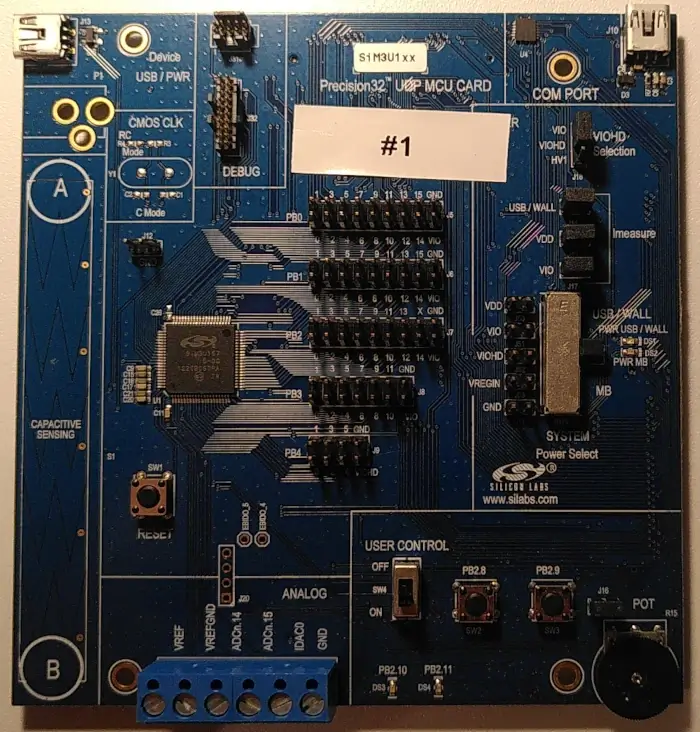

SiM3U1xx 32-bit MCU USB Development Kit

Overview

This is a development kit [3] that is used to develop software for the SiM3U1xx MCUs.

For more information about the SiM3U167 SoC and the SiM3U1xx board, refer to these documents:

The sim3u1xx_dk board supports the hardware features listed below.

on-chip / on-board: Feature integrated in the SoC / present on the board.
2 / 2: Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo: Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Pin	Name	Note
PB1.12	TX (O)	Serial connection to host via USB virtual COM port
PB1.13	RX (I)
PB1.14	RTS (O)
PB1.15	CTS (I)
PB2.8	Push button switch (SW2)
PB2.9	Push button switch (SW3)
PB2.10	Red LED (DS3)
PB2.11	Yellow LED (DS4)
PB1.5	Potentiometer
PB2.12	Potentiometer bias

The sim3u1xx_dk board supports the runners and associated west commands listed below.

	flash	debug

The sample application Hello World is used for this example. Build the Zephyr kernel and application:

# From the root of the zephyr repository
west build -b sim3u1xx_dk samples/hello_world

Connect the sim3u1xx_dk to your host computer using both USB port and you should see a USB serial connection.

Open a serial terminal (minicom, putty, etc.) with the following settings:

Reset the board and you’ll see the following message on the corresponding serial port terminal session:

Hello World! sim3u1xx_dk/sim3u167
