STM32F413H Discovery

Overview

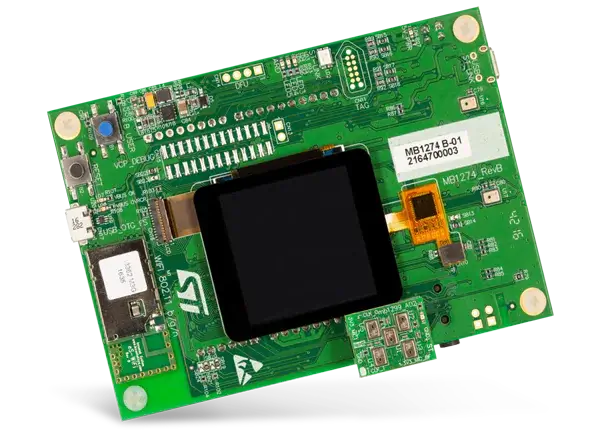

The STM32F413H-DISCO Discovery kit features an ARM Cortex-M4 based STM32F413ZH MCU with a wide range of connectivity support and configurations. Here are some highlights of the STM32F413H-DISCO board:

  • STM32F413ZHT6 microcontroller featuring 1.5 Mbyte of Flash memory and 320 Kbytes of RAM in an LQFP144 package

  • On-board ST-LINK/V2-1 SWD debugger supporting USB re-enumeration capability:

    • USB virtual COM port

    • Mass storage

    • Debug port

  • 1.54 inch 240x240 pixel TFT color LCD with parallel interface and capacitive touchscreen

  • I2S Audio CODEC, with a stereo headset jack, including analog microphone input and a loudspeaker output

  • Stereo digital MEMS microphones

  • MicroSD card connector extension

  • I2C extension connector

  • 128 Mbit Quad-SPI Nor Flash

  • 8 Mbit 16-bit wide PSRAM

  • Reset and User buttons

  • Two color user LEDs.

  • USB OTG FS with Micro-AB connector

  • Four power supply options:

    • ST-LINK/V2-1 USB connector

    • User USB FS connector

    • VIN from Arduino* connectors

      • 5 V from Arduino* connectors

  • Two power supplies for MCU: 2.0 V and 3.3 V

  • Compatible with Arduino(tm) Uno revision 3 connectors

  • Extension connector for direct access to various features of STM32F413ZHT6 MCU

  • Comprehensive free software including a variety of examples, part of STM32Cube package

More information about the board can be found at the 32F413HDISCOVERY website.

Hardware

STM32F413H-DISCO Discovery kit provides the following hardware components:

  • STM32F413ZHT6 in LQFP144 package

  • ARM® 32-bit Cortex®-M4 CPU with FPU

  • 100 MHz max CPU frequency

  • VDD from 1.7 V to 3.6 V

  • 1.5 MB Flash

  • 320 KB SRAM

  • GPIO with external interrupt capability

  • LCD parallel interface, 8080/6800 modes

  • 1x12-bit ADC with 16 channels

  • RTC

  • Advanced-control Timer

  • General Purpose Timers (12)

  • Watchdog Timers (2)

  • USART/UART (10)

  • I2C (4)

  • SPI (5)

  • SDIO

  • SAI

  • 3xCAN

  • USB OTG 2.0 Full-speed

  • CRC calculation unit

  • True random number generator

  • DMA Controller

More information about STM32F413ZH can be found here:

Supported Features

The stm32f413h_disco board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Pin Mapping

STM32F413H-DISCO Discovery kit has 8 GPIO controllers. These controllers are responsible for pin muxing, input/output, pull-up, etc.

For more details please refer to 32F413HDISCOVERY board User Manual.

Default Zephyr Peripheral Mapping:

  • UART_6_TX : PG14

  • UART_6_RX : PG9

  • LD1 : PE3

  • LD2 : PC5

System Clock

STM32F413H-DISCO System Clock could be driven by internal or external oscillator, as well as main PLL clock. By default System clock is driven by PLL clock at 100MHz, that is driven by the internal oscillator.

Serial Port

The STM32F413H-DISCO Discovery kit has up to 10 UARTs. The Zephyr console output is assigned to UART6. Default settings are 115200 8N1.

Programming and Debugging

The stm32f413h_disco board supports the runners and associated west commands listed below.

flash debug

STM32F413H-DISCO Discovery kit includes an ST-LINK/V2 embedded debug tool interface.

Applications for the STM32F413H-DISCO board configuration can be built and flashed in the usual way (see Building an Application and Run an Application for more details).

Flashing

The board is configured to be flashed using west STM32CubeProgrammer runner, so its installation is required.

Alternatively, OpenOCD or JLink can also be used to flash the board using the --runner (or -r) option:

$ west flash --runner openocd
$ west flash --runner jlink

Flashing an application to STM32F413H-DISCO

Connect the STM32F413H-DISCO Discovery kit to your host computer using the USB port, then run a serial host program to connect with your board:

$ minicom -D /dev/ttyACM0

Then build and flash an application. Here is an example for the Hello World application.

# From the root of the zephyr repository
west build -b stm32f413h_disco samples/hello_world
west flash

You should see the following message on the console:

Hello World! stm32f413h_disco/stm32f413xx

Debugging

You can debug an application in the usual way. Here is an example for the Hello World application.

# From the root of the zephyr repository
west build -b stm32f413h_disco samples/hello_world
west debug
