Overview

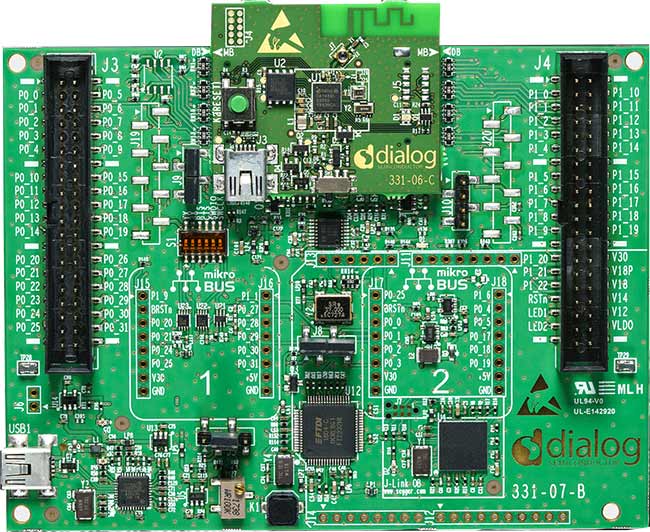

The DA1469x Development Kit Pro hardware provides support for the Renesas DA1469x ARM Cortex-M33 MCU family. The development kit consist of a motherboard with connectors and integrated debugger and an interchangeable daughterboard with an actual MCU (e.g. DA14695 or DA14699).

Hardware

DA1469x Development Kit Pro has two external oscillators. The frequency of the sleep clock is 32768 Hz. The frequency of the system clock is 32 MHz.

Supported Features

The da1469x_dk_pro board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

For more information about the DA14695 Development Kit see:

System Clock

The DA1469x Development Kit Pro is configured to use the 32 MHz external oscillator on the board.

Connections and IOs

The DA1469x Development Kit Pro has one LED and one push button which can be used by applications. The UART is connected to on-board serial converter and accessible via USB1 port on motherboard.

The pin connections are as follows:

  • LED (red), located on daughterboard = P1.01

  • BUTTON, located on motherboard = P0.06

  • UART RX, via USB1 on motherboard = P0.08

  • UART TX, via USB1 on motherboard = P0.09

System requirements

Prerequisites

Renesas HAL requires Bluetooth controller binary blobs in order to work. Run the command below to retrieve those files.

west blobs fetch hal_renesas

Note

It is recommended running the command above after west update.

Programming and Debugging

The da1469x_dk_pro board supports the runners and associated west commands listed below.

flash debug

Applications for the da1469x_dk_pro board configuration can be built, flashed, and debugged in the usual way. See Building an Application and Run an Application for more details on building and running.

Flashing

The DA1469x boots from an external flash connected to QSPI interface. The image written to flash has to have proper header prepended. The process is simplified by using dedicated eZFlashCLI [4] tool that takes care of writing header and can handle different types of flash chips connected to DA1469x MCU. Follow instructions on ezFlashCLI [4] to install the tool. Once installed, flashing can be done in the usual way.

# From the root of the zephyr repository
west build -b da1469x_dk_pro samples/basic/blinky
west flash

Debugging

The DA1469x Development Kit Pro includes a J-Link [3] adaptor built-in on motherboard which provides both debugging interface and serial port. Application can be debugged in the usual way once DA1469x Development Kit Pro is connected to PC via USB port on motherboard.
