FRDM-K32L2B3

Overview

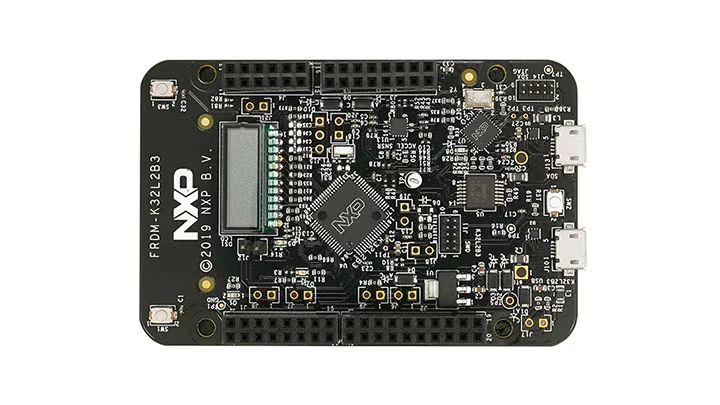

The FRDM-K32L2B3 FRDM development board provides a platform for evaluation and development of the K32 L2B SoC Family. The board provides easy Access to K32 L2B SoC I/O.

Hardware

  • K32L2B31VLH0A SoC running at up to 48 MHz, 256 kB flash memory, 32 kB SRAM memory.

  • Full-speed USB port with micro A/B connector for device functionality.

  • NXP FXOS8700CQ digital sensor, 3D accelerometer (±2g/±4g/±8g) + 3D magnetometer.

  • On-board segment LCD.

  • Form factor compatible with Arduino® Rev3 pin layout.

  • OpenSDA debug interface.

For more information about the K32L2B31VLH0A SoC and FRDM-K32L2B3 board:

Supported Features

The frdm_k32l2b3 board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Connections and IOs

The K32L2B31VLH0A SoC has five pairs of pinmux/gpio controllers, and all are currently enabled (PORTA/GPIOA, PORTB/GPIOB, PORTC/GPIOC, PORTD/GPIOD, and PORTE/GPIOE) for the FRDM-K32L2B3 board.

Name

Function

Usage

PTD5

GPIO

Green LED

PTE31

GPIO

Red LED

PTA4

GPIO

User Button 1 (SW1)

PTC3

GPIO

User Button 2 (SW2)

PTA1

LPUART0_RX

UART Console

PTA2

LPUART0_TX

UART Console

PTE24

I2C0_SCL

I2C Accelerometer

PTE25

I2C0_SDA

I2C Accelerometer

System Clock

The K32L2B31VLH0A SoC is configured to use the 32.768 kHz external oscillator on the board to generate a 48 MHz system clock.

Serial Port

The K32L2B31VLH0A LPUART0 is used for the console.

Programming and Debugging

The frdm_k32l2b3 board supports the runners and associated west commands listed below.

flash debug

Build and flash applications as usual (see Building an Application and Run an Application for more details).

Configuring a Debug Probe

A debug probe is used for both flashing and debugging the board. This board is configured by default to use the OpenSDA DAPLink Onboard Debug Probe.

For more information about OpenSDA and firmware applications check OpenSDA FRDM-K32L2B3.

Using LinkServer

Install the LinkServer Debug Host Tools and make sure they are in your search path. LinkServer works with the CMSIS-DAP firmware. Please follow the instructions on OpenSDA DAPLink Onboard Debug Probe and select the latest revision of the firmware image.

LinkServer is the default for this board, west flash and west debug will call the linkserver runner.

west flash
west debug

Using pyOCD

Install the pyOCD Debug Host Tools and make sure they are in your search path. pyOCD works with the CMSIS-DAP firmware.

Add the arguments -DBOARD_FLASH_RUNNER=pyocd and -DBOARD_DEBUG_RUNNER=pyocd when you invoke west build to override the default runner from linkserver to pyocd:

# From the root of the zephyr repository
west build -b frdm_k32l2b3 samples/hello_world -- -DBOARD_FLASH_RUNNER=pyocd -DBOARD_DEBUG_RUNNER=pyocd

Configuring a Console

Regardless of your choice in debug probe, we will use the OpenSDA microcontroller as a usb-to-serial adapter for the serial console.

Connect a USB cable from your PC to J13.

Use the following settings with your serial terminal of choice (minicom, putty, etc.):

  • Speed: 115200

  • Data: 8 bits

  • Parity: None

  • Stop bits: 1

Flashing

Here is an example for the Hello World application.

# From the root of the zephyr repository
west build -b frdm_k32l2b3 samples/hello_world
west flash

Open a serial terminal, reset the board (press the SW2 button), and you should see the following message in the terminal:

*** Booting Zephyr OS build v4.1.0-7032-g3198db1b1229 ***
Hello World! frdm_k32l2b3/k32l2b31a

Debugging

Here is an example for the Hello World application.

# From the root of the zephyr repository
west build -b frdm_k32l2b3 samples/hello_world
west debug

Open a serial terminal, step through the application in your debugger, and you should see the following message in the terminal:

*** Booting Zephyr OS build v4.1.0-7032-g3198db1b1229 ***
Hello World! frdm_k32l2b3/k32l2b31a
