GD32F450I-EVAL

Overview

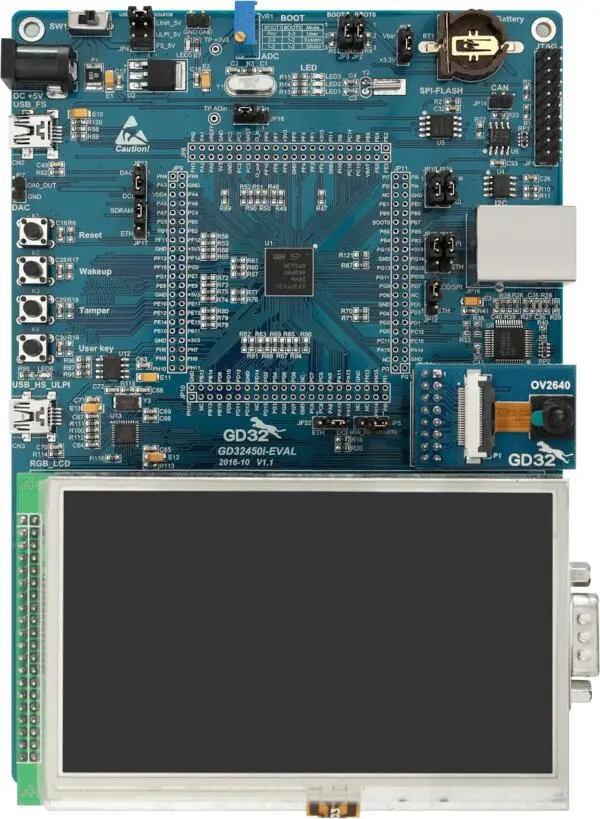

The GD32F450I-EVAL board is a hardware platform that enables prototyping on GD32F450IK Cortex-M4F Stretch Performance MCU.

The GD32F450IK features a single-core ARM Cortex-M4F MCU which can run up to 200 MHz with flash accesses zero wait states, 3072kiB of Flash, 256kiB of SRAM and 140 GPIOs.

Hardware

  • GD32F450IKT6 MCU

  • AT24C02C 2Kb EEPROM

  • GD25Q32C 16Mbit SPI and QSPI NOR Flash

  • GD9FS1G8F2A 1Gbit NAND Flash

  • Micron MT48LC16M16A2P-6AIT 256Mbit SDRAM

  • 3 x User LEDs

  • 3 x User Push buttons

  • 1 x USART (RS-232 at J1 connector)

  • 1 x POT connected to an ADC input

  • Headphone interface

  • Micro SD Card Interface

  • USB FS connector

  • USB HS connector

  • 1 x CAN

  • Ethernet Interface

  • 3.5” RGB-LCD (320x480)

  • OV2640 Digital Camera

  • GD-Link on board programmer

  • J-Link/JTAG connector

For more information about the GD32F450 SoC and GD32F450I-EVAL board:

Supported Features

The gd32f450i_eval board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Serial Port

The GD32F450I-EVAL board has one serial communication port. The default port is USART0 with TX connected at PA9 and RX at PA10.

Programming and Debugging

The gd32f450i_eval board supports the runners and associated west commands listed below.

flash debug

Before programming your board make sure to configure boot and serial jumpers as follows:

  • J2/3: Select 2-3 for both (boot from user memory)

  • J5: Select 1-2 position (labeled as USART0)
