PIC32CM JH01 Curiosity Nano+ Touch Evaluation Kit

Overview

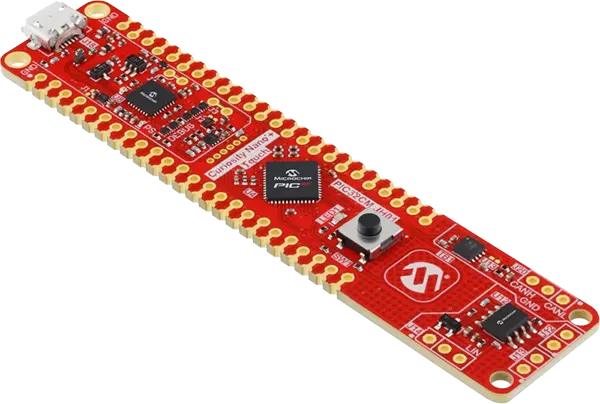

The PIC32CM JH01 Curiosity Nano+ Touch Evaluation Kit (EV29G58A) is a hardware platform that contains a PIC32CM5164JH01048 microcontroller (MCU). The Curiosity Nano+ Touch Evaluation Kit provides easy access to the MCU features and can develop custom applications.

Hardware

  • PIC32CM5164JH01048 MCU

  • Arm® Cortex®-M0+ based MCU

  • One yellow user LED

  • One mechanical user switch

  • One user touch button

  • CAN interface

  • LIN interface

  • USB for debugger

    • Can be used for powering the board

    • Must be used to program, or debug, the board

  • On-board nano debugger (nEDBG)

    • One green power/status LED

    • Programming and debugging

    • Communications Device Class (CDC) virtual COM port

    • One logic analyzer DGI GPIO

    • The target device is programmed and debugged by the on-board Nano debugger; no external programmer, or debugging tool, is required

  • Adjustable target voltage

    • MIC5353 LDO regulator controlled by the on-board debugger

    • 1.7V to 3.6V output voltage

    • 500-mA maximum output current (limited by ambient temperature and output voltage)

Supported Features

The pic32cm_jh01_cnano board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Connections and IOs

The PIC32CM JH01 Curiosity Nano User Guide has detailed information about board connections.

Programming & Debugging

The pic32cm_jh01_cnano board supports the runners and associated west commands listed below.

flash debug

Setting Up the Debug Interface

PyOCD Setup

  1. Install Device Pack

    • Add support for the PIC32CM family devices using the following command:

      pyocd pack install pic32cm

  2. Verify Device Support

    • Confirm that the target is recognized:

      pyocd list --targets

    • You should see an entry similar to:

      pic32cm5164jh01048        Microchip                PIC32CM5164JH01048           PIC32CM-JH   pack

  3. Connect the Board

    • Connect the DEBUG USB(J18) port on the board to your host machine.

    • This connection power up the board and provides access to the on-board Embedded Debugger (EDBG), which enables programming and debugging of the target microcontroller through PyOCD.

Building and Flashing the Application

  1. Build the Application

    You can build a sample Zephyr application, such as Blinky, using the west tool. Run the following commands from your Zephyr workspace:

    west build -b pic32cm_jh01_cnano -p -s samples/basic/blinky

    This will build the Blinky application for the pic32cm_jh01_cnano board.

  2. Flash the Device

    Once the build completes, flash the firmware using:

    west flash

  3. Observe the Result

    After flashing, LED1 on the board should start blinking, indicating that the application is running successfully.

References

PIC32CM JH01 Product Page:

https://www.microchip.com/en-us/product/PIC32CM5164JH01048

PIC32CM JH01 Curiosity Nano evaluation kit Page:

https://www.microchip.com/en-us/development-tool/ev29g58a
