FRDM-MCXA577
Overview

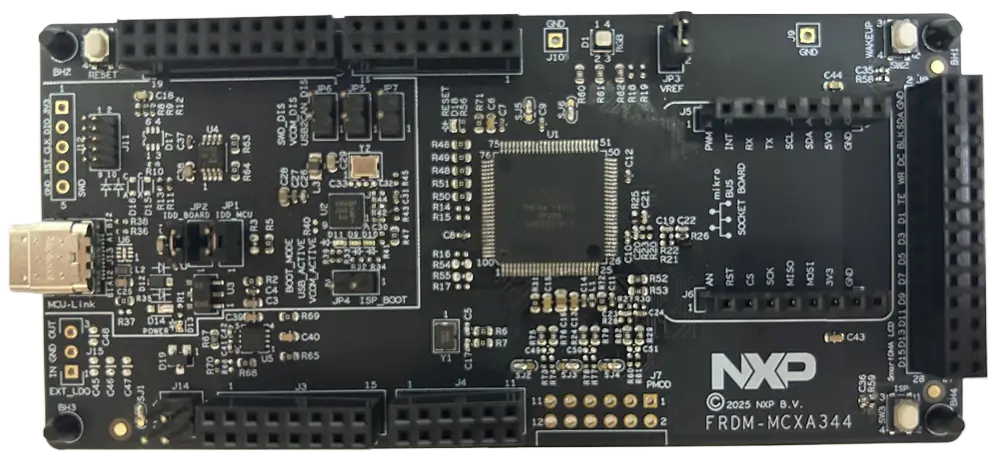

FRDM-MCXA577 is a compact and scalable development board for rapid prototyping of MCX A577 MCUs. They offer industry standard headers for easy access to the MCUs input/output (I/O), integrated open-standard serial interfaces, external flash memory and an onboard MCU-Link debugger.
Hardware
MCX-A577 Arm Cortex-M33 microcontroller running at 12MHz
2048KB dual-bank on chip Flash
640 KB RAM
2x FlexCAN with FD, 1x RGB LED, 3x SW buttons
On-board MCU-Link debugger with CMSIS-DAP
Arduino Header, SmartDMA/Camera Header, mikroBUS
For more information about the MCX-A577 SoC and FRDM-MCXA577 board, see:
Supported Features
The frdm_mcxa577 board supports the hardware features listed below.
- on-chip / on-board
- Feature integrated in the SoC / present on the board.
- 2 / 2
-
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files. -
vnd,foo -
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.
Shields for Supported Features
Some features in the table above are tested with Zephyr shields. These shields are tested on this board:
NXP LCD_PAR_S035 TFT LCD Module - supports the Display interface. This board uses the MIPI_DBI interface of the shield, connected to the FlexIO on-chip peripheral.
Connections and IOs
The MCX-A577 SoC has 5 gpio controllers and has pinmux registers which can be used to configure the functionality of a pin.
Name |
Function |
Usage |
|---|---|---|
PIO0_2 |
UART |
UART RX |
PIO0_3 |
UART |
UART TX |
System Clock
The MCX-A577 SoC is configured to use FRO LF running at 12MHz as a source for the system clock.
Serial Port
The FRDM-MCXA577 SoC has 6 LPUART interfaces for serial communication. LPUART0 is configured as UART for the console.
Programming and Debugging
The frdm_mcxa577 board supports the runners and associated west commands listed below.
| flash | debug |
|---|
Build and flash applications as usual (see Building an Application and Run an Application for more details).
Configuring a Debug Probe
A debug probe is used for both flashing and debugging the board. This board is configured by default to use the MCU-Link CMSIS-DAP Onboard Debug Probe.
Using LinkServer
Linkserver is the default runner for this board, and supports the factory
default MCU-Link firmware. Follow the instructions in
MCU-Link CMSIS-DAP Onboard Debug Probe to reprogram the default MCU-Link
firmware. This only needs to be done if the default onboard debug circuit
firmware was changed. To put the board in ISP mode to program the firmware,
short jumper JP4.
Using J-Link
There are two options. The onboard debug circuit can be updated with Segger
J-Link firmware by following the instructions in
MCU-Link JLink Onboard Debug Probe.
To be able to program the firmware, you need to put the board in ISP mode
by shortening the jumper JP4.
The second option is to attach a J-Link External Debug Probe to the
10-pin SWD connector (J11) of the board. Additionally, the jumper JP6 must
be shorted.
For both options use the -r jlink option with west to use the jlink runner.
west flash -r jlink
Configuring a Console
Connect a USB cable from your PC to J13, and use the serial terminal of your choice (minicom, putty, etc.) with the following settings:
Speed: 115200
Data: 8 bits
Parity: None
Stop bits: 1
Flashing
Here is an example for the Hello World application.
# From the root of the zephyr repository
west build -b frdm_mcxa577 samples/hello_world
west flash
Open a serial terminal, reset the board (press the RESET button), and you should see the following message in the terminal:
*** Booting Zephyr OS build v3.6.0-4478-ge6c3a42f5f52 ***
Hello World! frdm_mcxa577/mcxa577
Debugging
Here is an example for the Hello World application.
# From the root of the zephyr repository
west build -b frdm_mcxa577/mcxa577 samples/hello_world
west debug
Open a serial terminal, step through the application in your debugger, and you should see the following message in the terminal:
*** Booting Zephyr OS build v3.6.0-4478-ge6c3a42f5f52 ***
Hello World! frdm_mcxa577/mcxa577
Troubleshooting
Using Segger SystemView and RTT
Note that when using SEGGER SystemView or RTT with this SOC, the RTT control
block address must be set manually within SystemView or the RTT Viewer. The
address provided to the tool should be the location of the _SEGGER_RTT
symbol, which can be found using a debugger or by examining the zephyr.map
file output by the linker.
The RTT control block address must be provided manually because this SOC supports ECC RAM. If the SEGGER tooling searches the ECC RAM space for the control block a fault will occur, provided that ECC is enabled and the RAM segment being searched has not been initialized to a known value.
