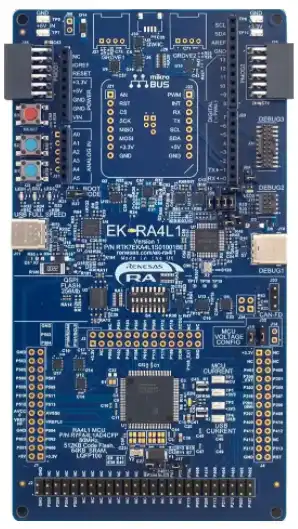

RA4L1 Evaluation Kit

Overview

The Renesas RA4L1 group of 32-bit microcontrollers (MCUs) uses the high-performance Arm Cortex®-M33 core. Share a common set of Renesas peripherals to facilitate design scalability and efficient platform-based product development.

The MCU in this series incorporates a high-performance Arm Cortex®-M33 core running up to 80 MHz with the following features:

MCU Native Pin Access

  • R7FA4L1BD4CFP MCU (referred to as RA MCU)

  • 80 MHz, Arm® Cortex®-M33 core

  • 512 KB Code Flash, 64 KB SRAM

  • 100-pin LQFP package

System Control and Ecosystem Access

  • USB Full Speed Host and Device (USB-C connector)

  • Three 5 V input sources

    • USB (Debug, Full Speed)

    • External power supply (using surface mount clamp test points and power input vias)

  • Three Debug modes

    • Debug on-board (SWD)

    • Debug in (SWD)

    • Debug out (SWD, SW0 and JTAG)

  • User LEDs and buttons

    • Three User LEDs (red, blue, green)

    • Power LED (white) indicating availability of regulated power

    • Debug LED (yellow) indicating the debug connection

    • Two User buttons

    • One Reset button

  • Five most popular ecosystems expansions

    • 1 Seeed Grove® system (I3C) connector

    • 1 Seeed Grove® system (I2C/Analog) connector

    • 2 Digilent PmodTM (SPI, UART and I2C) connectors

    • ArduinoTM (Uno R3) connector

    • MikroElektronikaTM mikroBUS connector

  • MCU boot configuration jumper

Special Feature Access

  • 256 Mb (32 MB) External QUAD-SPI Flash

  • CAN FD (3-pin header)

  • Segment LCD Board Interface (50-pin header)

Hardware

Detailed hardware features can be found at:

Debug on-board:

  • Connector Used: USB-C (J10)

Debug Modes

J6

J6-A

J8

J9

J29

Debug on-board

Open

Open

Jumper on pins 1-2

Open

Jumpers on pins 1-2, 3-4, 5-6, 7-8

Supported Features

The ek_ra4l1 board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Programming and Debugging

The ek_ra4l1 board supports the runners and associated west commands listed below.

flash debug

Applications for the ek_ra4l1 board configuration can be built, flashed, and debugged in the usual way. See Building an Application and Run an Application for more details on building and running.

Flashing

Program can be flashed to EK-RA4L1 via the on-board SEGGER J-Link debugger. SEGGER J-link’s drivers are available at https://www.segger.com/downloads/jlink/

To flash the program to board

  1. Connect to J-Link OB via USB port to host PC

  2. Make sure J-Link OB jumper is in default configuration as describe in EK-RA4L1 - User’s Manual

  3. Execute west command

west flash -r jlink
