FRDM-iMXRT1186

FRDM-iMXRT1186

Overview

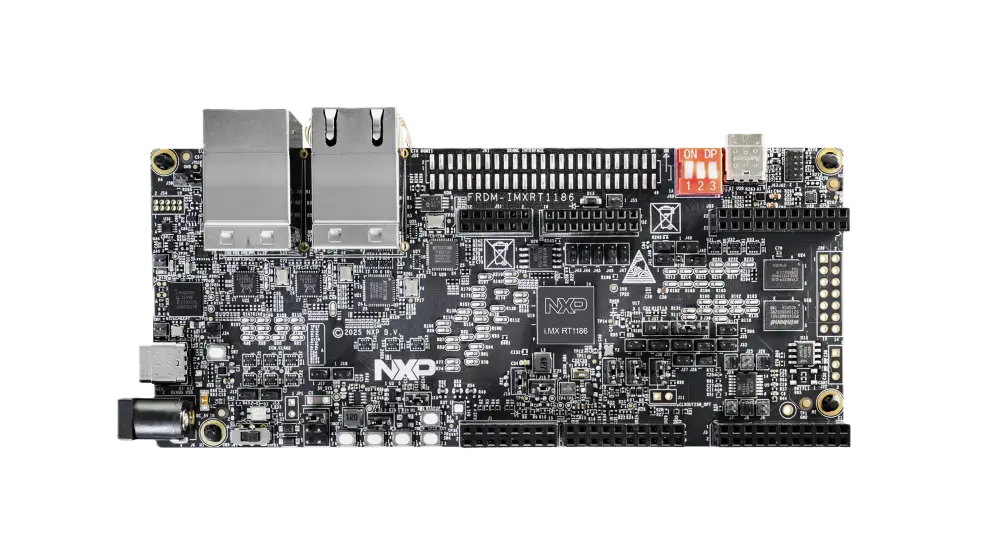

NXP FRDM-IMXRT1186 is a cost-effective development board based on NXP’s i.MX RT1186 crossover MCU, combining high performance with real-time capabilities. Easy I/O access supports expansion boards for fast prototyping and rapid evaluation of Programmable Logic Controllers, Remote IOs, motor control and other industrial automation applications.

Hardware

  • i.MX RT1186 Crossover Processor:

    • 800 MHz Arm Cortex-M7 core

    • 300 MHz Arm Cortex-M33 core

    • First real-time microcontroller (MCU) with an integrated Gbps time-sensitive network (TSN) switch supporting multiple protocols bridging communications between existing systems and Industry 4.0

    • First crossover MCU with an integrated EdgeLock® Secure Enclave

    • Up to 1.5 MB SRAM (ECC protected) with 512 KB of TCM for Arm Cortex-M7 and 256 KB of TCM for Arm Cortex-M33

  • Board Memory

    • 256 Mbit HyperRAM memory

    • 512 Mbit HyperFlash

    • 128 Mbit QSPI Flash

  • Connectivity

    • 2x Ethernet (10/100/1000M) connectors for TSN switch

    • 2x Ethernet (10/100M) connectors for EtherCAT or TSN switch

    • 1x Type-C USB OTG connector

    • 1x CAN transceivers

  • Debug Capabilities

    • JTAG connector

    • On-board MCU-Link debugger

  • Expansion Connectors

    • ARDUINO® UNO R3 header

    • FRDM header

    • FlexSPI Follower header

    • SRAMC header

    • Motor header

For more information about the i.MX RT1186 SoC and FRDM-iMXRT1186 board, see:

Board Variants

This board has three variants available:

  • frdm_imxrt1186/mimxrt1186/cm33: Runs on the Cortex-M33 core, using internal SRAM and Flash. This is the default bootable core.

  • frdm_imxrt1186/mimxrt1186/cm7: Runs on the Cortex-M7 core, using internal SRAM and Flash. Must be started by the CM33 core.

  • frdm_imxrt1186/mimxrt1186/cm7/extmem: Runs on the Cortex-M7 core, using external HyperRAM for zephyr,sram and external HyperFlash for zephyr,flash. This variant is provided for applications that require more RAM or Flash than available in the internal memory. ITCM and DTCM remain available for time-critical code and data.

Note

When using the extmem variant, external memory is initialized through J-Link debug scripts to ensure proper configuration before use.

Supported Features

The FRDM-iMXRT1186 board is a cost-effective development platform. NXP considers the MIMXRT1180-EVK as the superset board for the i.MX RT118x family of MCUs. The MIMXRT1180-EVK is the focus for NXP’s Full Platform Support for Zephyr, to better enable the entire RT118x family. NXP prioritizes enabling the MIMXRT1180-EVK with new support for Zephyr features. Some features may be limited or unavailable on the FRDM-iMXRT1186 compared to the MIMXRT1180-EVK.

The frdm_imxrt1186 board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Connections and I/Os

The i.MX RT1186 SoC has multiple GPIO controllers. The following pins are used by the board for the default configuration:

Name

Function

Usage

GPIO_AON_08

LPUART1_TX

UART Console TX (CM33)

GPIO_AON_09

LPUART1_RX

UART Console RX (CM33)

GPIO_AD_13

LPUART3_TX

UART Console TX (CM7)

GPIO_AD_14

LPUART3_RX

UART Console RX (CM7)

GPIO2_IO09

GPIO

Red LED

GPIO2_IO11

GPIO

Green LED

GPIO3_IO07

GPIO

Blue LED

GPIO4_IO12

GPIO

User Button SW4

GPIO_AD_15

ADC

ADC1 Channel 1

GPIO_AD_16

ADC

ADC1 Channel 0

System Clock

The i.MX RT1186 SoC is configured to use SysTick as the system clock source. The Cortex-M33 core can run up to 300 MHz, and the Cortex-M7 core can run up to 800 MHz.

ELE Active Timer Requirement

The RT1180 platform requires periodic communication with the EdgeLock Enclave (ELE) to prevent system reset. According to the RT1180 System Reference Manual (SRM) section 3.11 “ELE active timer”, the ELE must be pinged at least once every 24 hours.

Zephyr implements this requirement using a software timer that automatically pings the ELE every 23 hours (instead of 24 hours) to account for potential clock inaccuracies. This is transparent to the application and requires no user intervention.

For more details, refer to the RT1180 SRM section 3.11.

ITCM and DTCM

If placing zephyr,flash in ITCM or zephyr,sram in DTCM, the property zephyr,memory-region should be deleted from the memory device node. For example, this overlay moves the CM33 zephyr,sram to DTCM:

boards/nxp/frdm_imxrt1186/cm33_sram_dtcm.overlay

Ethernet

NETC Ethernet driver supports to manage the Physical Station Interface (PSI). NETC DSA driver supports to manage switch ports. Current DSA support is with limitation that only switch function is available without management via DSA master port. DSA master port support is TODO work.

For FRDM-iMXRT1186, the following network interfaces present:

  • swp0 and swp2: user ports which can be used.

  • swp4: DSA CPU port. Not a user port.

  • eth0: DSA conduit port. Not a user port.

Note

DHCP is expected to work on swp0 and swp2.

                +--------+                  +--------+
                | ENETC1 |                  | ENETC0 |
                |        |                  |        |
                | Pseudo |                  |  1G    |
                |  MAC   |                  |  MAC   |
                +--------+                  +--------+
                    | zero copy interface       |
+-------------- +--------+----------------+     |
|               | Pseudo |                |     |
|               |  MAC   |                |     |
|               |        |                |     |
|               | Port 4 |                |     |
|               +--------+                |     |
|           SWITCH       CORE             |     |
+--------+ +--------+ +--------+ +--------+     |
| Port 0 | | Port 1 | | Port 2 | | Port 3 |     |
|        | |        | |        | |        |     |
|  1G    | |  1G    | |  1G    | |  1G    |     |
|  MAC   | |  MAC   | |  MAC   | |  MAC   |     |
+--------+-+--------+-+--------+-+--------+     |
    |          |          |          |          |
NETC External Interfaces (4 switch ports, 1 end-point port)

Serial Port

The i.MX RT1186 SoC has 8 LPUART peripherals. LPUART1/3 is configured for the console and is available on the Debug USB connector.

Programming and Debugging

The frdm_imxrt1186 board supports the runners and associated west commands listed below.

flash debug

Build and flash applications as usual (see Building an Application and Run an Application for more details).

Configuring a Debug Probe

A debug probe is used for both flashing and debugging the board. This board is configured by default to use the MCU-Link CMSIS-DAP Onboard Debug Probe.

When debugging the CM33 core, ensure jumper J60 is set to 1:OFF 2:OFF 3:ON.

When debugging the CM7 core, ensure jumper J60 is set to 1:ON 2:OFF 3:OFF.

Using LinkServer

LinkServer is the default debug host tool for this board and requires no additional configuration.

Configuring a Console

Connect a USB Type-C cable from your PC to J23, and use the serial terminal of your choice(minicom, putty, etc.) with the following settings:

  • Speed: 115200

  • Data: 8 bits

  • Parity: None

  • Stop bits: 1

Flashing

Here is an example for the Hello World application for the CM33 core.

# From the root of the zephyr repository
west build -b frdm_imxrt1186/mimxrt1186/cm33 samples/hello_world
west flash

Open a serial terminal, reset the board (press the RESET button SW2), and you should see the following message in the terminal: (Note: When using LPUART3 as serial port, jumper J34 must be removed)

*** Booting Zephyr OS build v4.x.x ***
Hello World! frdm_imxrt1186/mimxrt1186/cm33
Note: By default, the CM33 core is the bootable core. The CM7 core cannot be directly

booted and must be started by the CM33 core.

Debugging

Here is an example for the Hello World application.

# From the root of the zephyr repository
west build -b frdm_imxrt1186/mimxrt1186/cm33 samples/hello_world
west debug

Open a serial terminal, step through the application in your debugger, and you should see the following message in the terminal:

*** Booting Zephyr OS build v4.x.x ***
Hello World! frdm_imxrt1186/mimxrt1186/cm33
