PIC32CX SG41 Curiosity Ultra

Overview

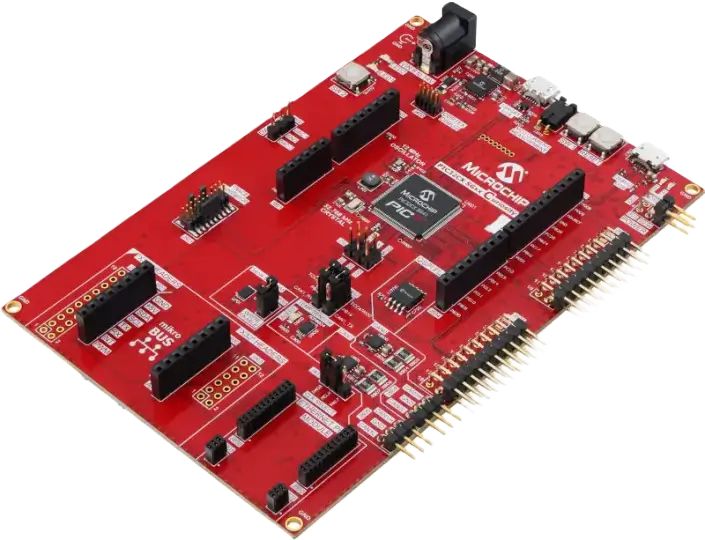

The PIC32CX SG41 Curiosity Ultra evaluation kit is a hardware platform to evaluate the Microchip PIC32CX SG41 microcontrollers, and the evaluation kit part number is EV06X38A. The evaluation kit offers a set of features that enables the PIC32CX SG41 users to get started with the PIC32CX SG41 peripherals, and to obtain an understanding of how to integrate the device in their own design.

Hardware

PIC32CX1025SG41128 microcontroller
One mechanical reset button
Two mechanical programmable buttons
Two user LEDs
32.768 kHz crystal
12 MHz oscillator
USB interface, Host or Device
64 Mbit Quad SPI Flash
AT24MAC402 Serial EEPROM with EUI-48™ MAC address
Ethernet 10/100 Mbps
- RMII Interface with modular PHY Header
SD/SDIO card connector
Two CAN interfaces with on-board transceivers
I²C-based temperature sensor
DAC Output Header
mikroBUS header connector
Arduino Uno header connectors
CoreSight 10 connector
- 10-pin Cortex® Debug header (SWD)
CoreSight 20 connector
- 20-pin Cortex Debug + ETM Connector (SWD and 4-bit Trace)
Virtual COM port (CDC)
USB powered
Power Header and Barrel Jack connector for external power sources

Supported Features

The pic32cx_sg41_cult board supports the hardware features listed below.

on-chip / on-board: Feature integrated in the SoC / present on the board.
2 / 2: Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo: Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Connections and IOs

The PIC32CX SG41 Curiosity Ultra User Guide has detailed information about board connections.

Programming & Debugging

The pic32cx_sg41_cult board supports the runners and associated west commands listed below.

	flash	debug

Flash Using J-Link

To flash the board using the J-Link debugger, follow the steps below:

Install J-Link Software
- Download and install the J-Link software tools from Segger.
- Make sure the installed J-Link executables (e.g., JLink, JLinkGDBServer) are available in your system’s PATH.
Connect the Board
- Connect the J32 Debug Probe to the board’s CORTEX DEBUG (J400) header.
- Connect the other end of the J32 Debug Probe to your host machine (PC) via USB.
- Connect the DEBUG USB port on the board to your host machine to power up the board.
Build the Application

You can build a sample Zephyr application, such as Blinky, using the west tool. Run the following commands from your Zephyr workspace:
```
west build -b pic32cx_sg41_cult -p -s samples/basic/blinky
```
This will build the Blinky application for the pic32cx_sg41_cult board.
Flash the Device

Once the build completes, flash the firmware using:
```
west flash
```
This uses the default jlink runner to flash the application to the board.
Observe the Result

After flashing, LED1 on the board should start blinking, indicating that the application is running successfully.

References

PIC32CX SG41 Product Page:: https://www.microchip.com/en-us/product/PIC32CX1025SG41128
PIC32CX SG41 Curiosity Ultra evaluation kit Page:: https://www.microchip.com/en-us/development-tool/EV06X38A
