SAM E54 Xplained Pro

Overview

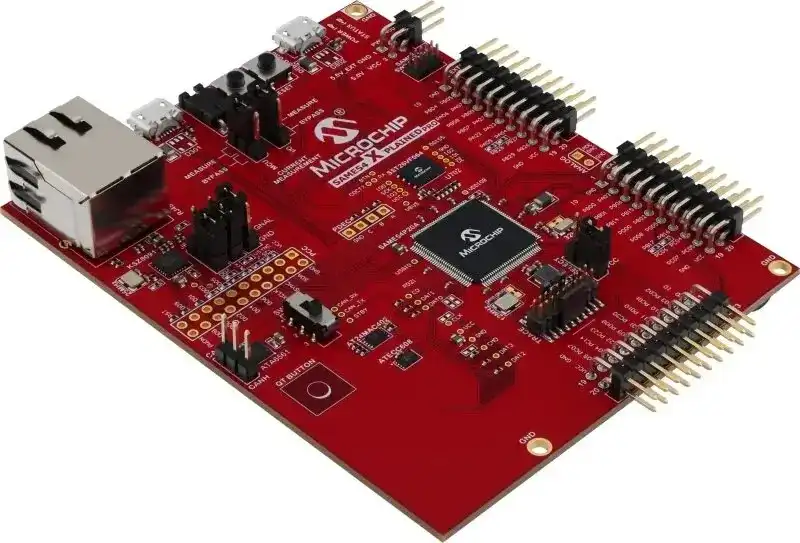

The SAM E54 Xplained Pro evaluation kit is ideal for evaluation and prototyping with the SAM E54 Cortex®-M4F processor-based microcontrollers. The kit includes Microchip’s Embedded Debugger (EDBG), which provides a full debug interface without the need for additional hardware.

Hardware

  • ATSAME54P20A ARM Cortex-M4F processor at 120 MHz

  • 32.768 kHz crystal oscillator

  • 12 MHz crystal oscillator

  • 1024 KiB flash memory and 256 KiB of RAM

  • One yellow user LED

  • One mechanical user push button

  • One reset button

  • On-board USB based EDBG unit with serial console

  • One QTouch® PTC button

  • 32 MiB QSPI Flash

  • ATECC508 CryptoAuthentication™ device

  • AT24MAC402 serial EEPROM with EUI-48™ MAC address

  • Ethernet

    • RJ45 connector with built-in magnetics

    • KSZ8091RNA PHY

    • 10Base-T/100Base-TX IEE 802.3 compliant Ethernet transceiver

  • USB interface, host, and device

  • SD/SDIO card connector

Supported Features

The sam_e54_xpro board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Connections and IOs

The SAM E54 Xplained Pro User Guide has detailed information about board connections.

Programming and Debugging

The SAM E54 Xplained Pro features an on-board Microchip Embedded Debugger (EDBG), which provides both a standard debug interface and a virtual serial port used as the Zephyr console. SERCOM2 of the ATSAME54P20A MCU is configured as a USART for console output.

  1. Connect the board to your host machine using the debug USB port.

  2. Open a terminal and start a serial console on the corresponding port. On Linux, this is typically /dev/ttyACM0. For example:

    $ minicom -D /dev/ttyACM0 -o

    The -o option tells minicom not to send the modem initialization string. Connection should be configured as follows:

    • Speed: 115200

    • Data: 8 bits

    • Parity: None

    • Stop bits: 1

  3. Build and flash the Zephyr hello_world sample application:

    west build -b sam_e54_xpro samples/hello_world
west flash

  4. Observe output on the terminal. If everything is set up correctly, you should see:

    Hello World! same_54_xpro

References

SAM E54 Product Page:

https://www.microchip.com/en-us/product/ATSAME54P20A

SAM E54 Xplained Pro evaluation kit Page:

https://www.microchip.com/en-us/development-tool/ATSAME54-XPRO
