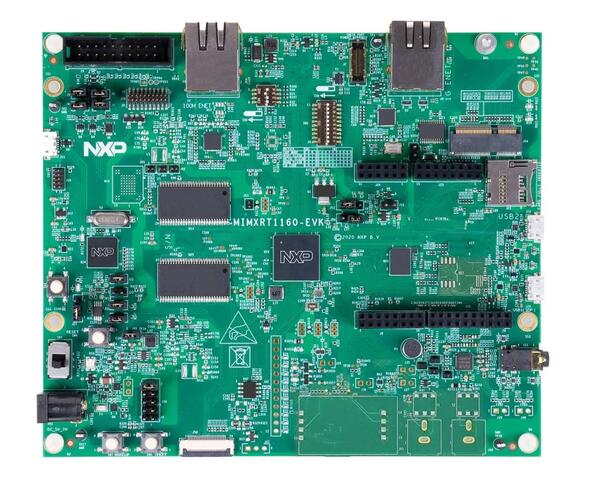

MIMXRT1160-EVK

Overview

The dual core i.MX RT1160 runs on the Cortex-M7 core at 600 MHz and on the Cortex-M4 at 240 MHz. The i.MX RT1160 MCU offers support over a wide temperature range and is qualified for consumer, industrial and automotive markets.

Hardware

  • MIMXRT1166DVM6A MCU

    • 600MHz Cortex-M7 & 240Mhz Cortex-M4

    • 2MB SRAM with 512KB of TCM for Cortex-M7 and 256KB of TCM for Cortex-M4

  • Memory

    • 512 Mbit SDRAM

    • 128 Mbit QSPI Flash

    • 512 Mbit Octal Flash

    • TF socket for SD card

  • Display

    • MIPI LCD connector

  • Ethernet

    • 10/100 Mbit/s Ethernet PHY

    • 10/100/1000 Mbit/s Ethernet PHY

  • USB

    • USB 2.0 OTG connector

    • USB 2.0 host connector

  • Audio

    • 3.5 mm audio stereo headphone jack

    • Board-mounted microphone

    • Left and right speaker out connectors

  • Power

    • 5 V DC jack

  • Debug

    • JTAG 20-pin connector

    • OpenSDA with DAPLink

  • Sensor

    • MIPI camera sensor connector

  • Expansion port

    • Arduino interface

  • CAN bus connector

For more information about the MIMXRT1160 SoC and MIMXRT1160-EVK board, see these references:

External Memory

This platform has the following external memories:

Device

Controller

Status

W9825G6KH

SEMC

Enabled via device configuration data block, which sets up SEMC at boot time

IS25WP128

FLEXSPI

Enabled via flash configuration block, which sets up FLEXSPI at boot time.

Supported Features

The mimxrt1160_evk board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Note

For additional features not yet supported, please also refer to the MIMXRT1170-EVK , which is the superset board in NXP’s i.MX RT11xx family. NXP prioritizes enabling the superset board with NXP’s Full Platform Support for Zephyr. Therefore, the mimxrt1170_evk board may have additional features already supported, which can also be re-used on this mimxrt1160_evk board:

Shields for Supported Features

Some features in the table above are tested with Zephyr shields. These shields are tested on this board:

Connections and I/Os

The MIMXRT1160 SoC has six pairs of pinmux/gpio controllers.

Name

Function

Usage

WAKEUP

GPIO

SW7

GPIO_AD_04

GPIO

LED

GPIO_AD_24

LPUART1_TX

UART Console

GPIO_AD_25

LPUART1_RX

UART Console

GPIO_LPSR_00

CAN3_TX

flexcan

GPIO_LPSR_01

CAN3_RX

flexcan

GPIO_AD_29

SPI1_CS0

spi

GPIO_AD_28

SPI1_CLK

spi

GPIO_AD_30

SPI1_SDO

spi

GPIO_AD_31

SPI1_SDI

spi

GPIO_AD_08

LPI2C1_SCL

i2c

GPIO_AD_09

LPI2C1_SDA

i2c

GPIO_LPSR_05

LPI2C5_SCL

i2c

GPIO_LPSR_04

LPI2C5_SDA

i2c

GPIO_AD_04

FLEXPWM1_PWM2

pwm

Dual Core samples

Core

Boot Address

Comment

Cortex M7

0x30000000[630K]

primary core

Cortex M4

0x20020000[96k]

boots from OCRAM

Memory

Address[Size]

Comment

flexspi1

0x30000000[16M]

Cortex M7 flash

sdram0

0x80030000[64M]

Cortex M7 ram

ocram

0x20020000[512K]

Cortex M4 “flash”

sram1

0x20000000[128K]

Cortex M4 ram

ocram2

0x200C0000[512K]

Mailbox/shared memory

Only the first 16K of ocram2 has the correct MPU region attributes set to be used as shared memory

System Clock

The MIMXRT1160 SoC is configured to use SysTick as the system clock source, running at 600MHz. When targeting the M4 core, SysTick will also be used, running at 240MHz

When power management is enabled, the 32 KHz low frequency oscillator on the board will be used as a source for the GPT timer to generate a system clock. This clock enables lower power states, at the cost of reduced resolution

Serial Port

The MIMXRT1160 SoC has 12 UARTs. One is configured for the console and the remaining are not used.

Programming and Debugging

The mimxrt1160_evk board supports the runners and associated west commands listed below.

flash debug

Build and flash applications as usual (see Building an Application and Run an Application for more details).

Building a Dual-Core Image

Dual core samples load the M4 core image from flash into the shared ocram region. The M7 core then sets the M4 boot address to this region. The only sample currently enabled for dual core builds is the openamp sample. To flash a dual core sample, the M4 image must be flashed first, so that it is written to flash. Then, the M7 image must be flashed. The openamp sysbuild sample will do this automatically by setting the image order.

The secondary core can be debugged normally in single core builds (where the target is mimxrt1160_evk/mimxrt1166/cm4). For dual core builds, the secondary core should be placed into a loop, then a debugger can be attached (see AN13264, section 4.2.3 for more information)

Launching Images Targeting M4 Core

If building targeting the M4 core, the M7 core must first run code to launch the M4 image, by copying it into the ocram region then kicking off the M4 core. When building using sysbuild targeting the M4 core, a minimal “launcher” image will be built and flashed to the M7 core, which loads and kicks off the M4 core. Therefore when developing an application intended to run standalone on the M4 core, it is recommended to build with sysbuild, like so:

# From the root of the zephyr repository
west build -b mimxrt1160_evk/mimxrt1166/cm4 --sysbuild samples/hello_world
west flash

If desired, this behavior can be disabled by building with -DSB_CONFIG_SECOND_CORE_MCUX_LAUNCHER=n

Configuring a Debug Probe

A debug probe is used for both flashing and debugging the board. The on-board debugger OpenSDA DAPLink Onboard Debug Probe works with the LinkServer runner, or can be reprogrammed with JLink firmware.

Using LinkServer

Install the LinkServer Debug Host Tools and make sure they are in your search path. LinkServer works with the default CMSIS-DAP firmware included in the on-board debugger.

Configuring a Console

Regardless of your choice in debug probe, we will use the OpenSDA microcontroller as a usb-to-serial adapter for the serial console. Check that jumpers J5 and J8 are on (they are on by default when boards ship from the factory) to connect UART signals to the OpenSDA microcontroller.

Connect a USB cable from your PC to J11.

Use the following settings with your serial terminal of choice (minicom, putty, etc.):

  • Speed: 115200

  • Data: 8 bits

  • Parity: None

  • Stop bits: 1

Flashing

Here is an example for the Hello World application.

Before power on the board, make sure SW1 is set to 0001b

# From the root of the zephyr repository
west build -b mimxrt1160_evk/mimxrt1166/cm7 samples/hello_world
west flash

Power off the board, and change SW1 to 0010b. Then power on the board and open a serial terminal, reset the board (press the SW4 button), and you should see the following message in the terminal:

***** Booting Zephyr OS v2.6.0-xxxx-xxxxxxxxxxxxx *****
Hello World! mimxrt1160_evk

Debugging

Here is an example for the Hello World application.

# From the root of the zephyr repository
west build -b mimxrt1160_evk/mimxrt1166/cm7 samples/hello_world
west debug

Open a serial terminal, step through the application in your debugger, and you should see the following message in the terminal:

***** Booting Zephyr OS v2.4.0-xxxx-xxxxxxxxxxxxx *****
Hello World! mimxrt1160_evk
