Sparkfun RP2040 mikroBUS Development Board

Overview

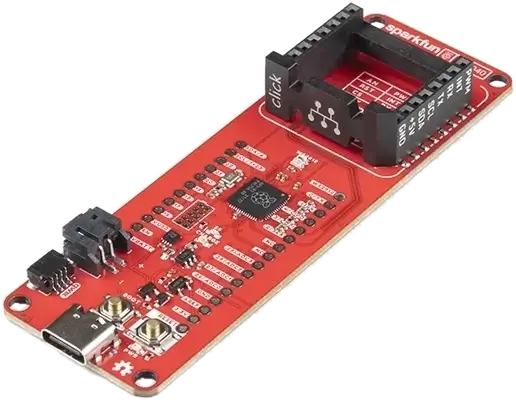

The SparkFun RP2040 mikroBUS Development Board [1] is a low-cost, high performance platform with flexible digital interfaces. It is equipped with an RP2040 SoC, an on-board RESET and BOOTSEL button, a blue user LED for status or test, a WS2812 addressable LED, a USB connector, a microSD card slot, a mikroBUS socket, a Qwiic connector, a JST single cell battery connector with a charging circuit and fuel gauge sensor and yellow LED as battery charging indicator, a Thing Plus or Feather PTH pin layout, and JTAG PTH pins. The USB bootloader allows it to be flashed without any adapter, in a drag-and-drop manner.

Hardware

  • Dual core Arm Cortex-M0+ processor running up to 133MHz

  • 264KB on-chip SRAM

  • 16MB on-board QSPI flash with XIP capabilities

  • 8 GPIO pins

  • 4 Analog inputs

  • 1 UART peripherals

  • 1 SPI controllers

  • 2 I2C controllers (one via Qwiic connector)

  • 16 PWM channels

  • USB 1.1 controller (host/device)

  • 8 Programmable I/O (PIO) for custom peripherals

  • 1 Watchdog timer peripheral

  • On-board digital RGB LED (WS2812)

  • On-board general purpose user LED (blue)

  • On-board charging status LED (yellow)

  • On-board power status LED (red)

  • 1 microSD card slot

  • 1 Qwiic [3] or STEMMA QT [6] connector

  • 1 mikroBUS [2] socket

  • 1 Thing Plus [4] or Feather [5] pin header

Supported Features

The sparkfun_rp2040_mikrobus board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Flash Partitioning

The 16MB QSPI flash is partitioned into the following two main blocks by default. At the beginning is a 1MB section for program code (including the 256 bytes of boot information), followed by a 15MB storage area for application data or file systems.

Pin Mapping

The peripherals of the RP2040 SoC can be routed to various pins on the board. The configuration of these routes can be modified through DTS. Please refer to the datasheet to see the possible routings for each peripheral.

Default Zephyr Peripheral Mapping:

  • UART0_TX : P0

  • UART0_RX : P1

  • SPI0_SCK : P2

  • SPI0_TX : P3

  • SPI0_RX : P4

  • SPI0_CSn : P5

  • I2C1_SDA : P6

  • I2C1_SCL : P7 & P23

  • WS2812_DI : P8 (PIO0)

  • SDIO_DAT3 : P9 (SPI1_CSn)

  • SDIO_DAT2 : P10

  • SDIO_DAT1 : P11

  • SDIO_DAT0 : P12 (SPI1_RX)

  • SDIO_CLK : P14 (SPI1_SCK)

  • SDIO_CMD : P15 (SPI1_TX)

  • BATT_ALERT : P24

  • LED_BUILTIN : P25

  • ADC0 : P26

  • ADC1 : P27

  • ADC2 : P28

  • ADC3 : P29

  • AVDD = 3V3

Programming and Debugging

The sparkfun_rp2040_mikrobus board supports the runners and associated west commands listed below.

flash debug

Flashing

Using JTAG

The RP2040 mikroBUS Development Board does make the SWD pins available on JTAG PTH pins in the middle of the board. You can solder a 2x5 1.27mm IDC pin header here, and use a JTAG/SWD debugger.

Using UF2

You can also flash the RP2040 mikroBUS Development Board with a UF2 file. By default, building an app for this board will generate a build/zephyr/zephyr.uf2 file. If the RP2040 mikroBUS Development Board is powered on with the BOOTSEL button pressed, it will appear on the host as a mass storage device. The UF2 file should be copied to the device, which will flash the RP2040 mikroBUS Development Board.
