CC2340R5 LaunchPad
Overview

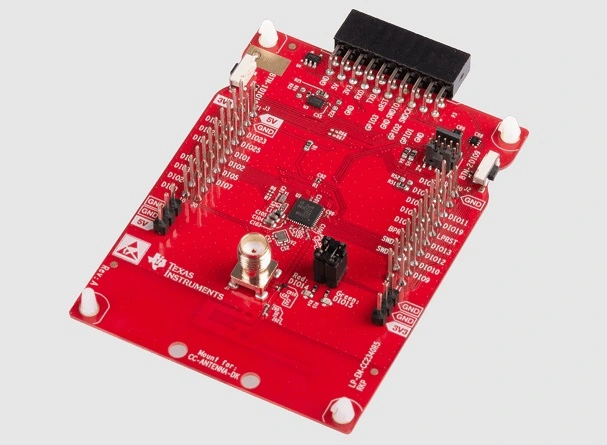

The Texas Instruments CC2340R5 LaunchPad™ (LP_EM_CC2340R5) is a development kit for the SimpleLink™ multi-Standard CC2340R5 wireless MCU.
See the TI CC2340R5 LaunchPad Product Page for details.
Hardware
The CC2340R5 LaunchPad™ development kit features the CC2340R5 wireless MCU. The board is equipped with two LEDs, two push buttons and BoosterPack connectors for expansion.
The CC2340R5 wireless MCU has a 48 MHz Arm® Cortex®-M0+ SoC and an integrated 2.4 GHz transceiver supporting multiple protocols including Bluetooth® Low Energy and IEEE® 802.15.4.
See the TI CC2340R5 Product Page for additional details.
Supported Features
The lp_em_cc2340r5 board supports the hardware features listed below.
- on-chip / on-board
- Feature integrated in the SoC / present on the board.
- 2 / 2
-
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files. -
vnd,foo -
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.
Connections and IOs
All I/O signals are accessible from the BoosterPack connectors. Pin function aligns with the LaunchPad standard.
Pin |
Function |
Usage |
|---|---|---|
DIO0 |
GPIO |
|
DIO1 |
ANALOG_IO |
A4 |
DIO2 |
ANALOG_IO |
A3 |
DIO5 |
ANALOG_IO |
A5 |
DIO6 |
SPI_CSN |
SPI CS |
DIO7 |
ANALOG_IO |
A0 |
DIO8 |
GPIO |
|
DIO9 |
GPIO |
Button 2 |
DIO10 |
GPIO |
Button 1 |
DIO11 |
SPI_CSN |
SPI CS |
DIO12 |
SPI_POCI |
SPI POCI |
DIO13 |
SPI_PICO |
SPI_PICO |
DIO14 |
GPIO |
Red LED |
DIO15 |
GPIO |
Green LED |
DIO18 |
SPI_CLK |
SPI CLK |
DIO19 |
GPIO |
|
DIO20 |
UART0_TX |
UART TX |
DIO21 |
GPIO |
|
DIO22 |
UART0_RX |
UART RX |
DIO23 |
ANALOG_IO |
A8 |
DIO24 |
ANALOG_IO |
A7 |
Programming and Debugging
The lp_em_cc2340r5 board supports the runners and associated west commands listed below.
| flash | debug |
|---|
The LP_EM_CC2340R5 requires an external debug probe such as the LP-XDS110 or LP-XDS110ET.
Alternatively a J-Link could be used on the J4 header, in combination with a 3.3V power supply over the pinheader. Debugging and flashing is currently only tested using a J-Link on the J4 header.
To get a console, connect an external USB to UART converter with:
TX |
DIO22 |
RX |
DIO20 |
Then you can connect to it from you PC:
$ microcom -p <tty_device>
Replace <tty_device> with the port of your USB to UART converter.
For example, /dev/ttyUSB0.
Flashing
Applications for the CC2340R5 LaunchPad board configuration can be built and
flashed in the usual way (see Building an Application and
Run an Application for more details).
Here is an example for the Hello World application.
# From the root of the zephyr repository
west build -b lp_em_cc2340r5 samples/hello_world
west flash
Debugging
You can debug an application in the usual way. Here is an example for the Hello World application.
# From the root of the zephyr repository
west build -b lp_em_cc2340r5 samples/hello_world
west debug
References
- CC2340R5 LaunchPad Quick Start Guide:
