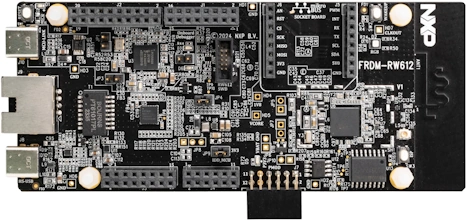

FRDM-RW612

Overview

The RW612 is a highly integrated, low-power tri-radio wireless MCU with an integrated 260 MHz ARM Cortex-M33 MCU and Wi-Fi 6 + Bluetooth Low Energy (LE) 5.3 / 802.15.4 radios designed for a broad array of applications, including connected smart home devices, gaming controllers, enterprise and industrial automation, smart accessories and smart energy.

The RW612 MCU subsystem includes 1.2 MB of on-chip SRAM and a high-bandwidth Quad SPI interface with an on-the-fly decryption engine for securely accessing off-chip XIP flash.

The advanced design of the RW612 delivers tight integration, low power and highly secure operation in a space- and cost-efficient wireless MCU requiring only a single 3.3 V power supply.

Hardware

  • 260 MHz ARM Cortex-M33, tri-radio cores for Wifi 6 + BLE 5.3 + 802.15.4

  • 1.2 MB on-chip SRAM

Supported Features

The frdm_rw612 board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Note

Power modes 1, 2 and 3 are supported when using System Power Management.

Shields for Supported Features

Some features in the table above are tested with Zephyr shields. These shields are tested on this board:

  • NXP LCD_PAR_S035 TFT LCD Module - supports the Display interface. This board uses the SPI interface of the shield, connected to the LCDIC on-chip peripheral.

Programming and Debugging

The frdm_rw612 board supports the runners and associated west commands listed below.

flash debug

Build and flash applications as usual (see Building an Application and Run an Application for more details).

Configuring a Debug Probe

A debug probe is used for both flashing and debugging the board. This board is configured by default to use the JLink Firmware.

Configuring a Console

Connect a USB cable from your PC to J10, and use the serial terminal of your choice (minicom, putty, etc.) with the following settings:

  • Speed: 115200

  • Data: 8 bits

  • Parity: None

  • Stop bits: 1

Flashing

Here is an example for the Hello World application. This example uses the J-Link Debug Host Tools as default.

# From the root of the zephyr repository
west build -b frdm_rw612 samples/hello_world
west flash

Open a serial terminal, reset the board (press the RESET button), and you should see the following message in the terminal:

***** Booting Zephyr OS v3.6.0 *****
Hello World! frdm_rw612

Debugging

Here is an example for the Hello World application. This example uses the J-Link Debug Host Tools as default.

# From the root of the zephyr repository
west build -b frdm_rw612 samples/hello_world
west debug

Open a serial terminal, step through the application in your debugger, and you should see the following message in the terminal:

***** Booting Zephyr OS zephyr-v3.6.0 *****
Hello World! frdm_rw612

SRAM Bus Access Partitioning

RW612 supports shared access of the SRAM from both the code bus and data bus. The bus used to access the SRAM is determined using two separate memory mapped address spaces. The application can configure the partitioning of the SRAM access regions by a devicetree overlay. For example, below is part of an overlay to change the whole SRAM to be used for data.

&sram_data {
     reg = <0x0 DT_SIZE_K(1216)>;
};

Wireless Connectivity Support

Fetch Binary Blobs

To support Bluetooth or Wi-Fi, frdm_rw612 requires fetching binary blobs, which can be achieved by running the following command:

west blobs fetch hal_nxp

Bluetooth

BLE functionality requires to fetch binary blobs, so make sure to follow the Fetch Binary Blobs section first.

frdm_rw612 platform supports the monolithic feature. The required binary blob <zephyr workspace>/modules/hal/nxp/zephyr/blobs/rw61x_sb_ble_a2.bin will be linked with the application image directly, forming one single monolithic image.

Wi-Fi

Wi-Fi functionality requires to fetch binary blobs, so make sure to follow the Fetch Binary Blobs section first.

frdm_rw612 platform supports the monolithic feature. The required binary blob <zephyr workspace>/modules/hal/nxp/zephyr/blobs/rw61x_sb_wifi_a2.bin will be linked with the application image directly, forming one single monolithic image.

RTC Sub-Second Counter

To use the RTC sub-second counter which is clocked at a 32kHZ rate, make the following modifications to the board hardware:

  1. Move the short on SJ21 from 1 and 2 to short 2 and 3.

  2. Move the short on SJ22 from 1 and 2 to short 2 and 3.

After this change, the ENET will stop functioning on the board.
