RA4C1 Evaluation Kit

Overview

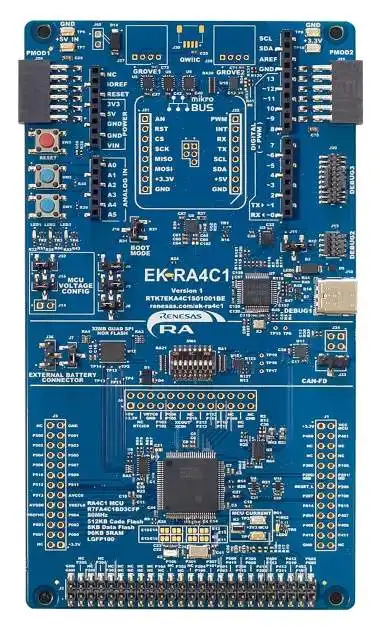

The EK-RA4C1, an Evaluation Kit for the RA4 Series, enables users to seamlessly evaluate the features of the RA4C1 MCU group. The users can use rich on-board features along with their choice of popular ecosystems add-ons to bring their big ideas to life.

The key features of the EK-RA4C1 board are categorized in three groups (consistent with the architecture of the kit) as follows:

Renesas RA4C1 Microcontroller Group

  • R7FA4C1BD3CFP MCU (referred to as RA MCU)

  • 80 MHz, Arm® Cortex®-M33 core

  • 512 KB Code Flash, 96 KB SRAM

  • 100 pins, LQFP package

  • Native pin access through 3 x 26-pin headers (not populated)

  • Tamper Detection embedded into J4

  • Segment LCD Board Interface

  • MCU current measurement points for precision current consumption measurement

  • Multiple clock sources – RA MCU oscillator and sub-clock oscillator crystals, providing precision 8.000 MHz and 32,768 Hz reference clocks. Additional low-precision clocks are available internal to the RA MCU

System Control and Ecosystem Access

  • Two 5 V input sources

    • USB (Debug)

    • External Power Supply 2-pin header (not populated)

  • Three Debug modes

    • Debug on-board (SWD)

    • Debug in (SWD)

    • Debug out (SWD, SWO and JTAG)

  • User LEDs and buttons

    • Three User LEDs (red, blue, green)

    • Power LED (white) indicating availability of regulated power

    • Debug LED (yellow) indicating the debug connection

    • Two User buttons

    • One Reset button

  • Five most popular ecosystems expansions

    • Two Seeed Grove® system (I2C/Analog) connectors (not populated)

    • SparkFun® Qwiic® connector (not populated)

    • Two Digilent PmodTM (SPI, UART and I2C) connectors

    • Arduino™ (UNO R3) connector

    • MikroElektronikaTM mikroBUS connector (not populated)

  • MCU boot configuration jumper

  • Low Voltage Mode voltage input and operation

Special Feature Access - 32 MB (256 Mb) External Quad-SPI Flash - CAN-FD (3-pin header) - External Battery Connector - Configuration Switch

Hardware

Detailed hardware features can be found at: - RA4C1 MCU: RA4C1 Group User’s Manual Hardware [2] - EK-RA4C1 board: EK-RA4C1 - User’s Manual [1]

Supported Features

The ek_ra4c1 board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Programming and Debugging

The ek_ra4c1 board supports the runners and associated west commands listed below.

flash debug

Flashing

Program can be flashed to EK-RA4C1 via the on-board SEGGER J-Link debugger. SEGGER J-link’s drivers are available at https://www.segger.com/downloads/jlink/

To flash the program to board

  1. Connect to J-Link OB via USB port to host PC

  2. Make sure J-Link OB jumper is in default configuration as describe in EK-RA4C1 - User’s Manual [1]. Note: SW4-4 needs to be set to OFF

  3. Execute west command

west flash -r jlink
