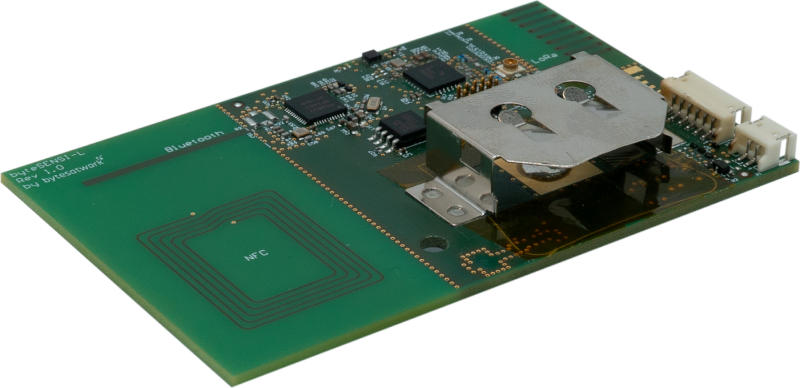

byteSENSI-L
Overview
The byteSENSI-L is a fun LoRa device based on nRF52 MCU that integrates many sensors.
Hardware
Supported Features
The bytesensi_l board supports the hardware features listed below.
- on-chip / on-board
- Feature integrated in the SoC / present on the board.
- 2 / 2
-
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files. -
vnd,foo -
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.
Connections and IOs
External Connectors
External Supply @ X1
PIN # |
Signal Name |
Function |
|---|---|---|
1 |
VBAT |
Power input instead of CR2477 battery |
2 |
GND |
Ground |
Programming Connector @ SL1
PIN # |
Signal Name |
|---|---|
1 |
VBAT |
2 |
SWDIO |
3 |
GND |
4 |
SWDCLK |
5 |
GND |
6 |
NC (SWO) |
7 |
NC (Key) |
8 |
NC |
9 |
GND |
10 |
nReset |
I2C Sensor @ X3
PIN # |
Signal Name |
Function |
|---|---|---|
1 |
VBAT |
Power out |
2 |
SCL |
I2C clock at P0.15 |
3 |
SDA |
I2C data at P0.16 |
4 |
INT |
Interrupt at P0.13 |
5 |
I2C_ADDR |
tied to VBAT |
6 |
GND |
Ground |
One Wire Sensor @ X2
PIN # |
Signal Name |
Function |
|---|---|---|
1 |
VDD |
4V8 |
2 |
IO |
One Wire |
3 |
GND |
Ground |
External BLE Antenna @ J1
External LoRa Antenna @ J2
External GPS Antenna @ J3
Programming and Debugging
The bytesensi_l board supports the runners and associated west commands listed below.
| flash | debug |
|---|
Flashing
The byteSENSI-L board can be flashed with the SEGGER JLink programmer.
You can build and flash applications in the usual way. Here is an example for the Hello World application.
west build -b bytesensi_l samples/hello_world west flash
Debugging
Debugging your application can be done with west debug.
Serial console
The byteSENSI-L board only uses Segger’s RTT console for providing serial console. There is no physical serial port available.
