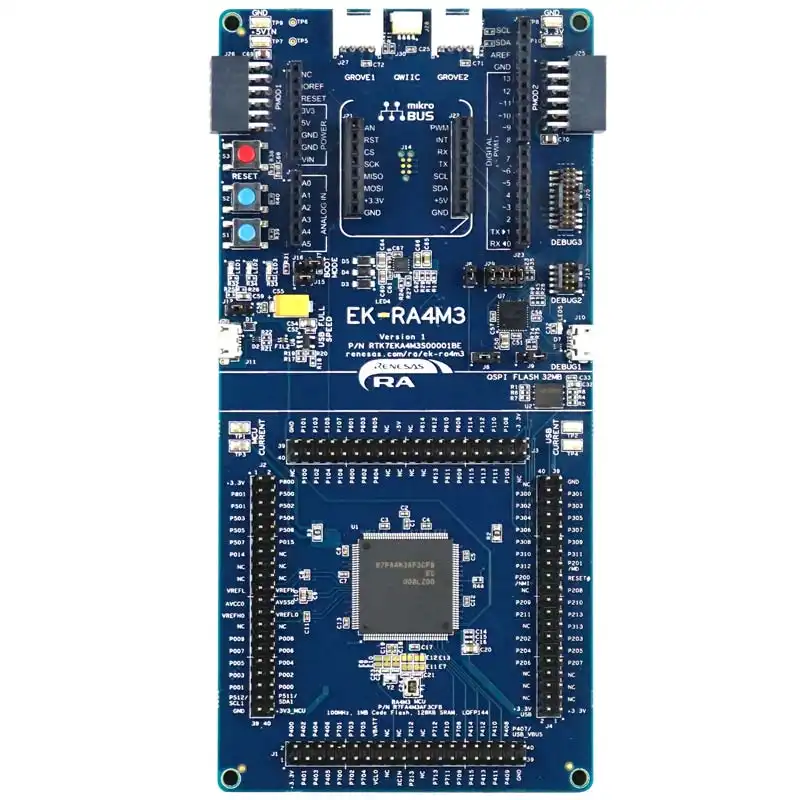

RA4M3 Evaluation Kit

Overview

The Renesas RA4M3 group of 32-bit microcontrollers (MCUs) uses the high-performance Arm® Cortex®-M33 core with TrustZone. In concert with the secure crypto engine, it offers secure element functionality. The RA4M3 is built on a highly efficient 40nm process, built on FreeRTOS—and is expandable to use other RTOSes and middleware. The RA4M3 is suitable for IoT applications requiring vast communication options, future proof security, large embedded RAM, and low active power consumption down to 119µA/MHz running the CoreMark® algorithm from Flash.

The MCU in this series incorporates a high-performance Arm Cortex®-M33 core running up to 100 MHz with the following features:

MCU Native Pin Access

  • R7FA4M3AF3CFB

  • 100-pin LQFP package

  • 100 MHz Arm® Cortex®-M33 core

  • 1 MB Code Flash, 128 KB SRAM

  • 144 pins, LQFP package

  • Native pin access through 4 x 40-pin male headers

  • MCU and USB current measurement points for precision current consumption measurement

  • Multiple clock sources - RA MCU oscillator and sub-clock oscillator crystals, providing precision 24.000 MHz and 32,768 Hz reference clock. Additional low-precision clocks are available internal to the RA MCU

System Control and Ecosystem Access

  • USB Full Speed Host and Device (micro AB connector)

  • Three 5 V input sources

    • USB (Debug, Full Speed)

    • External power supply (using surface mount clamp test points and power input vias)

  • Three Debug modes

    • Debug on-board (SWD)

    • Debug in (ETM, SWD, and JTAG)

    • Debug out (SWD)

  • User LEDs and buttons

    • Three User LEDs (red, blue, green)

    • Power LED (white) indicating availability of regulated power

    • Debug LED (yellow) indicating the debug connection

    • Two User buttons

    • One Reset button

  • Five most popular ecosystems expansions

    • 2 Seeed Grove® system (I2C/Analog) connectors

    • SparkFun® Qwiic® connector

    • 2 Digilent PmodTM (SPI and UART) connectors

    • ArduinoTM (Uno R3) connector

    • MikroElektronikaTM mikroBUS connector

  • MCU boot configuration jumper

Special Feature Access - 32 MB (256 Mb) External Quad-SPI Flash

Hardware

Detailed hardware features for the RA4M3 MCU group can be found at RA4M3 Group User’s Manual Hardware

RA4M3 MCU group feature

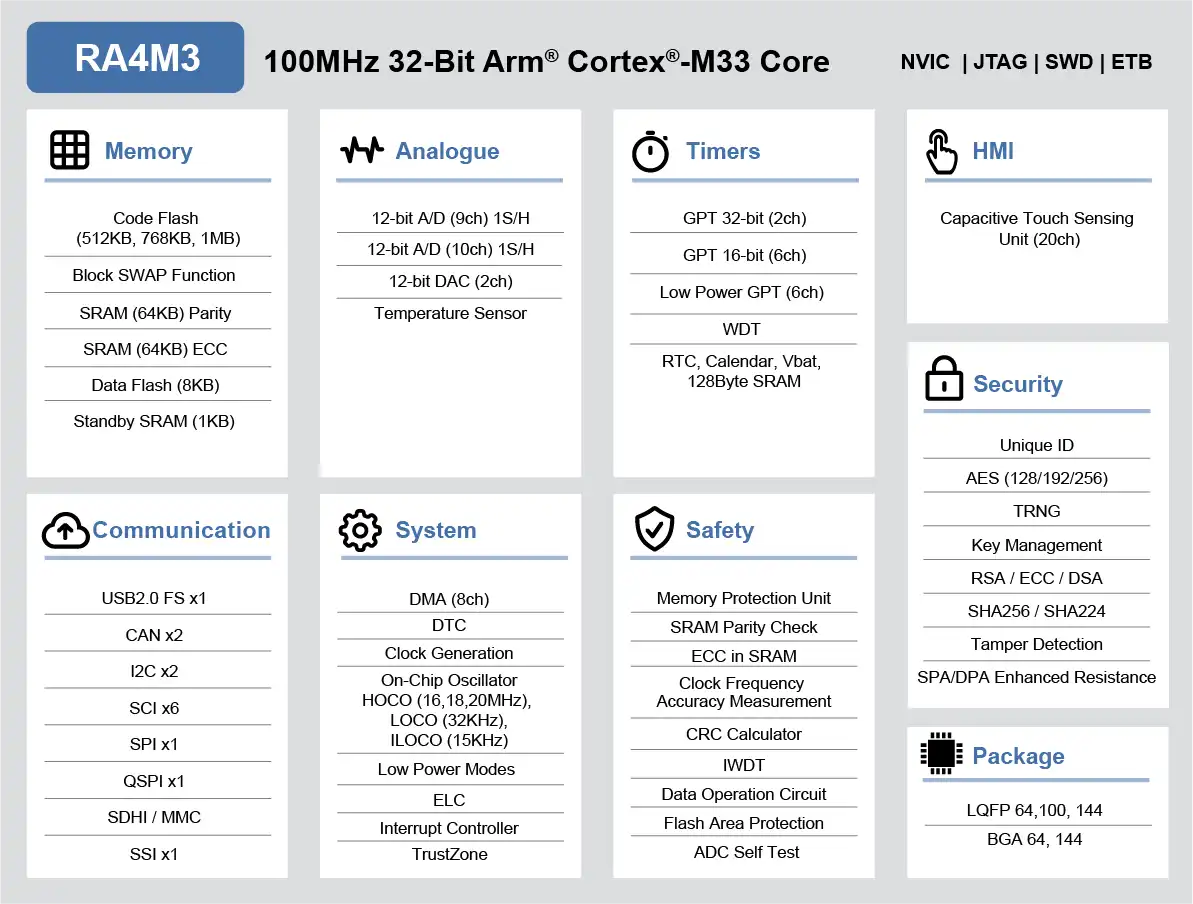

RA4M3 Block diagram (Credit: Renesas Electronics Corporation)

Detailed hardware features for the EK-RA4M3 MCU can be found at EK-RA4M3 - User’s Manual

Supported Features

The ek_ra4m3 board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Programming and Debugging

The ek_ra4m3 board supports the runners and associated west commands listed below.

flash debug

Applications for the ek_ra4m3 board target configuration can be built, flashed, and debugged in the usual way. See Building an Application and Run an Application for more details on building and running.

Flashing

Program can be flashed to EK-RA4M3 via the on-board SEGGER J-Link debugger. SEGGER J-link’s drivers are available at https://www.segger.com/downloads/jlink/

To flash the program to board

  1. Connect to J-Link OB via USB port to host PC

  2. Make sure J-Link OB jumper is in default configuration as describe in EK-RA4M3 - User’s Manual

  3. Execute west command

    west flash -r jlink

Debugging

You can use Segger Ozone (Segger Ozone Download) for a visual debug interface

Once downloaded and installed, open Segger Ozone and configure the debug project like so:

  • Target Device: R7FA4M3AD

  • Target Interface: SWD

  • Target Interface Speed: 4 MHz

  • Host Interface: USB

  • Program File: <path/to/your/build/zephyr.elf>

Note: It’s verified that we can debug OK on Segger Ozone v3.30d so please use this or later version of Segger Ozone
