RP2040-GEEK

Overview

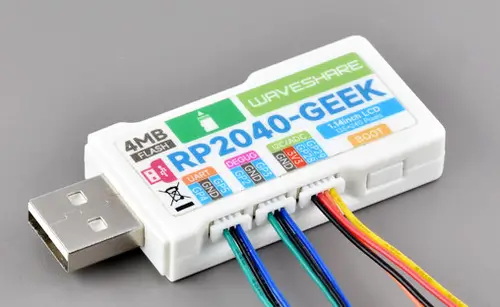

The Waveshare RP2040-GEEK Development Board [1] is based on the RP2040 microcontroller from Raspberry Pi Ltd. It has an USB A connector, a color screen, a microSD card slot and several expansion connectors.

Hardware

  • Microcontroller Raspberry Pi RP2040, with a max frequency of 133 MHz

  • Dual ARM Cortex M0+ cores

  • 264 kByte SRAM

  • 4 Mbyte QSPI flash

  • USB type A connector

  • BOOT button

  • 135x240 pixels 1.14 inch color LCD screen

  • microSD card slot

  • 4-pin I2C connector (Quiic / Stemma QT compatible)

  • 3-pin UART connector

  • 3-pin GPIO connector

Default Zephyr Peripheral Mapping

  • Connector “UART” pin GP4, UART1 TX : GPIO4

  • Connector “UART” pin GP5, UART1 RX : GPIO5

  • Connector “DEBUG” pin GP2 : GPIO2

  • Connector “DEBUG” pin GP3 : GPIO3

  • Connector “I2C/ADC” pin GP28, I2C0 SDA : GPIO28

  • Connector “I2C/ADC” pin GP29, I2C0 SCL : GPIO29

  • microSD SCK, SPI0 SCK : GPIO18

  • microSD CMD, SPI0 MOSI : GPIO19

  • microSD DO, SPI0 MISO : GPIO20

  • microSD D1 : GPIO21

  • microSD D2 : GPIO22

  • microSD D3 (CS) : GPIO23

  • LCD DC (data/command): GPIO8

  • LCD SPI1 CS : GPIO9

  • LCD SPI1 SCK : GPIO10

  • LCD SPI1 MOSI : GPIO11

  • LCD RST (reset) : GPIO12

  • LCD BL (backlight): GPIO25

This board is intended to be used with a host computer via the USB A connector, why this board by default uses USB for terminal output.

See also Waveshare P2040-GEEK wiki [2] and schematic [3].

Supported Features

The rp2040_geek board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Programming and Debugging

The rp2040_geek board supports the runners and associated west commands listed below.

flash debug

The board does not expose the SWDIO and SWCLK pins, so programming must be done via the USB port. Press and hold the BOOT button when connecting the RP2040-GEEK to your host computer, and the device will appear as a USB mass storage unit. Building your application will result in a build/zephyr/zephyr.uf2 file. Drag and drop the file to the USB mass storage unit, and the RP2040-GEEK will be reprogrammed.

For more details on programming RP2040-based boards, see Raspberry Pi Pico and especially Programming and Debugging.

Flashing

To run the Dining Philosophers sample to verify output on the USB console:

# From the root of the zephyr repository
west build -b rp2040_geek samples/philosophers/
west flash

Try also the File system manipulation, Display, LVGL basic sample and UART Passthrough samples.

Samples where text is printed only just at startup, for example Hello World, are difficult to use as the text is already printed once you connect to the newly created USB console endpoint.

It is easy to connect a sensor shield via the I2C connector, for example the adafruit_lis3dh shield. Run the Generic 3-Axis accelerometer polling sample:

# From the root of the zephyr repository
west build -b rp2040_geek --shield adafruit_lis3dh samples/sensor/accel_polling/
west flash

To use the GPIO pins on the “DEBUG” connector:

# From the root of the zephyr repository
west build -b rp2040_geek samples/sensor/sensor_shell -- -DCONFIG_GPIO=y -DCONFIG_GPIO_SHELL=y
west flash

and then in the device console:

uart:~$ gpio conf gpio0 2 o
uart:~$ gpio set gpio0 2 1
