WCH CH32V303VCT6_EVT
Overview

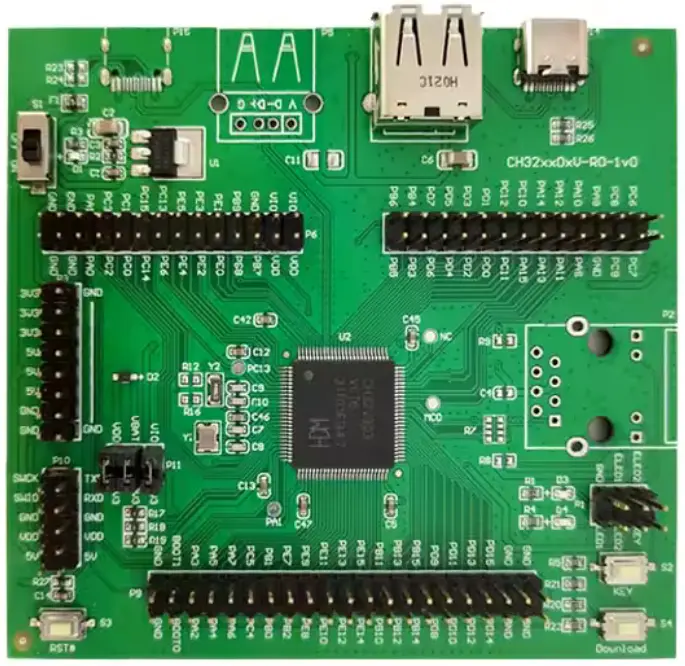

The WCH [1] CH32V303VCT6-EVT hardware provides support for QingKe V4F 32-bit RISC-V processor.
The WCH webpage on CH32V303 [2] contains the processor’s information and the datasheet.
Hardware
The QingKe V4F 32-bit RISC-V processor of the WCH CH32V303VCT6-EVT is clocked by an external 32 MHz crystal or the internal 8 MHz oscillator and runs up to 144 MHz. The CH32V303 SoC features 8 USART, 4 GPIO ports, 3 SPI, 2 I2C, 2 ADC, RTC, CAN, USB Host/Device, and 4 OPA.
Supported Features
The ch32v303vct6_evt board supports the hardware features listed below.
- on-chip / on-board
- Feature integrated in the SoC / present on the board.
- 2 / 2
-
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files. -
vnd,foo -
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.
Programming and Debugging
Applications for the ch32v303vct6_evt board target can be built and flashed
in the usual way (see Building an Application and Run an Application
for more details); however, an external programmer (like the WCH LinkE [3]) is required since the board
does not have any built-in debug support.
Flashing
You can use minichlink to flash the board. Once minichlink has been set
up, build and flash applications as usual (see Building an Application and
Run an Application for more details).
Here is an example for the Hello World application.
# From the root of the zephyr repository
west build -b ch32v303vct6_evt samples/hello_world
west flash
Debugging
This board can be debugged via OpenOCD using the WCH openOCD liberated fork, available at https://github.com/jnk0le/openocd-wch.
