phyBOARD-Atlas i.MX RT1170
Overview

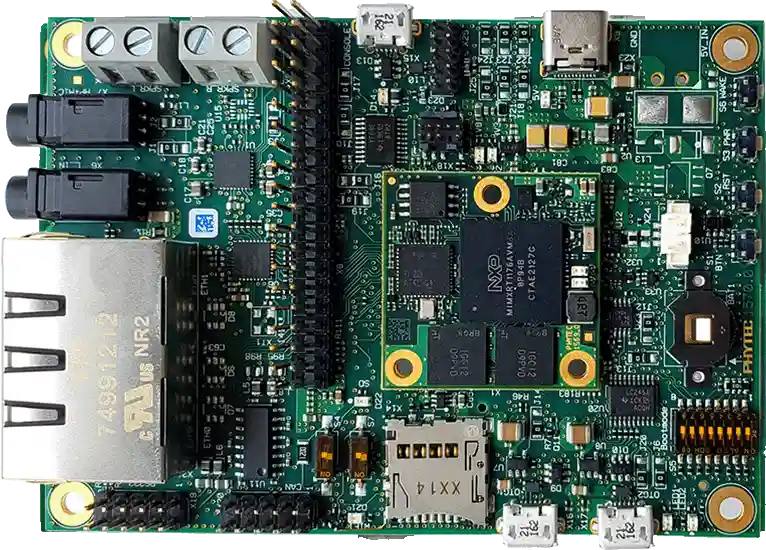

The PHYTEC phyBOARD-Atlas i.MX RT1170 features the phyCORE-i.MX RT1170 System on Module. The phyCORE-i.MX RT1170 module is based on the NXP dual core i.MX RT1170 which runs the Cortex-M7 core at 1 GHz and on the Cortex-M4 at 400 MHz.
Hardware
MIMXRT1176DVMAA MCU
1GHz Cortex-M7 & 400Mhz Cortex-M4
2MB SRAM with 512KB of TCM for Cortex-M7 and 256KB of TCM for Cortex-M4
Memory
512 Mbit SDRAM
128 Mbit QSPI Flash
512 Mbit Octal Flash
Interfaces
MicroSD: 1x microSD Card slot
USB: 2x USB 2.0 OTG
Ethernet: 1x 10/100/1000BASE-T & 1x 10/100BASE-T (RJ45)
Expansion: 1x M.2 Connector
Display: 1x MIPI-DSI
Camera: 1x MIPI CSI
Audio: Standard Audio Interface
Serial: 1x RS232 (2x5 pin header) + 1x RS485
UART: 1x via Expansion Interface
CAN: 1x CAN (2x5 pin header)
LED: 1x RGB User LED
Expansion Interface: 60-pin
Security: OPTIGA™ TPM SLB 9670 TPM 2.0
Power Input: USB-C 5V/3A
Debug
Micro USB serial debug interface
JTAG: via Expansion Interface
For more information about phyCORE-i.MX RT1170 & phyBOARD-Atlas i.MX RT1170 board, see these references:
External Memory
This platform has the following external memories:
Device |
Controller |
Status |
|---|---|---|
MT48LC16M16A2B4-7EIT SDRAM |
SEMC |
Enabled via device configuration data (DCD) block, which sets up the SEMC at boot time |
MX25U12832FM2I02 QSPI flash |
FLEXSPI |
Enabled via flash configuration block (FCB), which sets up the FLEXSPI at boot time. |
Supported Features
The phyboard_atlas board supports the hardware features listed below.
- on-chip / on-board
- Feature integrated in the SoC / present on the board.
- 2 / 2
-
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files. -
vnd,foo -
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.
Connections and I/Os
The MIMXRT1170 SoC has six pairs of pinmux/gpio controllers.
Name |
Function |
Usage |
GPIO_AD_35 |
GPIO |
User button |
GPIO_SNVS_08 |
GPIO |
Red LED (SOM) |
GPIO_SNVS_09 |
GPIO |
Green LED (SOM) |
GPIO_AD_14 |
GPIO |
Red LED (Carrier Board) |
GPIO_LPSR_13 |
GPIO |
Green LED (Carrier Board) |
GPIO_AD_18 |
LPI2C2_SCL |
EEPROM |
GPIO_AD_19 |
LPI2C2_SDA |
EEPROM |
GPIO_LPSR_08 |
LPI2C5_SCL |
Accelerometer, CODEC, Display |
GPIO_LPSR_09 |
LPI2C5_SDA |
Accelerometer, CODEC, Display |
GPIO_AD_24 |
LPUART1_TX |
UART Console (CM7) |
GPIO_AD_25 |
LPUART1_RX |
UART Console (CM7) |
GPIO_AD_28 |
LPUART5_TX |
UART |
GPIO_AD_29 |
LPUART5_RX |
UART |
GPIO_EMC_B1_40 |
LPUART6_TX |
UART Console (CM4) |
GPIO_EMC_B1_41 |
LPUART6_RX |
UART Console (CM4) |
GPIO_AD_00 |
CTP_INT |
Display |
GPIO_AD_01 |
CTP_RST_B |
Display |
GPIO_DISP_B2_05 |
PWR_EN |
Display |
GPIO_AD_30 |
Backlight_CTL |
Display |
GPIO_AD_32 |
ENET_MDC |
Ethernet |
GPIO_AD_33 |
ENET_MDIO |
Ethernet |
GPIO_DISP_B2_02 |
ENET_TX_DATA00 |
Ethernet |
GPIO_DISP_B2_03 |
ENET_TX_DATA01 |
Ethernet |
GPIO_DISP_B2_04 |
ENET_TX_EN |
Ethernet |
GPIO_DISP_B2_05 |
ENET_TX_CLK |
Ethernet |
GPIO_DISP_B2_06 |
ENET_RX_DATA00 |
Ethernet |
GPIO_DISP_B2_07 |
ENET_RX_DATA01 |
Ethernet |
GPIO_DISP_B2_08 |
ENET_RX_EN |
Ethernet |
GPIO_DISP_B2_09 |
ENET_RX_ER |
Ethernet |
GPIO_EMC_B2_19 |
ENET_RGMII_MDC |
Ethernet 1G |
GPIO_EMC_B2_20 |
ENET_RGMII_MDIO |
Ethernet 1G |
GPIO_DISP_B1_09 |
ENET_RGMII_TX_DATA00 |
Ethernet 1G |
GPIO_DISP_B1_08 |
ENET_RGMII_TX_DATA01 |
Ethernet 1G |
GPIO_DISP_B1_07 |
ENET_RGMII_TX_DATA02 |
Ethernet 1G |
GPIO_DISP_B1_06 |
ENET_RGMII_TX_DATA03 |
Ethernet 1G |
GPIO_DISP_B1_10 |
ENET_RGMII_TX_EN |
Ethernet 1G |
GPIO_DISP_B1_11 |
ENET_RGMII_TX_CLK |
Ethernet 1G |
GPIO_DISP_B1_02 |
ENET_RGMII_RX_DATA00 |
Ethernet 1G |
GPIO_DISP_B1_03 |
ENET_RGMII_RX_DATA01 |
Ethernet 1G |
GPIO_DISP_B1_04 |
ENET_RGMII_RX_DATA02 |
Ethernet 1G |
GPIO_DISP_B1_05 |
ENET_RGMII_RX_DATA03 |
Ethernet 1G |
GPIO_DISP_B1_00 |
ENET_RGMII_RX_EN |
Ethernet 1G |
GPIO_DISP_B1_01 |
ENET_RGMII_RX_CLK |
Ethernet 1G |
GPIO_AD_02 |
LPUART8_TX |
RS-232 |
GPIO_AD_03 |
LPUART8_RX |
RS-232 |
GPIO_AD_04 |
LPUART8_CTS |
RS-232 |
GPIO_AD_05 |
LPUART8_RTS |
RS-232 |
GPIO_SD_B2_05 |
FLEXSPI1_DQS |
Flash Programming |
GPIO_SD_B2_06 |
FLEXSPI1_SS0 |
Flash Programming |
GPIO_SD_B2_07 |
FLEXSPI1_SCLK |
Flash Programming |
GPIO_SD_B2_08 |
FLEXSPI1_DATA00 |
Flash Programming |
GPIO_SD_B2_09 |
FLEXSPI1_DATA01 |
Flash Programming |
GPIO_SD_B2_10 |
FLEXSPI1_DATA02 |
Flash Programming |
GPIO_SD_B2_11 |
FLEXSPI1_DATA03 |
Flash Programming |
GPIO_LPSR_00 |
CAN3_TX |
FlexCAN |
GPIO_LPSR_01 |
CAN3_RX |
FlexCAN |
GPIO_AD_17_SAI1_MCLK |
SAI_MCLK |
CODEC/SAI |
GPIO_AD_20_SAI1_RX_DATA00 |
SAI1_RX_DATA00 |
CODEC/SAI |
GPIO_AD_21_SAI1_TX_DATA00 |
SAI1_TX_DATA00 |
CODEC/SAI |
GPIO_AD_22_SAI1_TX_BCLK |
SAI1_TX_BCLK |
CODEC/SAI |
GPIO_AD_23_SAI1_TX_SYNC |
SAI1_TX_SYNC |
CODEC/SAI |
GPIO_SD_B1_00 |
USDHC1_CMD |
SDHC |
GPIO_SD_B1_01 |
USDHC1_CLK |
SDHC |
GPIO_SD_B1_02 |
USDHC1_DATA0 |
SDHC |
GPIO_SD_B1_03 |
USDHC1_DATA1 |
SDHC |
GPIO_SD_B1_04 |
USDHC1_DATA2 |
SDHC |
GPIO_SD_B1_05 |
USDHC1_DATA3 |
SDHC |
GPIO_AD_09 |
USB_OTG1_ID |
USB |
GPIO_AD_10 |
USB_OTG1_PWR |
USB |
GPIO_AD_11 |
USB_OTG1_OC |
USB |
GPIO_AD_08 |
USB_OTG2_ID |
USB |
GPIO_AD_07 |
USB_OTG2_PWR |
USB |
GPIO_AD_06 |
USB_OTG2_OC |
USB |
Dual Core samples
Core |
Boot Address |
Comment |
|---|---|---|
Cortex M7 |
0x30000000[630K] |
primary core |
Cortex M4 |
0x20020000[96k] |
boots from OCRAM |
Memory |
Address[Size] |
Comment |
|---|---|---|
flexspi1 |
0x30000000[16M] |
Cortex M7 flash |
sdram0 |
0x80030000[64M] |
Cortex M7 ram |
ocram |
0x20020000[512K] |
Cortex M4 “flash” |
sram1 |
0x20000000[128K] |
Cortex M4 ram |
ocram2 |
0x200C0000[512K] |
Mailbox/shared memory |
Only the first 16K of ocram2 has the correct MPU region attributes set to be used as shared memory
System Clock
The MIMXRT1170 SoC is configured to use SysTick as the system clock source, running at 996MHz. When targeting the M4 core, SysTick will also be used, running at 400MHz
When power management is enabled, the 32 KHz low frequency oscillator on the board will be used as a source for the GPT timer to generate a system clock. This clock enables lower power states, at the cost of reduced resolution
Serial Port
The MIMXRT1170 SoC has 12 UARTs. LPUART1 is configured for the console for
the CM7 and LPUART6 is configured for the console of the CM4. LPUART8 is
configured for RS-232. Remaining are not used.
Programming and Debugging
Build and flash applications as usual (see Building an Application and Run an Application for more details).
Configuring a Console
We will use the on-board FTDI UART-to-USB IC that converts the two internal UARTs to USB (X15).
Use the following settings with your serial terminal of choice (minicom, putty, etc.):
Speed: 115200
Data: 8 bits
Parity: None
Stop bits: 1
Flashing
Here is an example for the Hello World application.
# From the root of the zephyr repository
west build -b phyboard_atlas/mimxrt1176/cm7 samples/hello_world
west flash
You should see the following message in the terminal:
***** Booting Zephyr OS v4.1.0-xxxx-xxxxxxxxxxxxx *****
Hello World! phyboard_atlas/mimxrt1176/cm7
Debugging
Here is an example for the Hello World application.
# From the root of the zephyr repository
west build -b phyboard_atlas/mimxrt1176/cm7 samples/hello_world
west debug
Open a serial terminal, step through the application in your debugger, and you should see the following message in the terminal:
***** Booting Zephyr OS v4.1.0-xxxx-xxxxxxxxxxxxx *****
Hello World! phyboard_atlas/mimxrt1176/cm7
Note
Use J-Link version 7.50 or later. Debugging only supports running the CM4 image, since the board’s default boot core is CM7.
