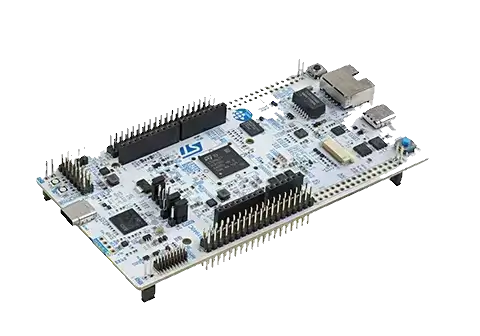

Nucleo N657X0-Q

Overview

The NUCLEO-N657X0-Q board provides an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features, provided by the STM32 microcontroller. For the compatible boards, the internal or external SMPS significantly reduces power consumption in Run mode.

The ST Zio connector, which extends the ARDUINO® Uno V3 connectivity, and the ST morpho headers provide an easy means of expanding the functionality of the Nucleo open development platform with a wide choice of specialized shields.

The NUCLEO-N657X0-Q board does not require any separate probe as it integrates the ST-LINK debugger/programmer.

The STM32 Nucleo-144 board comes with the STM32 comprehensive free software libraries and examples available with the STM32Cube MCU Package.

Hardware

  • Common features:

    • STM32 microcontroller in an LQFP144, TFBGA225, or VFBGA264 package

    • 3 user LEDs

    • 1 user push-button and 1 reset push-button

    • 32.768 kHz crystal oscillator

    • Board connectors:

      • SWD

      • ST morpho expansion connector

    • Flexible power-supply options: ST-LINK USB VBUS, USB connector, or external sources

  • Features specific to some of the boards (refer to the ordering information section of the data brief for details);

    • External or internal SMPS to generate Vcore logic supply

    • Ethernet compliant with IEEE-802.3-2002

    • USB Device only, USB OTG full speed, or SNK/UFP (full-speed or high-speed mode)

    • Board connectors:

      • ARDUINO® Uno V3 connector or ST Zio expansion connector including ARDUINO® Uno V3

      • Camera module FPC

      • MIPI20 compatible connector with trace signals

      • USB with Micro-AB or USB Type-C®

      • Ethernet RJ45

    • On-board ST-LINK (STLINK/V2-1, STLINK-V3E, or STLINK-V3EC) debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port

For more details, please refer to:

Supported Features

The nucleo_n657x0_q board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

USB

The USB pin assignments on the STM32N657XX microcontroller are immutable. This means that the specific pins designated for USB functionality are fixed and cannot be changed or reassigned to other functions, ensuring consistent and reliable USB communication.

USB PIN (IOs)

Name

Description

OTG1_HSDM

USB OTG1 High-Speed Data- (negative)

OTG1_HSDP

USB OTG1 High-Speed Data+ (positive)

OTG1_ID

USB OTG1 ID Pin

OTG1_TXRTUNE

USB OTG1 Transmit Retune

OTG2_HSDM

USB OTG2 High-Speed Data- (negative)

OTG2_HSDP

USB OTG2 High-Speed Data+ (positive)

OTG2_ID

USB OTG2 ID Pin

OTG2_TXRTUNE

USB OTG2 Transmit Retune

Connections and IOs

NUCLEO-N657X0-Q Board has 12 GPIO controllers. These controllers are responsible for pin muxing, input/output, pull-up, etc.

For more details please refer to NUCLEO-N657X0-Q User Manual.

Default Zephyr Peripheral Mapping:

  • ADC1_INP10 : PA9

  • ADC1_INP11 : PA10

  • FDCAN1_TX : PH2

  • FDCAN1_RX : PD0

  • I2C1_SCL : PH9

  • I2C1_SDA : PC1

  • I2C4_SCL : PE13

  • I2C4_SDA : PE14

  • LD1 : PO1

  • LD2 : PG10

  • SPI5_SCK : PE15

  • SPI5_MOSI : PG2

  • SPI5_MISO : PG1

  • SPI5_NSS : PA3

  • USART_1_TX : PE5

  • USART_1_RX : PE6

  • USART_3_TX : PD8

  • USART_3_RX : PD9

  • XSPI2_NCS1 : PN1

  • XSPI2_DQS0 : PN0

  • XSPI2_CLK : PN6

  • XSPI2_IO0 : PN2

  • XSPI2_IO1 : PN3

  • XSPI2_IO2 : PN4

  • XSPI2_IO3 : PN5

  • XSPI2_IO4 : PN8

  • XSPI2_IO5 : PN9

  • XSPI2_IO6 : PN10

  • XSPI2_IO7 : PN11

System Clock

NUCLEO-N657X0-Q System Clock could be driven by internal or external oscillator, as well as main PLL clock. By default System clock is driven by PLL clock at 400MHz, driven by 64MHz high speed internal oscillator.

Serial Port

NUCLEO-N657X0-Q board has 10 U(S)ARTs. The Zephyr console output is assigned to USART1. Default settings are 115200 8N1.

Programming and Debugging

The nucleo_n657x0_q board supports the runners and associated west commands listed below.

flash debug

NUCLEO-N657X0-Q board includes an ST-LINK/V3 embedded debug tool interface. This probe allows to flash and debug the board using various tools.

Flashing or loading

The board is configured to be programmed using west STM32CubeProgrammer runner, so its installation is needed. Version 2.18.0 or later of STM32CubeProgrammer is required.

Note

Firmware is run in secure mode of execution, which requires a signature. After build, the build system will automatically generate a signed version of the binary using STM32CubeProgrammer utility STM32_SigningTool_CLI. This utility is installed along with STM32CubeProgrammer, but make sure it is available in your PATH variable.

To program the board, there are two options:

  • Program the firmware in external flash. At boot, it will then be loaded on RAM and executed from there.

  • Optionally, it can also be taken advantage from the serial boot interface provided by the boot ROM. In that case, firmware is directly loaded in RAM and executed from there. It is not retained in persistent memory.

Programming an application to NUCLEO-N657X0-Q

Here is an example to build and run Hello World application.

First, connect the NUCLEO-N657X0-Q to your host computer using the ST-Link USB port.

Build and flash an application using nucleo_n657x0_q target.

# From the root of the zephyr repository
west build -b nucleo_n657x0_q samples/hello_world
west flash

Note

For flashing, before powering the board, set the boot pins in the following configuration:

  • BOOT0: 0 (jumper JP1 in position 1, printed on PCB)

  • BOOT1: 1 (jumper JP2 in position 2, not-printed on PCB)

After flashing, to run the application, set the boot pins in the following configuration:

  • BOOT0: 0 (jumper JP1 in position 1, printed on PCB)

  • BOOT1: 0 (jumper JP2 in position 1, printed on PCB)

Power off and on the board again.

Run a serial host program to connect to your board:

$ minicom -D /dev/ttyACM0

You should see the following message on the console:

Hello World! nucleo_n657x0_q/stm32n657xx

Debugging

You can debug an application in the usual way using the ST-LINK GDB Server. Here is an example for the Hello World application.

# From the root of the zephyr repository
west build -b nucleo_n657x0_q samples/hello_world
west debug

Note

To enable debugging, before powering on the board, set the boot pins in the following configuration:

  • BOOT0: 0

  • BOOT1: 1

Another solution for debugging is to use STM32CubeIDE:

  • Go to File ‣ Import and select C/C++ ‣ STM32 Cortex-M Executable.

  • In the Executable field, browse to your <ZEPHYR_PATH>/build/zephyr/zephyr.elf.

  • In MCU field, select STM32N657X0HxQ.

  • Click on Finish.

  • Finally, click on Debug to start the debugging session.

Running tests with twister

Due to the BOOT switches manipulation required when flashing the board using nucleo_n657x0_q board target, it is only possible to run twister tests campaign on nucleo_n657x0_q/stm32n657xx/sb board target which doesn’t require BOOT pins changes to load and execute binaries. To do so, it is advised to use Twister’s hardware map feature with the following settings:

- platform: nucleo_n657x0_q/stm32n657xx/sb
  product: BOOT-SERIAL
  pre_script: <path_to_zephyr>/boards/st/common/scripts/board_power_reset.sh
  runner: stm32cubeprogrammer
