GD32F450V-START

Board Overview

GD32F450V-START

Name:

gd32f450v_start

Vendor:

GigaDevice Semiconductor

Status:

Maintained

Architecture:

arm

SoC:

gd32f450

Browse board sources

Overview

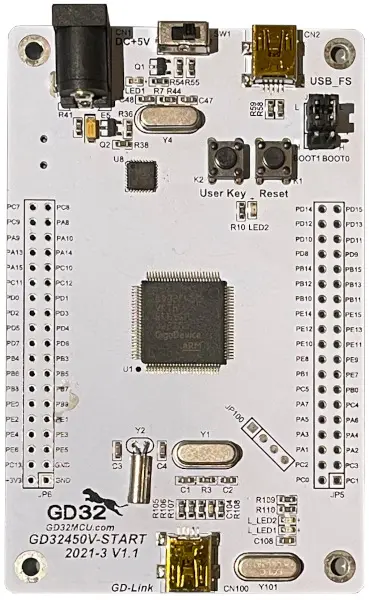

The GD32F450V-START board is a hardware platform that enables prototyping on GD32F450VK Cortex-M4F Stretch Performance MCU.

The GD32F450VK features a single-core ARM Cortex-M4F MCU which can run up to 200 MHz with flash accesses zero wait states, 3072kiB of Flash, 256kiB of SRAM and 82 GPIOs.

Hardware

• GD32F450VKT6 MCU

• 1 x User LEDs

• 1 x User Push buttons

• USB FS/HS connectors

• GD-Link on board programmer

• J-Link/SWD connector

For more information about the GD32F450 SoC and GD32F450V-START board:

• GigaDevice Cortex-M4F Stretch Performance SoC Website

• GD32F450X Datasheet

• GD32F4XX User Manual

• GD32F450V-START User Manual

Supported Features

The gd32f450v_start board supports the hardware features listed below.

on-chip / on-board

Feature integrated in the SoC / present on the board.

2 / 2

Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.

vnd,foo

Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Serial Port

The GD32F450V-START board has no exposed serial communication port. The board provides default configuration for USART0 with TX connected at PB6 and RX at PB7. PB6/PB7 are exposed in JP6, so you can solder a connector and use a UART-USB adapter.

Programming and Debugging

The gd32f450v_start board supports the runners and associated west commands listed below.

	flash	debug

Before programming your board make sure to configure boot jumpers as follows:

• JP2/3: Select 2-3 for both (boot from user memory)

Using GD-Link

The GD32F450V-START includes an onboard programmer/debugger (GD-Link) which allows flash programming and debugging over USB. There is also a SWD header (JP100) which can be used with tools like Segger J-Link.

1. Build the Zephyr kernel and the Hello World sample application:

   west build -b gd32f450v_start samples/hello_world


2. Run your favorite terminal program to listen for output. On Linux the terminal should be something like /dev/ttyUSB0. For example:

   minicom -D /dev/ttyUSB0 -o


   The -o option tells minicom not to send the modem initialization string. Connection should be configured as follows:

   • Speed: 115200

   • Data: 8 bits

   • Parity: None

   • Stop bits: 1

3. To flash an image:

   west build -b gd32f450v_start samples/hello_world
   west flash


   You should see “Hello World! gd32f450v_start” in your terminal.

4. To debug an image:

   west build -b gd32f450v_start samples/hello_world
   west debug
