Nucleo WBA25CE1

Overview

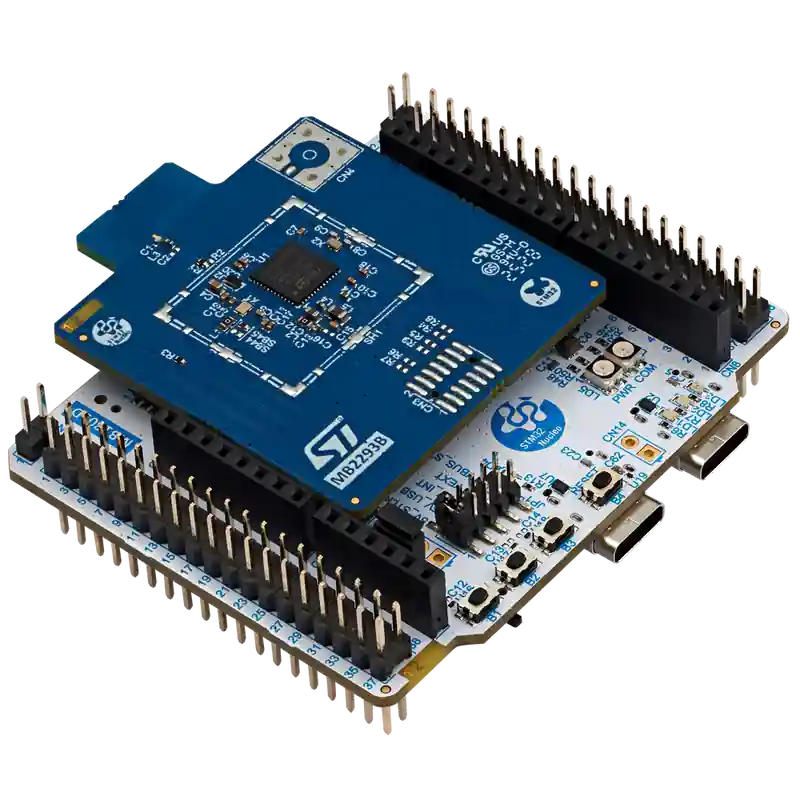

NUCLEO-WBA25CE1 is a Bluetooth® Low Energy wireless and ultra-low-power board embedding a powerful and ultra-low-power radio compliant with the Bluetooth® Low Energy SIG specification v5.3.

The ARDUINO® Uno V3 connectivity support and the ST morpho headers allow the easy expansion of the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.

  • Ultra-low-power wireless STM32WBA25CE1 microcontroller based on the Arm® Cortex®-M33 core, featuring 512 Kbytes of flash memory and 96 Kbytes of SRAM in a UFQFPN48 package

  • MCU RF board (MB1863):

    • 2.4 GHz RF transceiver supporting Bluetooth® specification v5.3

    • Arm® Cortex®-M33 CPU with TrustZone®, MPU, DSP, and FPU

    • Integrated PCB antenna

  • Three user LEDs

  • Three user and one reset push-buttons

  • 8-pin SOP Quad-SPI NOR flash memory footprint

  • Board connectors:

    • USB Type-C®

    • ARDUINO® Uno V3 expansion connector

    • ST morpho headers for full access to all STM32 I/Os

  • Flexible power-supply options: ST-LINK USB VBUS or external sources

  • On-board STLINK-V3MODS debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port

Hardware

The STM32WBA2xxx multiprotocol wireless and ultra-low-power devices embed a powerful and ultra-low-power 2.4 GHz RADIO compliant with the Bluetooth® LE specifications and with IEEE 802.15.4-2015. They contain a high-performance Arm® Cortex®-M33 32-bit RISC core. They operate at a frequency of up to 64 MHz.

  • Includes ST state-of-the-art patented technology

  • Ultra low power radio:

    • 2.4 GHz radio

    • RF transceiver supporting Bluetooth® LE, IEEE 802.15.4-2015 PHY and MAC, supporting Matter and Zigbee®

    • RX sensitivity: -96 dBm (Bluetooth® LE at 1 Mbps), -100 dBm (IEEE 802.15.4 at 250 kbps)

    • Programmable output power, up to +10 dBm with 1 dB steps

    • Support for external PA

    • Packet traffic arbitration

    • Integrated balun to reduce BOM

    • Suitable for systems requiring compliance with radio frequency regulations ETSI EN 300 328, EN 300 440, FCC CFR47 Part 15 and ARIB STD-T66

  • Ultra low power platform with FlexPowerControl:

    • 1.71 to 3.6 V power supply

    • -40 to 85/105 °C ambiant temperature range

    • Autonomous peripherals with DMA, functional down to Stop 1 mode

    • 110 nA Standby mode (7 wake-up pins)

    • 490 nA Standby mode with 64 KB SRAM

    • 980 nA Standby mode with 64 KB SRAM, 2.4 GHz radio, RTC

    • 4.81 µA Stop mode with 64 KB SRAM, 2.4 GHz radio, RTC

    • 21 µA/MHz Run mode

    • Radio: Rx 3.58 mA / Tx at 0 dBm 4.65 mA

  • Core: Arm® 32-bit Cortex®-M33 CPU with TrustZone®, MPU, DSP, and FPU

  • ART Accelerator™: 4-Kbyte instruction cache allowing 0-wait-state execution from flash memory (frequency up to 64 MHz, 96 DMIPS)

  • Power management: Embedded regulator LDO and SMPS step-down converter, supporting switch on-the-fly and voltage scaling

  • Benchmarks:

    • 264 CoreMark® (4.12 CoreMark/MHz)

  • Clock sources:

    • 32 MHz crystal oscillator

    • 32 kHz crystal oscillator (LSE)

    • Internal low-power 32 kHz (±5%) RC

    • Internal 16 MHz factory trimmed RC (±1%)

    • PLL for system clock, audio, USB and ADC

  • Memories:

    • 512-Kbyte flash memory with ECC and 10 kcycles

    • 96 KB SRAM, including 32 KB with parity check

    • 512-byte (32 rows) OTP

    • One Quad-SPI memory interface

  • Analog peripherals (independent supply):

    • 12-bit ADC 2.5 Msps up to 16-bit with hardware oversampling

  • Communication peripherals:

    • One USB full-speed selectable host or device controller

    • One SAI (serial audio interface)

    • One USART (ISO 7816, IrDA, modem)

    • One LPUART (ISO 7816, modem)

    • One SPI

    • Two I2C Fm+ (1 Mbit/s), SMBus/PMBus®

  • System peripherals:

    • Two 16-bit timers

    • One 32-bit timer

    • Two low-power 16-bit timers (available in Stop mode)

    • Two SysTick timers

    • RTC with hardware calendar and calibration

    • One watchdog

    • 8-channel DMA controller, functional in Stop mode

  • Security and cryptography:

    • Arm® TrustZone® and securable I/Os, memories, and peripherals

    • Flexible life cycle scheme with RDP and password protected debug

    • Root of trust thanks to unique boot entry and secure hide protection area (HDP)

    • Secure boot and secure firmware update

    • AES accelerator

    • Public key accelerator, ECC and RSA, SCA resistant

    • HASH hardware accelerator

    • True random number generator, NIST SP800-90B compliant

    • 96-bit unique ID

    • Antitamper protections

  • Development support:

    • Serial wire debug (SWD), JTAG

    • Embedded trace (ETM)

  • ECOPACK2 compliant package

More information about STM32WBA series can be found here:

Supported Features

The nucleo_wba25ce1 board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Connections and IOs

Nucleo WBA25CE1 Board has 4 GPIO controllers. These controllers are responsible for pin muxing, input/output, pull-up, etc.

Default Zephyr Peripheral Mapping:

  • USART_1 TX/RX : PA6/PA12

  • I2C_3_SCL : PB2

  • I2C_3_SDA : PA11

  • USER_PB_1 : PA1

  • USER_PB_2 : PC13

  • USER_PB_3 : PA2

  • LD1 : PA7

  • LD2 : PB12

  • LD3 : PB15

  • SPI_3_NSS : PA5 (arduino_spi)

  • SPI_3_SCK : PA8 (arduino_spi)

  • SPI_3_MISO : PA10 (arduino_spi)

  • SPI_3_MOSI : PA9 (arduino_spi)

System Clock

Nucleo WBA25CE1 System Clock could be driven by internal or external oscillator, as well as main PLL clock. By default System clock is driven by HSE+PLL clock at 64 MHz.

Serial Port

Nucleo WBA25CE1 board has 1 USART. The Zephyr console output is assigned to USART1. Default settings are 115200 8N1.

Programming and Debugging

The nucleo_wba25ce1 board supports the runners and associated west commands listed below.

flash debug

Nucleo WBA25CE1 board includes an ST-LINK/V3 embedded debug tool interface. It could be used for flash and debug using STM32Cube ecosystem tools.

Flashing

The board is configured to be flashed using west STM32CubeProgrammer runner, so its installation is required.

Flashing an application to Nucleo WBA25CE1

Here is an example for the Blinky application.

# From the root of the zephyr repository
west build -b nucleo_wba25ce1 samples/basic/blinky
west flash

You will see the LED blinking every second.

Debugging

Debugging using STM32CubeIDE

You can debug an application using a STM32WBA compatible version of STM32CubeIDE.

For that:

  • Create an empty STM32WBA project by going to File > New > STM32 project

  • Select your MCU, click Next, and select an Empty project.

  • Right click on your project name, select Debug as > Debug configurations

  • In the new window, create a new target in STM32 Cortex-M C/C++ Application

  • Select the new target and enter the path to zephyr.elf file in the C/C++ Application field

  • Check Disable auto build

  • Run debug
