Adafruit MacroPad RP2040

Adafruit MacroPad RP2040

Overview

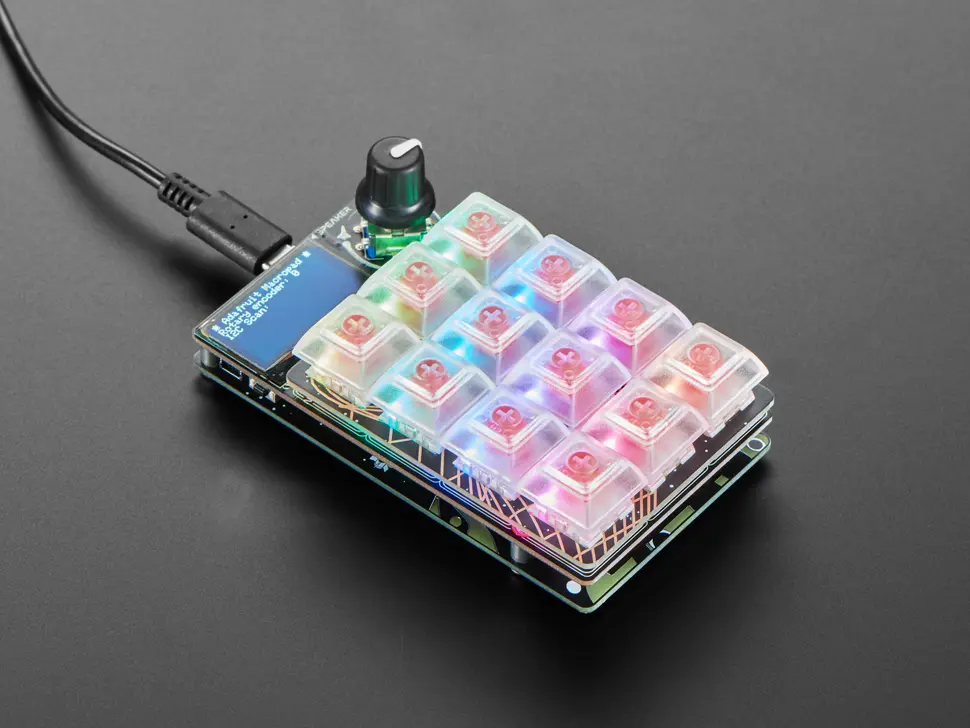

The Adafruit MacroPad RP2040 is a 3x4 mechanical keyboard development board featuring the Raspberry Pi RP2040 microcontroller. It includes 12 mechanical key switches with individual RGB NeoPixels, a rotary encoder with push button, a 128x64 OLED display, and a small speaker for audio feedback.

Hardware

  • Dual core Cortex-M0+ at up to 133MHz

  • 264KB of SRAM

  • 8MB of QSPI flash memory

  • 12 mechanical key switches (Cherry MX compatible)

  • 12 RGB NeoPixel LEDs (one per key)

  • 128x64 monochrome OLED display (SH1106)

  • Rotary encoder with push button

  • Small speaker with Class D amplifier

  • STEMMA QT / Qwiic I2C connector

  • USB Type-C connector

  • Reset button

  • 4x M3 mounting holes

Supported Features

The adafruit_macropad_rp2040 board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Programming and Debugging

The adafruit_macropad_rp2040 board supports the runners and associated west commands listed below.

flash debug

Applications for the adafruit_macropad_rp2040 board target can be built and flashed in the usual way (see Building an Application and Run an Application for more details).

Building and Flashing

The MacroPad RP2040 has a built-in UF2 bootloader which can be entered by holding down the rotary encoder button (BOOT) and, while continuing to hold it, pressing and releasing the reset button. A “RPI-RP2” drive should appear on your host machine.

Here is an example for building and flashing the Blinky sample application using UF2.

# From the root of the zephyr repository
west build -b adafruit_macropad_rp2040 samples/basic/blinky
west flash --runner uf2
