RA8P1 Titan Mini

Overview

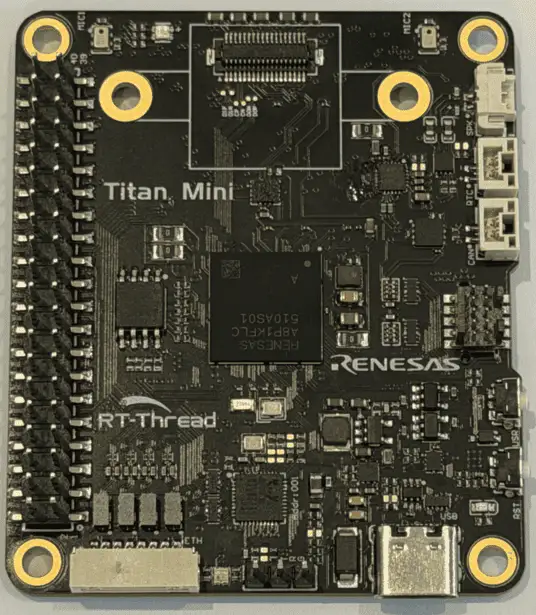

The Titan Board Mini is a development board launched by RT-Thread, based on the Renesas R7KA8P1 chip featuring a dual-core architecture with Cortex-M85 and Cortex-M33. It provides engineers with a flexible and comprehensive development platform, helping developers gain deeper insights and experiences in the field of embedded IoT.

The RA8P1 MCU incorporates a high-performance Arm® Cortex®-M85 core running up to 1 GHz and an Arm® Cortex®-M33 core running up to 250 MHz with the following features:

  • Up to 1 MB MRAM

  • 2 MB SRAM (256 KB of CM85 TCM RAM, 128 KB CM33 TCM RAM, 1664 KB of user SRAM)

  • Arm® Ethos™-U55 NPU

  • Octal Serial Peripheral Interface (OSPI)

  • Layer 3 Ethernet Switch Module (ESWM), USBFS, USBHS, SD/MMC Host Interface

  • Graphics LCD Controller (GLCDC)

  • 2D Drawing Engine (DRW)

  • MIPI DSI/CSI interface

  • Analog peripherals

  • Security and safety features

Key Features

  • Renesas R7KA8P1 MCU in 289-pin FBGA package

  • Arm Cortex-M85 core running up to 1 GHz

  • Arm Cortex-M33 core running up to 250 MHz

  • Arm Ethos-U55 NPU for AI acceleration

  • Up to 1 MB MRAM and 2 MB SRAM

  • Two external ports with gigabit Ethernet support

  • TSN support, including IEEE 802.1AS-2020, IEEE 802.1Qbv/802.3br, and IEEE 802.1Qbu

  • Network redundancy support, including DLR and PRP

  • Host interfaces: parallel, serial, dual, quad, and octal

  • Memory interfaces: Octa-SPI, Quad-SPI, HyperRAM, HyperFLASH, and SRAM

  • UART, RS-485, CAN FD, I2C, SPI, OSPI, SDHI, USBHS, and USBFS interfaces

  • PWM timers, ADC, RTC, watchdog, PDM microphone, IMU, display, and camera examples in the official RT-Thread SDK

  • SWD debug interface with J-Link debugger support

More information about the board can be found in the RA8P1 Titan Mini Board GitHub [1] repository.

Hardware

Detailed hardware information can be found at:

Supported Features

The ra8p1_titan_mini board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Dual Core Operation

The Titan Board Mini supports dual core operation with both the Cortex-M85 (CPU0) and Cortex-M33 (CPU1) cores. By default, the CM85 core is the boot core and is responsible for initializing the system and starting the CM33 core.

Memory Usage

By default, MRAM (Flash) and SRAM are split evenly between the two cores. Users can manually change the address and size for MRAM (Flash) and SRAM with the following nodes:

  • CPU0: &code_mram_cm85, &sram0

  • CPU1: &code_mram_cm33, &sram1

Note

  • MRAM usable range: 0x0200_0000 … 0x0210_0000 (1 MB)

  • SRAM usable range: 0x2200_0000 … 0x221A_0000 (1664 KB)

Dual Core Flashing

When flashing or debugging dual-core samples, CONFIG_SOC_RA_ENABLE_START_SECOND_CORE must be selected for the CM85 image. The CM85 core is responsible for starting the CM33 core in soc_late_init_hook.

Programming and Debugging

The ra8p1_titan_mini board supports the runners and associated west commands listed below.

flash debug

Applications for the ra8p1_titan_mini board configuration can be built, flashed, and debugged in the usual way. See Building an Application and Run an Application for more details on building and running.

Serial Console

Both the CM85 and CM33 board targets use UART2 for the Zephyr console and shell. UART2 is available on the external UART interface pins. Use an external USB-to-UART adapter connected to the UART2 pins when reading Zephyr logs.

Here is an example for the Hello World application on the CM85 core.

# From the root of the zephyr repository
west build -b ra8p1_titan_mini/r7ka8p1kflcac/cm85 samples/hello_world
west flash

Open a serial terminal, reset the board, and you should see the following message in the terminal:

***** Booting Zephyr OS v4.2.0-xxx-xxxxxxxxxxxxx *****
Hello World! ra8p1_titan_mini/r7ka8p1kflcac/cm85

For the CM33 core, use the --sysbuild flow to build a minimal first-core launcher image that starts the CM33 core.

# From the root of the zephyr repository
west build -b ra8p1_titan_mini/r7ka8p1kflcac/cm33 --sysbuild samples/hello_world
west flash

Flashing

Programs can be flashed to the Titan Board Mini using a J-Link debugger over the SWD interface.

To flash a program to the board:

  1. Connect the J-Link debugger to the board SWD interface and the host PC.

  2. Execute the west command:

    west flash

MCUboot Bootloader

Sysbuild can build and flash all images needed to bootstrap the board.

To build the sample application using sysbuild:

# From the root of the zephyr repository
west build -b ra8p1_titan_mini/r7ka8p1kflcac/cm85 --sysbuild samples/hello_world -- -DSB_CONFIG_BOOTLOADER_MCUBOOT=y
west flash

By default, sysbuild creates MCUboot and user application images.

The build directory structure created by sysbuild is different from a traditional Zephyr build. Output is structured by domain subdirectories:

build/
|-- hello_world
|   `-- zephyr
|       |-- zephyr.elf
|       |-- zephyr.hex
|       |-- zephyr.bin
|       |-- zephyr.signed.bin
|       `-- zephyr.signed.hex
|-- mcuboot
|   `-- zephyr
|       |-- zephyr.elf
|       |-- zephyr.hex
|       `-- zephyr.bin
`-- domains.yaml

Note

With the --sysbuild option, MCUboot is rebuilt and reflashed every time a pristine build is used.

To flash only the user application in subsequent builds, use:

west flash --domain hello_world

For more information about system build, see the Sysbuild (System build) documentation.

You should see the following message in the terminal:

*** Booting MCUboot v2.2.0-171-g8513be710e5e ***
*** Using Zephyr OS build v4.2.0-6156-ged85ac9ffda9 ***
I: Starting bootloader
I: Image index: 0, Swap type: none
I: Image index: 0, Swap type: none
I: Primary image: magic=unset, swap_type=0x1, copy_done=0x3, image_ok=0x3
I: Secondary image: magic=unset, swap_type=0x1, copy_done=0x3, image_ok=0x3
I: Boot source: none
I: Image index: 0, Swap type: none
I: Image index: 0, Swap type: none
I: Image index: 0, Swap type: none
I: Image index: 0, Swap type: none
I: Bootloader chainload address offset: 0x10000
I: Image version: v0.0.0
I: Jumping to the first image slot
*** Booting Zephyr OS build v4.2.0-6156-ged85ac9ffda9 ***
Hello World! ra8p1_titan_mini/r7ka8p1kflcac/cm85
