RZ/A2M Evaluation Kit

Overview

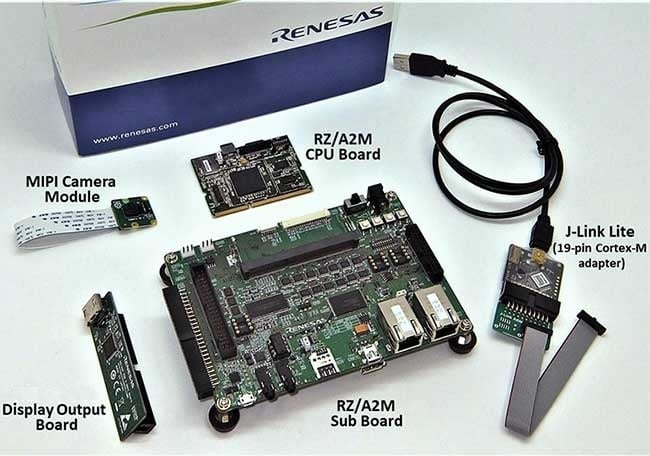

The RZ/A2M Evaluation Board Kit is a best evaluation board kit to evaluate RZ/A2M.

  • On-board device: RZ/A2M (R7S921053VCBG: with DRP function, without encryption function, internal RAM 4MB) Evaluation of DRP (Dynamically Reconfigurable Processor) is possible.

  • MIPI Camera Module (MIPI CSI) is bundled and image recognition processing etc. can be used with images input with MIPI camera.

  • HyperMCP (Multi-chip package), in which HyperFlash and HyperRAM are installed in one package, is mounted. HyperFlash and HyperRAM can be evaluated.

  • A Display Output Board is included and the graphic output is possible by connecting it to the external display.

  • It is possible to evaluate 2ch Ethernet communication.

  • Other peripheral functions such as SDHI and USB can also be evaluated.

  • Allows for safe and secure connection to the AWS cloud. HyperFlash and HyperRAM are trademarks of Cypress Semiconductor Corporation of the U.S.

Hardware

The Renesas RZ/A2M MPU documentation can be found at RZ/A2M Group Website [1]

RZ/A2M group feature

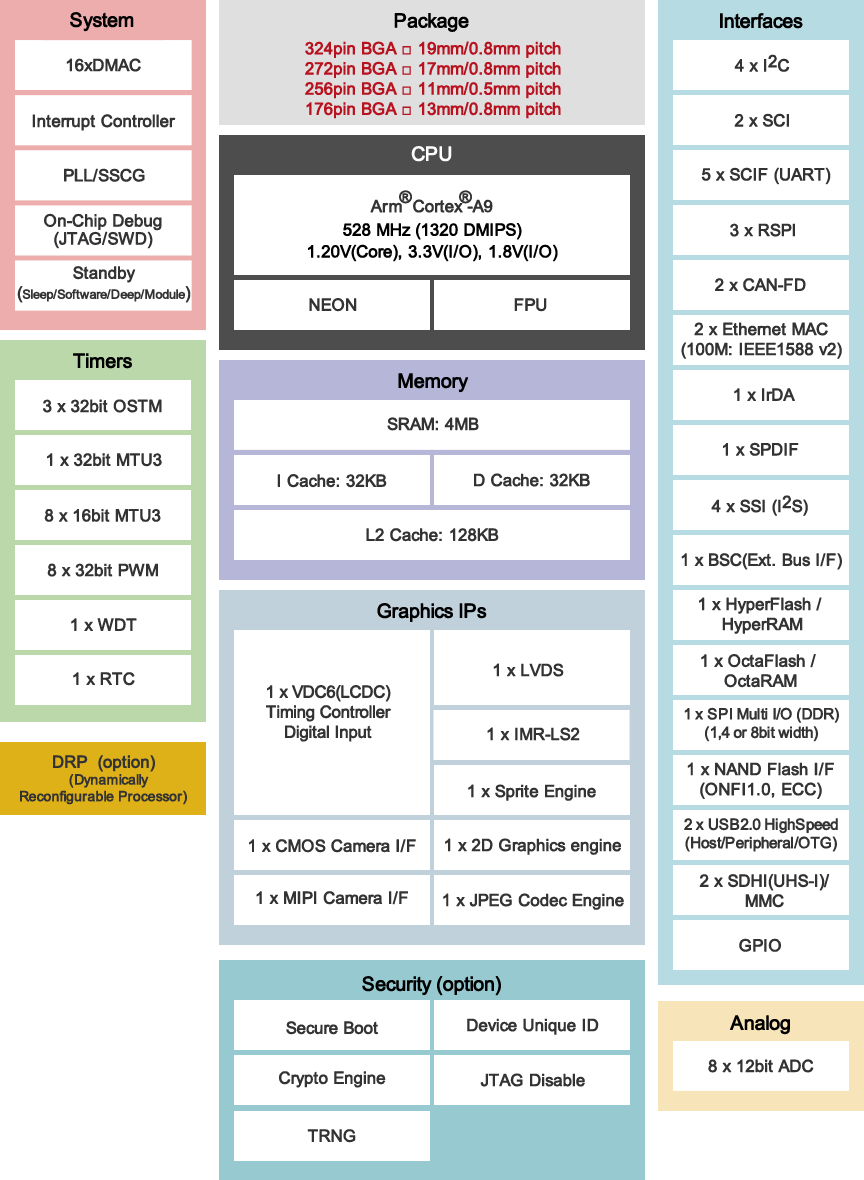

RZ/A2M block diagram (Credit: Renesas Electronics Corporation)

Detailed hardware features for the board can be found at RZ/A2M-EVK Website [2]

Supported Features

The rza2m_evk board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Programming and Debugging

The rza2m_evk board supports the runners and associated west commands listed below.

flash debug

Applications for the rza2m_evk board configuration can be built and flashed in the usual way (see Building an Application and Run an Application for more details).

Console

The UART port is accessed by USB-Serial port (CN5).

Building & Flashing

Here is an example for building and flashing the Hello World application.

# From the root of the zephyr repository
west build -b rza2m_evk samples/hello_world
west flash
