STM32 M4 Clicker

Overview

The Mikroe STM32 M4 Clicker development board contains a STMicroelectronics Cortex-M4 based STM32F415RG Microcontroller operating at up to 168 MHz with 1 MB of Flash memory and 192 KB of SRAM.

Hardware

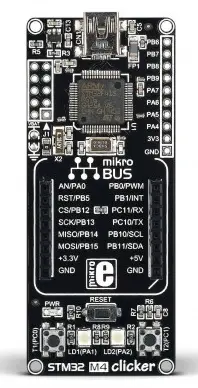

The STM32 M4 Clicker board contains a USB connector, two LEDs, two push buttons, and a reset button. It features a mikroBUS socket for interfacing with external electronics. For more information about the development board see the STM32 M4 Clicker website [1].

Supported Features

The mikroe_stm32_m4_clicker board supports the hardware features listed below.

on-chip / on-board: Feature integrated in the SoC / present on the board.
2 / 2: Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo: Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Programming and debugging

The mikroe_stm32_m4_clicker board supports the runners and associated west commands listed below.

	flash	debug

Building & Flashing

You can build and flash an application in the usual way (See Building an Application and Run an Application for more details).

Here is an example for building and flashing the Blinky application.

# From the root of the zephyr repository
west build -b mikroe_stm32_m4_clicker samples/basic/blinky
west flash

Debugging

Debugging also can be done in the usual way. The following command is debugging the Blinky application. Also, see the instructions specific to the debug server that you use.

# From the root of the zephyr repository
west build -b mikroe_stm32_m4_clicker samples/basic/blinky
west debug
