GD32VF103C-STARTER

Board Overview

GD32VF103C-STARTER

Name:

gd32vf103c_starter

Vendor:

GigaDevice Semiconductor

Status:

Maintained

Architecture:

riscv

SoC:

gd32vf103

Browse board sources

Overview

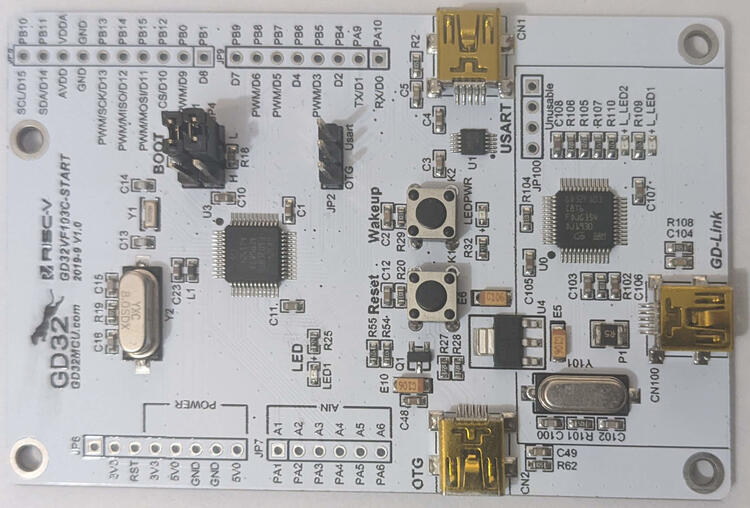

The GD32VF103C-STARTER board is a hardware platform that enables prototyping on GD32VF103CB RISC-V MCU.

The GD32VF103CB features a single-core RISC-V 32-bit MCU which can run up to 108 MHz with flash accesses zero wait states, 128 KiB of Flash, 32 KiB of SRAM and 37 GPIOs.

Hardware

• GD32VF103CBT6 MCU

• 1 x User LEDs

• 1 x USART (USB port with CH340E)

• USB FS connector

• GD-Link on board programmer

• J-Link/JTAG connector

For more information about the GD32VF103 SoC and GD32VF103C-STARTER board:

• GigaDevice RISC-V Mainstream SoC Website

• GD32VF103 Datasheet

• GD32VF103 User Manual

• GD32VF103C-STARTER Documents

Supported Features

The gd32vf103c_starter board supports the hardware features listed below.

on-chip / on-board

Feature integrated in the SoC / present on the board.

2 / 2

Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.

vnd,foo

Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Serial Port

The GD32VF103C-STARTER board has one serial communications port. TX connected at PA9 and RX at PA10.

Programming and Debugging

The gd32vf103c_starter board supports the runners and associated west commands listed below.

	flash	debug

Before programming your board make sure to configure boot and serial jumpers as follows:

• JP2/3: Select 2-3 for both (boot from user memory)

• JP5/6: Select 1-2 positions (labeled as USART0)

Using GD-Link

The GD32VF103C-STARTER includes an onboard programmer/debugger (GD-Link) which allows flash programming and debugging over USB. There is also a JTAG header (JP1) which can be used with tools like Segger J-Link.

1. Build the Zephyr kernel and the Hello World sample application:

   west build -b gd32vf103c_starter samples/hello_world


2. Run your favorite terminal program to listen for output. On Linux the terminal should be something like /dev/ttyUSB0. For example:

   minicom -D /dev/ttyUSB0 -o


   The -o option tells minicom not to send the modem initialization string. Connection should be configured as follows:

   • Speed: 115200

   • Data: 8 bits

   • Parity: None

   • Stop bits: 1

3. To flash an image:

   west build -b gd32vf103c_starter samples/hello_world
   west flash


   You should see “Hello World! gd32vf103c_starter” in your terminal.

4. To debug an image:

   west build -b gd32vf103c_starter samples/hello_world
   west debug
