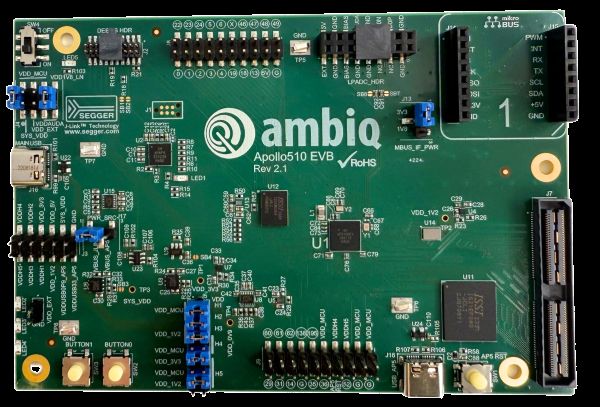

Apollo510 SOC Evaluation Board

Apollo510 EVB is a board by Ambiq featuring their ultra-low power Apollo510 SoC.

Hardware

  • Apollo510 SoC with up to 250 MHz operating frequency

  • ARM® Cortex®-M55 core

  • 64 kB Instruction Cache and 64 kB Data Cache

  • Up to 4 MB of non-volatile memory (NVM) for code/data

  • Up to 3 MB of low leakage / low power RAM for code/data

  • 256 kB Instruction Tightly Coupled RAM (ITCM)

  • 512 kB Data Tightly Coupled RAM (DTCM)

For more information about the Apollo510 SoC and Apollo510 EVB board:

Supported Features

The apollo510_evb board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Programming and Debugging

The apollo510_evb board supports the runners and associated west commands listed below.

flash debug

Flashing an application

Connect your device to your host computer using the JLINK USB port. The sample application Hello World is used for this example. Build the Zephyr kernel and application, then flash it to the device:

# From the root of the zephyr repository
west build -b apollo510_evb samples/hello_world
west flash

Note

west flash requires SEGGER J-Link software and pylink Python module to be installed on you host computer.

Open a serial terminal (minicom, putty, etc.) with the following settings:

  • Speed: 115200

  • Data: 8 bits

  • Parity: None

  • Stop bits: 1

Reset the board and you should be able to see on the corresponding Serial Port the following message:

Hello World! apollo510_evb
