WeAct RP2350B Core

Overview

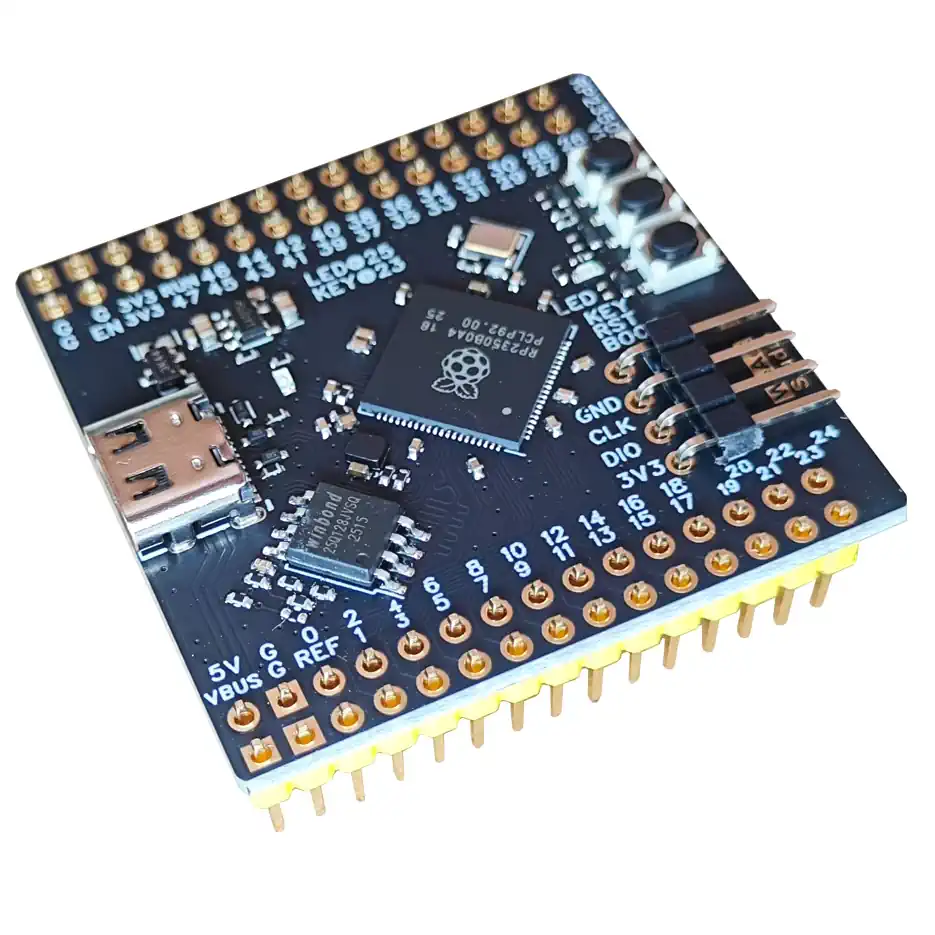

The WeAct RP2350B Core is a barebone development board for the RP2350B microcontroller by raspberry pi. It supports running code on either a single Cortex-M33 or a Hazard3 (RISC-V) core.

As with other RP2 boards, there’s no support for running any code on the second core.

Hardware

  • Dual Cortex-M33 or Hazard3 processors at up to 150MHz

  • 520KB of SRAM, and 16MB of on-board flash memory

  • USB 1.1 with device and host support

  • Low-power sleep and dormant modes

  • Drag-and-drop programming using mass storage over USB

  • 48 multi-function GPIO pins including 8 that can be used for ADC

  • 2 SPI, 2 I2C, 2 UART, One 12-bit 500ksps Analogue to Digital - Converter (ADC) with 8 channels, 24 controllable PWM channels

  • 2 Timer with 4 alarms, 1 AON Timer

  • Temperature sensor

  • 3 Programmable IO (PIO) blocks, 12 state machines total for custom peripheral support

  • rp2350b_core Schematics

Supported Features

The rp2350b_core board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Connections and IOs

  • Blue LED on pin 25.

  • User button on pin 23.

  • It is possible to add a second flash or a PSRAM chip to the back of the board. The CS is Pin 0. This is not currently supported in zephyr.

Programming and Debugging

The rp2350b_core board supports the runners and associated west commands listed below.

flash debug

The overall explanation regarding flashing and debugging is the same as for Raspberry Pi Pico. See Programming and Debugging in Raspberry Pi Pico documentation. N.b. OpenOCD support requires using Raspberry Pi’s forked version of OpenOCD.

Below is an example of building and flashing the Blinky application.

# From the root of the zephyr repository
west build -b rp2350b_core/rp2350b/m33 samples/basic/blinky
west flash -r uf2
