Pimoroni Pico Plus2

Overview

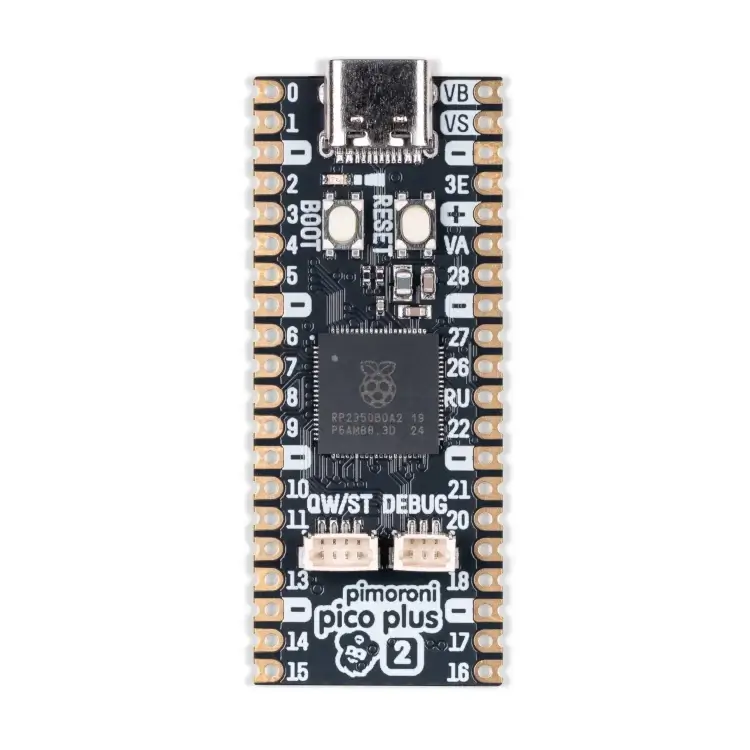

The Pimoroni Pico Plus 2 [1] is a compact and versatile board featuring the Raspberry Pi RP2350B SoC. It includes USB Type-C, Qwiic/STEMMA QT connectors, SP/CE connectors, a debug connector, a reset button, and a BOOT button.

Hardware

  • Dual Cortex-M33 or Hazard3 processors at up to 150MHz

  • 520KB of SRAM, and 4MB of on-board flash memory

  • 16MB of on-board QSPI flash (supports XiP)

  • 8MB of PSRAM

  • USB 1.1 with device and host support

  • Low-power sleep and dormant modes

  • Drag-and-drop programming using mass storage over USB

  • 48 multi-function GPIO pins including 8 that can be used for ADC

  • 2 SPI, 2 I2C, 2 UART, 3 12-bit 500ksps Analogue to Digital - Converter (ADC), 24 controllable PWM channels

  • 2 Timer with 4 alarms, 1 AON Timer

  • Temperature sensor

  • 3 Programmable IO (PIO) blocks, 12 state machines total for custom peripheral support

  • USB-C connector for power, programming, and data transfer

  • Qwiic/STEMMA QT(Qw/ST) connector

  • SP/CE connector

  • 3-pin debug connector, this can use with Raspberry Pi Debug Probe [2].

  • Reset button and BOOT button (BOOT button also usable as a user switch)

Supported Features

The pico_plus2 board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

You can use peripherals that are made by using the PIO. See PIO Based Features

Programming and Debugging

The pico_plus2 board supports the runners and associated west commands listed below.

flash debug

The overall explanation regarding flashing and debugging is the same as or Raspberry Pi Pico. See Programming and Debugging in Raspberry Pi Pico documentation. N.b. OpenOCD support requires using Raspberry Pi’s forked version of OpenOCD.

Below is an example of building and flashing the Blinky application.

# From the root of the zephyr repository
west build -b pico_plus2/rp2350b/m33 samples/basic/blinky
west flash --openocd /usr/local/bin/openocd
