S32K148EVB-Q176

Overview

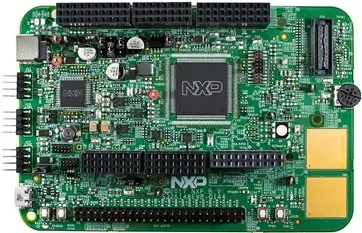

NXP S32K148-Q176 [8] is a low-cost evaluation and development board for general-purpose industrial and automotive applications. The S32K148-Q176 is based on the 32-bit Arm Cortex-M4F NXP S32K148 [9] microcontroller. The onboard OpenSDA serial and debug adapter, running a mass storage device (MSD) bootloader and a collection of OpenSDA Applications, offers options for serial communication, flash programming, and run-control debugging. It is a bridge between a USB host and the embedded target processor.

Hardware

  • NXP S32K148

    • Arm Cortex-M4F @ up to 112 Mhz

    • 1.5 MB Flash

    • 256 KB SRAM

    • up to 127 I/Os

    • 3x FlexCAN with FD

    • eDMA, 12-bit ADC, MPU, ECC and more.

  • Interfaces

    • CAN, LIN, UART/SCI

    • Ethernet connector compatible with different ethernet daughter cards

    • 2 touchpads, potentiometer, user RGB LED and 2 buttons.

More information about the hardware and design resources can be found at NXP S32K148-Q176 [8] website.

Supported Features

The s32k148_evb board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Note

Before using the Ethernet interface, please take note of the following:

  • For boards with the part number LSF24D at U16, R553 needs to be depopulated.

Connections and IOs

This board has 5 GPIO ports named from gpioa to gpioe.

Pin control can be further configured from your application overlay by adding children nodes with the desired pinmux configuration to the singleton node pinctrl. Supported properties are described in dts/bindings/pinctrl/nxp,port-pinctrl.yaml.

LEDs

The NXP S32K148-Q176 board has one user RGB LED that can be used either as a GPIO LED or as a PWM LED.

RGB LED as GPIO LED

Devicetree node

Devicetree alias

Label

Pin

led1_red

led0

LED1_RGB_RED

PTE21

led1_green

led1

LED1_RGB_GREEN

PTE22

led1_blue

led2

LED1_RGB_BLUE

PTE23
RGB LED as PWM LED

Devicetree node

Devicetree alias

Label

Pin

led1_red_pwm

pwm-led0 / red-pwm-led

LED1_RGB_RED_PWM

PTE21 / FTM4_CH1

led1_green_pwm

pwm-led1 / green-pwm-led

LED1_RGB_GREEN_PWM

PTE22 / FTM4_CH2

led1_blue_pwm

pwm-led2 / blue-pwm-led

LED1_RGB_BLUE_PWM

PTE23 / FTM4_CH3

The user can control the LEDs in any way. An output of 0 illuminates the LED.

Buttons

The NXP S32K148-Q176 board has two user buttons:

Devicetree node

Label

Pin

sw0 / button_3

SW3

PTC12

sw1 / button_4

SW4

PTC13

Serial Console

The serial console is provided via lpuart1 on the OpenSDA adapter.

Pin

Pin Function

PTC7

LPUART1_TX

PTC6

LPUART1_RX

System Clock

The Arm Cortex-M4F core is configured to run at 80 MHz (RUN mode).

Programming and Debugging

The s32k148_evb board supports the runners and associated west commands listed below.

flash debug

Applications for the s32k148_evb board can be built in the usual way as documented in Building an Application.

This board configuration supports SEGGER J-Link [10] West runner for flashing and debugging applications. Follow the steps described in J-Link Debug Host Tools, to setup the flash and debug host tools for this runner.

Flashing

Run the west flash command to flash the application using SEGGER J-Link.

Debugging

Run the west debug command to start a GDB session using SEGGER J-Link.

Configuring a Console

We will use OpenSDA as a USB-to-serial adapter for the serial console.

Use the following settings with your serial terminal of choice (minicom, putty, etc.):

  • Speed: 115200

  • Data: 8 bits

  • Parity: None

  • Stop bits: 1
