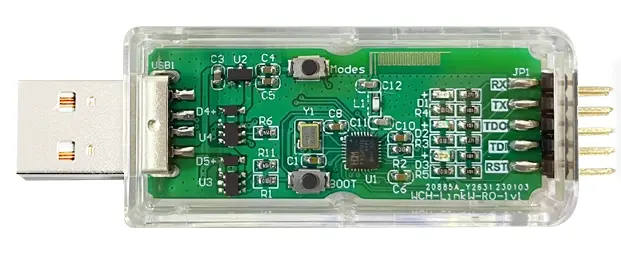

WCH LinkW

Overview

The WCH [1] LinkW hardware provides support for QingKe V4C 32-bit RISC-V processor and the following devices:

  • CLOCK

  • GPIO

  • NVIC

The board is equipped with two LEDs and two Buttons. The WCH webpage on CH32V208 [2] contains the processor’s manuals. The WCH webpage on LinkW [3] contains the LinkW’s schematic.

Hardware

The QingKe V4C 32-bit RISC-V processor of the WCH LinkW is clocked by an external 32 MHz crystal or the internal 8 MHz oscillator and runs up to 144 MHz. The CH32V208 SoC Features 4 USART, 4 GPIO ports, 2 SPI, 2 I2C, ADC, RTC, CAN, 2 USB Device, USB Host, OPA, ETH with PHY, several timers, and BLE 5.3.

Supported Features

The linkw board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Connections and IOs

LED

  • LED0 = Green Mode LED

  • LED1 = Blue Activity LED

Button

  • SW0 = Mode Select Button (Active Low)

  • SW1 = Bootstrap Button (Active High)

Programming and Debugging

The linkw board supports the runners and associated west commands listed below.

flash debug

Applications for the linkw board target can be built and flashed in the usual way (see Building an Application and Run an Application for more details); however, an external programmer is required since the board does not have any built-in debug support.

The following pins of the external programmer must be connected to the following pins on the PCB:

  • VCC = VCC

  • GND = GND

  • SWIO = PA13

  • SWCLK = PA14

Flashing

You can use minichlink to flash the board. Once minichlink has been set up, build and flash applications as usual (see Building an Application and Run an Application for more details).

Here is an example for the Blinky application.

# From the root of the zephyr repository
west build -b linkw samples/basic/blinky
west flash

Debugging

This board can be debugged via OpenOCD or minichlink.
