FlySky FS-i6S

Overview

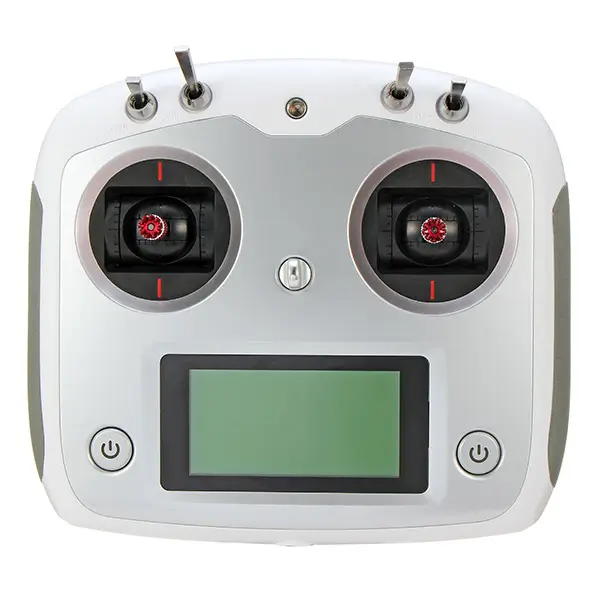

The FlySky FS-i6s is a 10-channel 2.4GHz remote controller transmitter commonly used for RC multirotors and fixed-wing aircraft. The internal hardware is driven by an ST STM32F072VB microcontroller. It features a capacitive touchscreen, physical gimbals, switches, push buttons, and an integrated RF module.

Hardware

  • STM32F072VB in LQFP100 package

  • ARM® 32-bit Cortex®-M0 CPU

  • 48 MHz max CPU frequency

  • VDD from 2.0 V to 3.6 V

  • 128 KB Flash

  • 16 KB SRAM

  • GPIO with external interrupt capability

  • 12-bit ADC with 39 channels

  • 12-bit D/A converters

  • RTC

  • General Purpose Timers (12)

  • USART/UART (4)

  • I2C (2)

  • SPI (2)

  • CAN

  • USB 2.0 full speed interface

  • DMA Controller

Supported Features

The fs_i6s board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Default Zephyr Peripheral Mapping:

LEDs and Audio

  • LCD Backlight: PF3 (Screen backlight control)

  • Left Power LED: PD10 (Blue LED under the left power button)

  • Right Power LED: PD11 (Blue LED under the right power button)

  • Buzzer: PA8 (Piezo buzzer, can be driven by TIM1_CH1)

Buttons and Power Management

Note

The two physical power buttons must be pressed simultaneously to trigger the associated GPIO. Single button presses cannot be read independently.

  • Power Buttons: PB14 (Both power buttons pressed together)

  • Rear Left Button: PA9 (Tactile push button on the back)

  • Rear Right Button: PA10 (Tactile push button on the back)

  • Powerdown Trigger: PB15 (Used to trigger system power off)

Analog Inputs (ADC)

All gimbals, potentiometers, and toggle switches are read using the STM32’s ADC multiplexer.

  • Right Stick L/R: PA0, ADC_CH0 (Right gimbal horizontal axis)

  • Right Stick U/D: PA1, ADC_CH1 (Right gimbal vertical axis)

  • Left Stick U/D: PA2, ADC_CH2 (Left gimbal vertical axis, throttle)

  • Left Stick L/R: PA3, ADC_CH3 (Left gimbal horizontal axis)

  • Switch A (Left): PA4, ADC_CH4 (2-way toggle switch)

  • Switch B (Left): PA5, ADC_CH5 (3-way toggle switch)

  • Jog Wheel Left: PA6, ADC_CH6 (Left proportional shoulder wheel)

  • Jog Wheel Right: PA7, ADC_CH7 (Right proportional shoulder wheel)

  • Switch C (Right): PB0, ADC_CH8 (3-way toggle switch)

  • Switch D (Right): PB1, ADC_CH9 (2-way toggle switch)

  • Battery Voltage: PC0, ADC_CH10 (Requires scaling, Divider: R9=10kΩ, R10=5.1kΩ to GND)

Display (Sitronix ST7567)

The LCD uses a Sitronix ST7567 controller and is wired to the MCU using an 8-bit parallel interface.

  • LCD_D0 - D7: PE0 - PE7 (8-bit Data Bus)

  • LCD_RS: PB3 (Register Select / Data Command)

  • LCD_RST: PB4 (Hardware Reset)

  • LCD_RW: PB5 (Read/Write)

  • LCD_RD: PD7 (Read enable)

  • LCD_CS: PD2 (Chip Select)

Touch Controller (Focaltech FT6236)

The capacitive touch overlay is driven by an FT6236 communicating over I2C1.

  • TOUCH_SCL: PB8 (I2C1 Clock)

  • TOUCH_SDA: PB9 (I2C1 Data)

  • TOUCH_INT: PC12 (Interrupt out from FT6236)

  • TOUCH_RST: PA15 (Hardware Reset)

USART

  • UART_1_TX: PB6

  • UART_1_RX: PB7

RF Module (For Reference Only, Not Used)

The internal RF module is labeled FS-HS060. It contains an XL7105 transceiver and PA/LNA chips.

  • SPI Lines: PE15 (SDIO), PE13 (SCK), PE12 (SCS)

  • Control Lines: PE11 (RF1), PE10 (RF0), PE8 (RX-W), PE9 (TX-W)

  • Interrupts: PB2 (GIO2), PE14 (GIO1)

Programming and Debugging

The fs_i6s board supports the runners and associated west commands listed below.

flash debug

SWD Interface

The PCB features labeled test points for the Serial Wire Debug (SWD) interface, making it easy to solder a header for an ST-Link or J-Link programmer. These are also accessible via the small J4 connector on the board:

  • SWDIO

  • SWCLK

  • NRST

  • GND

DFU Bootloader

Because the STM32F072 has a built-in USB DFU bootloader, you can flash Zephyr without a dedicated SWD programmer. Depending on your unit, the internal flash may need its write protect bit turned off using ST-Link SWD.

To enter DFU mode:

  1. Locate resistors R59 and R60 (connected to the BOOT1 pin).

  2. Short R60.

  3. Connect the batteries (or USB).

  4. Press the two power buttons simultaneously.

  5. The device should enumerate on your PC as an “STM32 BOOTLOADER” device, allowing you to flash the Zephyr .bin using dfu-util.

Flashing an Application

The dfu-util runner is supported on this board and so a sample can be built and tested easily.

# From the root of the zephyr repository
west build -b fs_i6s samples/basic/blinky
west flash
