Bouffalo Lab BL706-IoT-DVK

Overview

The BL706-IoT-DVK is a development board from Bouffalo Lab based on the BL706 (QFN48 package, BL706C00Q2I) RISC-V microcontroller. It features USB-C connectivity, four indicator LEDs, and exposes most GPIO pins for peripheral evaluation. A USB-to-serial backplane provides JTAG debugging and UART console access.

Hardware

The BL706C00Q2I SoC has the following features:

  • 32-bit RISC-V core (SiFive E24) running at 144 MHz

  • 132 KB SRAM (64 KB instruction TCM + 64 KB data TCM/cache + 4 KB retention)

  • 4 MB external flash (XIP) on module

  • USB 2.0 FS device

  • 2x UART, 1x SPI, 1x I2C, 1x I2S

  • 5-channel PWM

  • 12-bit ADC / 10-bit DAC

  • Hardware security engine (AES/SHA/TRNG)

  • Bluetooth Low Energy 5.0 / Zigbee

  • 32 GPIO pins (QFN48 package)

The board provides:

  • USB-C connector (for power, USB device interface, and CDC-ACM console)

  • USB-to-serial backplane (for UART console and JTAG debugging)

  • 4 indicator LEDs (TX0, RX0, TX1, RX1)

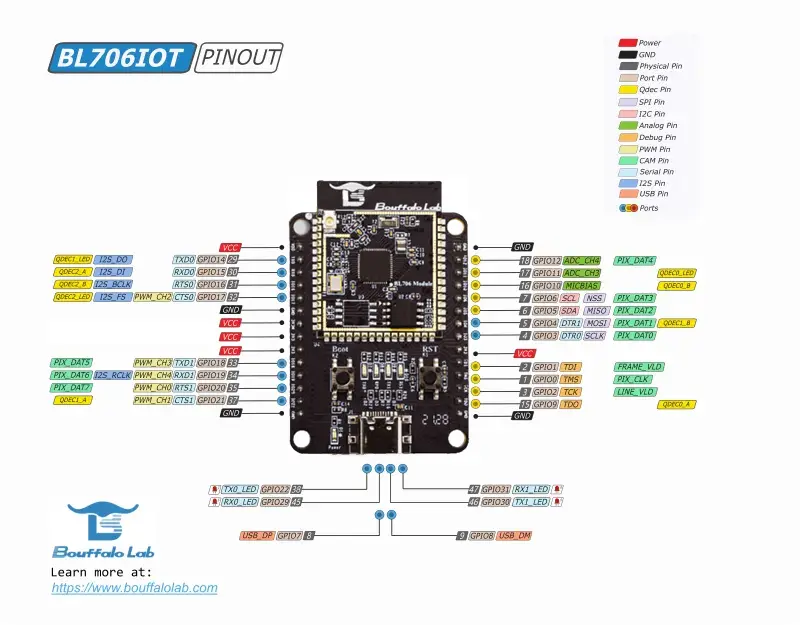

  • UART0 on GPIO14 (TX) / GPIO15 (RX)

  • UART1 on GPIO18 (TX) / GPIO19 (RX)

  • SPI on GPIO3 (SCLK) / GPIO4 (MOSI) / GPIO5 (MISO) / GPIO6 (SS)

  • I2C on GPIO5 (SDA) / GPIO6 (SCL) (shared with SPI, disabled by default)

  • Exposed GPIO headers for peripheral connections

Supported Features

The bl706_iot_dvk board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Connections and IOs

Default Zephyr Peripheral Mapping:

  • USB_DP : GPIO7

  • USB_DM : GPIO8

  • UART0_TX : GPIO14

  • UART0_RX : GPIO15

  • UART1_TX : GPIO18

  • UART1_RX : GPIO19

  • SPI0_SCLK : GPIO3

  • SPI0_MOSI : GPIO4

  • SPI0_MISO : GPIO5

  • SPI0_SS : GPIO6

  • I2C0_SDA : GPIO5 (shared with SPI)

  • I2C0_SCL : GPIO6 (shared with SPI)

  • TX0_LED : GPIO22

  • RX0_LED : GPIO29

  • TX1_LED : GPIO30

  • RX1_LED : GPIO31

Programming and Debugging

The bl706_iot_dvk board supports the runners and associated west commands listed below.

flash debug

Building

# From the root of the zephyr repository
west build -b bl706_iot_dvk samples/hello_world

Flashing

The board can be flashed over UART using bflb-mcu-tool. Hold the Boot button while pressing Reset to enter the bootloader, then run:

west flash

Console

By default the board uses a USB CDC-ACM UART as the Zephyr console. After flashing and resetting the board, the console is available on the USB serial port at 115200 baud.

Alternatively, UART0 is available via the USB-to-serial backplane for console access without USB CDC-ACM.
