AZ3166 MXChip IoT DevKit

Overview

The AZ3166 IoT DevKit from MXChip is a development board designed for IoT (Internet of Things) projects. It’s an all-in-one board powered by an Arm Cortex-M4 processor. On-board peripherals include an OLED screen, headphone output, stereo microphone and abundant sensors like humidity & temperature, pressure, motion (accelerometer & gyroscope) and magnetometer.

More information about the board can be found at the MXChip AZ3166 website [1].

Hardware

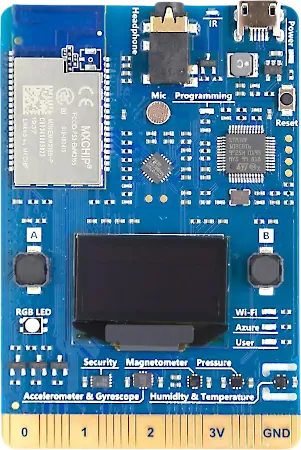

The MXChip AZ3166 IoT DevKit has the following physical features:

  • STM32F412 Arm Cortex M4F processor at 96 MHz

  • Working voltage: 3.3v or USB power supply

  • Supports 3.3V DC-DC, maximum current 1.5A

  • OLED display, 128x64 pixels

  • 2 programmable buttons

  • 1 RGB LED

  • 3 LED for status indicators (“Wi-Fi”, “Azure”, “User”)

  • Security encryption chip

  • Infrared emitter for IR remote control or interaction

  • Motion sensor (LSM6DSL)

  • Magnetometer sensor (LIS3MDL)

  • Atmospheric pressure sensor (LPS22HB)

  • Temperature and humidity sensor (HTS221)

  • EMW3166 Wi-Fi module with 256K SRAM，1M+2M Byte SPI Flash

Supported Features

The az3166_iotdevkit board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Note

The EMW3166 Wi-Fi module is currently not supported.

Programming and Debugging

The az3166_iotdevkit board supports the runners and associated west commands listed below.

flash debug

Flashing

Build and flash applications as usual (see Building an Application and Run an Application for more details).

Here is an example for the Hello World application.

First, run your favorite terminal program to listen for output.

$ minicom -D <tty_device> -b 115200

Replace <tty_device> with the port where the micro:bit board can be found. For example, under Linux, /dev/ttyACM0.

Then build and flash the application in the usual way.

# From the root of the zephyr repository
west build -b az3166_iotdevkit samples/hello_world
west flash
