BeagleV®-Fire

Overview

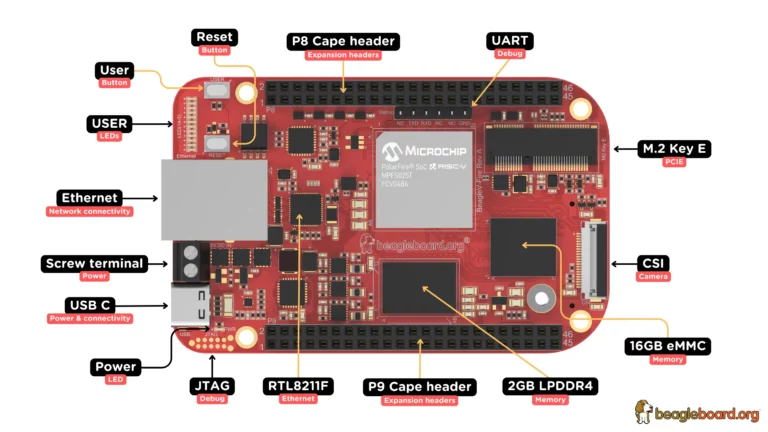

BeagleV®-Fire is a revolutionary single-board computer (SBC) powered by the Microchip’s PolarFire® MPFS025T 5x core RISC-V System on Chip (SoC) with FPGA fabric. BeagleV®-Fire opens up new horizons for developers, tinkerers, and the open-source community to explore the vast potential of RISC-V architecture and FPGA technology. It has the same P8 & P9 cape header pins as BeagleBone Black allowing you to stack your favorite BeagleBone cape on top to expand it’s capability. Built around the powerful and energy-efficient RISC-V instruction set architecture (ISA) along with its versatile FPGA fabric, BeagleV®-Fire SBC offers unparalleled opportunities for developers, hobbyists, and researchers to explore and experiment with RISC-V technology.

Supported Features

The beaglev_fire board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Building

There are three board configurations provided for the BeagleV-Fire:

  • beaglev_fire/polarfire/e51: Uses only the E51 core

  • beaglev_fire/polarfire/u54: Uses the U54 cores

  • beaglev_fire/polarfire/u54/smp: Uses the U54 cores with CONFIG_SMP=y

Applications for the beaglev_fire board configuration can be built as usual:

# From the root of the zephyr repository
west build -b beaglev_fire/polarfire/u54 samples/hello_world

Debugging

In order to upload the application to the device, you’ll need OpenOCD and GDB with RISC-V support. You can get them as a part of SoftConsole SDK. Download and installation instructions can be found on Microchip’s SoftConsole website.

You will also require a Debugger such as Microchip’s FlashPro5/6.

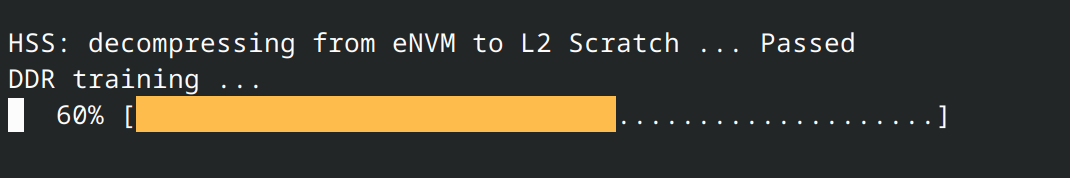

Connect to BeagleV-Fire UART debug port using a 3.3v USB to UART bridge. Now you can run tio <port> in a terminal window to access the UART debug port connection. Once you are connected properly you can press the Reset button which will show you a progress bar like:

beaglev_fire

Once you see that progress bar on your screen you can start pressing any button (0-9/a-z) which will interrupt the Hart Software Services from booting its payload.

With the necessary tools installed, you can connect to the board using OpenOCD. from a different terminal, run:

<softconsole_path>/openocd/bin/openocd --command "set DEVICE MPFS" --file \
<softconsole_path>/openocd/share/openocd/scripts/board/microsemi-riscv.cfg

Leave it running, and in a different terminal, use GDB to upload the binary to the board. You can use the RISC-V GDB from the Zephyr SDK. launch GDB:

<path_to_zephyr_sdk>/riscv64-zephyr-elf/bin/riscv64-zephyr-elf-gdb

Here is the GDB terminal command to connect to the device and load the binary:

set arch riscv:rv64
set mem inaccessible-by-default off
file <path_to_zehyr.elf>
target extended-remote localhost:3333
load
break main
continue

Flashing

When using the PolarFire Hart Software Services along with Zephyr, you need to use the hss-payload-generator tool to generate an image that HSS can boot.

set-name: 'ZephyrImage'

# Define the entry point address for each hart (U54 cores)
hart-entry-points:
  u54_1: '0x1000000000'

# Define the payloads (ELF binaries or raw blobs)
payloads:
  <path_to_zephyr.elf>:
    exec-addr: '0x1000000000'  # Where Zephyr should be loaded
    owner-hart: u54_1  # Primary hart that runs Zephyr
    priv-mode: prv_m  # Start in Machine mode
    skip-opensbi: true  # Boot directly without OpenSBI

After generating the image, you can flash it to the board by restarting a board that’s connected over USB and UART, interrupting the HSS boot process with a key press, and then running the mmc and usbdmsc commands:

Press a key to enter CLI, ESC to skip
Timeout in 1 second
.[6.304162] Character 100 pressed
[6.308415] Type HELP for list of commands
[6.313276] >> mmc
[10.450867] Selecting SDCARD/MMC (fallback) as boot source ...
[10.457550] Attempting to select eMMC ... Passed
[10.712708] >> usbdmsc
[14.732841] initialize MMC
[14.736400] Attempting to select eMMC ... Passed
[15.168707] MMC - 512 byte pages, 512 byte blocks, 30621696 pages
Waiting for USB Host to connect... (CTRL-C to quit)
. 0 bytes written, 0 bytes read
USB Host connected. Waiting for disconnect... (CTRL-C to quit)
/ 0 bytes written, 219136 bytes read

This will cause the board to appear as a USB mass storage device. You can then then flash the image with dd or other tools like BalenaEtcher:

dd if=<path_to_zephyr.elf> of=/dev/sdXD bs=4M status=progress oflag=sync
