NUMAKER M3334KI

Overview

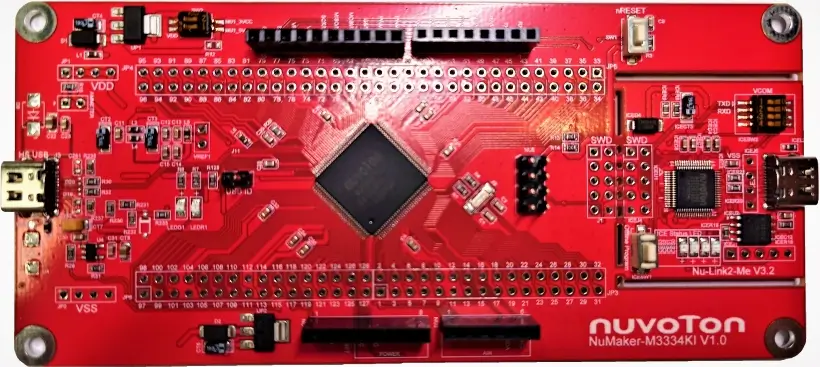

The NuMaker M3334KI is a microcontroller platform with comprehensive peripheral integration specially developed by Nuvoton. The NuMaker-M3334KI is based on the NuMicro® M3331 series MCU with ARM® -Cortex®-M33 core.

Features:

  • 32-bit Arm Cortex®-M33 M3334KIGAE MCU

  • Core clock up to 180 MHz

  • 512 KB embedded Dual Bank Flash and 320 KB SRAM

  • USB 2.0 Full-Speed OTG / Device

  • USB 1.1 Host

  • Arduino UNO compatible interface

  • One push-button is for reset

  • Two LEDs: one is for power indication and the other is for user-defined

  • On-board NU-Link2 ICE debugger/programmer with SWD connector

More information about the board can be found at the NuMaker M3334KI User Manual [1].

Supported Features

The numaker_m3334ki board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

The on-board 12-MHz crystal allows the device to run at its maximum operating speed of 180MHz.

More details about the supported peripherals are available in M3331 TRM [1]

Building and Flashing

The numaker_m3334ki board supports the runners and associated west commands listed below.

flash debug

Flashing

Here is an example for the Hello World application.

On board debugger Nu-link2 can emulate UART0 as a virtual COM port over usb, To enable this, set ISW1 DIP switch 1-3 (TXD RXD VOM) to ON. Connect the NuMaker-M3334KI to your host computer using the USB port, then run a serial host program to connect with your board. For example:

$ minicom -D /dev/ttyACM0

# From the root of the zephyr repository
west build -b numaker_m3334ki samples/hello_world
west flash

Debugging

Here is an example for the Hello World application.

# From the root of the zephyr repository
west build -b numaker_m3334ki samples/hello_world
west debug

Step through the application in your debugger.

VS Code Support

Here is to go through VS Code instead of command line.

Please install Nuvoton NuMicro Cortex-M Pack and follow getting start guide of this pack. This pack is a complete development toolkit for Nuvoton’s NuMicro Cortex-M microcontrollers in Visual Studio Code. URL of this pack is https://marketplace.visualstudio.com/items?itemName=Nuvoton.nuvoton-numicro-cortex-m-pack

References
