STM32H735G Discovery

Overview

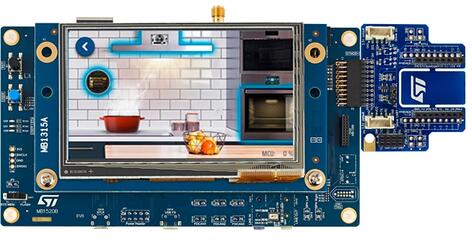

The STM32H735G-DK Discovery kit is a complete demonstration and development platform for Arm® Cortex®-M7 core-based STM32H735IGK6U microcontroller, with 1 Mbyte of Flash memory and 564 Kbytes of SRAM.

The STM32H735G-DK Discovery kit is used as a reference design for user application development before porting to the final product, thus simplifying the application development.

The full range of hardware features available on the board helps users to enhance their application development by an evaluation of all the peripherals (such as USB OTG FS, Ethernet, microSD™ card, USART, CAN FD, SAI audio DAC stereo with audio jack input and output, MEMS digital microphone, HyperRAM™, Octo-SPI Flash memory, RGB interface LCD with capacitive touch panel, and others). ARDUINO® Uno V3, Pmod™ and STMod+ connectors provide easy connection to extension shields or daughterboards for specific applications.

STLINK-V3E is integrated into the board, as the embedded in-circuit debugger and programmer for the STM32 MCU and USB Virtual COM port bridge. STM32H735G-DK board comes with the STM32CubeH7 MCU Package, which provides an STM32 comprehensive software HAL library as well as various software examples.

More information about the board can be found at the STM32H735G-DISCO website. More information about STM32H735 can be found here:

Supported Features

The stm32h735g_disco board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Pin Mapping

For more details please refer to STM32H735G-DISCO website.

Default Zephyr Peripheral Mapping:

  • UART_3 TX/RX : PD8/PD9 (ST-Link Virtual Port Com)

  • UART_7 TX/RX : PF7/PF6 (Arduino Serial)

  • LD1 : PC2

  • LD2 : PC3

  • FDCAN1 : CAN

System Clock

The STM32H735G System Clock can be driven by an internal or external oscillator, as well as by the main PLL clock. By default, the System clock is driven by the PLL clock at 550MHz. PLL clock is feed by a 25MHz high speed external clock.

Serial Port

The STM32H735G Discovery kit has up to 6 UARTs. The Zephyr console output is assigned to UART3 which connected to the onboard ST-LINK/V3.0. Virtual COM port interface. Default communication settings are 115200 8N1.

Programming and Debugging

The stm32h735g_disco board supports the runners and associated west commands listed below.

flash debug

STM32H735G-DISCO board includes an ST-LINK/V3 embedded debug tool interface.

See Building an Application for more information about application builds.

Flashing

The board is configured to be flashed using west STM32CubeProgrammer runner, so its installation is required.

Alternatively, OpenOCD or JLink can also be used to flash the board using the --runner (or -r) option:

$ west flash --runner openocd
$ west flash --runner jlink

It is advised to use STM32CubeProgrammer to check and update option bytes configuration.

Debugging

You can debug an application in the usual way. Here is an example for the Hello World application.

# From the root of the zephyr repository
west build -b stm32h735g_disco samples/hello_world
west debug
