STM32F405 Core Board V1.0

Overview

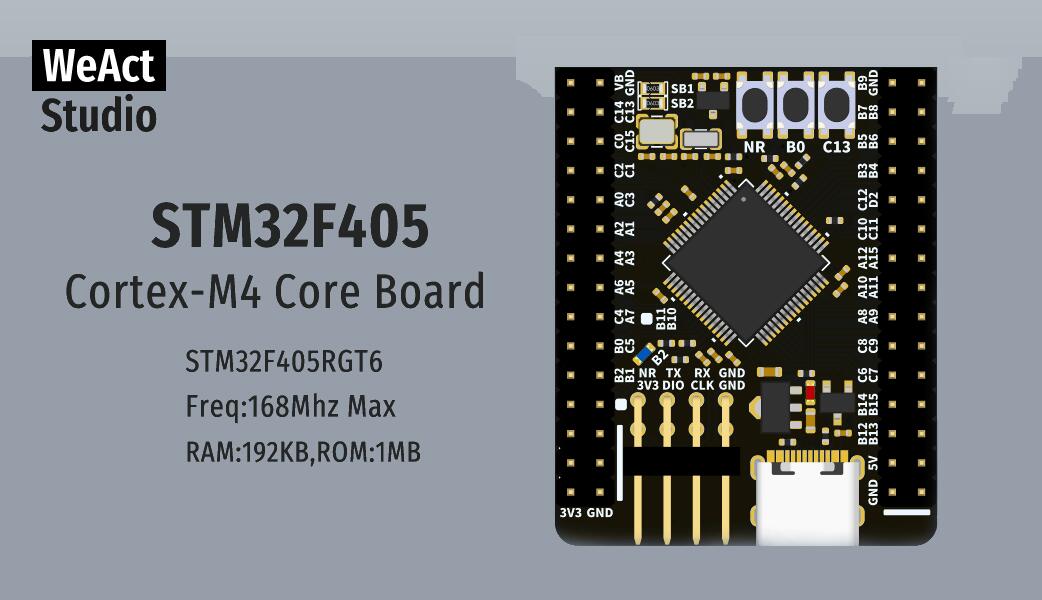

The WeAct STM32F405 Core Board is an extremely low cost and bare-bones development board featuring the STM32F405RG, see STM32F405RG website [4]. This is the 64-pin variant of the STM32F405x series, see STM32F405x reference manual [5]. More info about the board available on WeAct Github [2].

Hardware

The STM32F405RG based Core V1.0 Board provides the following hardware components:

STM32F405RG in QFPN64 package
ARM® 32-bit Cortex®-M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator) allowing 0-wait state execution from Flash memory
168 MHz max CPU frequency
VDD from 1.7 V to 3.6 V
1 MB Flash
192+4 Kbytes of SRAM including 64-Kbyte of CCM (core coupled memory)
GPIO with external interrupt capability
3x12-bit, 2.4 MSPS ADC up to 24 channels and 7.2 MSPS in triple interleaved mode
2x12-bit D/A converters
16-stream DMA controller
Up to 17 Timers (twelve 16-bit, two 32-bit, two watchdog timers and a SysTick timer)
USART/UART (4)
I2C (3)
SPI/I2S (3)
CAN (2)
SDIO
USB 2.0 full-speed device/host/OTG controller with on-chip PHY
USB 2.0 high-speed/full-speed device/host/OTG controller with on-chip full-speed PHY and ULPI
10/100 Ethernet MAC
CRC calculation unit
96-bit unique ID
RTC with hardware calendar
8- to 14-bit parallel camera interface
LCD parallel interface, 8080/6800 modes

Supported Features

The weact_stm32f405_core board supports the hardware features listed below.

on-chip / on-board: Feature integrated in the SoC / present on the board.
2 / 2: Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo: Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Pin Mapping

Default Zephyr Peripheral Mapping:

UART_1 TX/RX : PA9/PA10
UART_2 TX/RX : PA2/PA3
I2C1 SCL/SDA : PB6/PB7
SPI1 SCK/MISO/MOSI : PA5/PA6/PA7
CAN1 TX/RX : Pb9/PB8
SDMMC1 D0..D4/CLK/CMD : PC8/PC9/PC10/PC11/PC12/PD2
USER_PB : PC13
USER_LED : PB2

Clock Sources

The board has two external oscillators. The frequency of the slow clock (LSE) is 32.768 kHz. The frequency of the main clock (HSE) is 8 MHz.

The default configuration sources the system clock from the PLL, which is derived from HSE, and is set at 168MHz, which is the maximum possible frequency to achieve a stable USB clock (48MHz).

Programming and Debugging

The weact_stm32f405_core board supports the runners and associated west commands listed below.

	flash	debug

There are 2 main entry points for flashing STM32F4X SoCs, one using the ROM bootloader, and another by using the SWD debug port (which requires additional hardware). Flashing using the ROM bootloader requires a special activation pattern, which can be triggered by using the BOOT0 pin.

Flashing

Installing dfu-util

It is recommended to use at least v0.8 of dfu-util [3]. The package available in debian/ubuntu can be quite old, so you might have to build dfu-util from source.

There is also a Windows version which works, but you may have to install the right USB drivers with a tool like Zadig [1].

Flashing an Application

Connect a USB-C cable and the board should power ON. Force the board into DFU mode by keeping the BOOT0 switch pressed while pressing and releasing the NRST switch.

The dfu-util runner is supported on this board and so a sample can be built and tested easily.

# From the root of the zephyr repository
west build -b weact_stm32f405_core samples/basic/blinky
west flash

# From the root of the zephyr repository
west build -b weact_stm32f405_core samples/basic/button
west flash

# From the root of the zephyr repository
west build -b weact_stm32f405_core samples/subsys/fs/fs_sample
west flash

Debugging

The board can be debugged by installing the included 100 mil (0.1 inch) header, and attaching an SWD debugger to the 3V3 (3.3V), GND, SCK, and DIO pins on that header.
