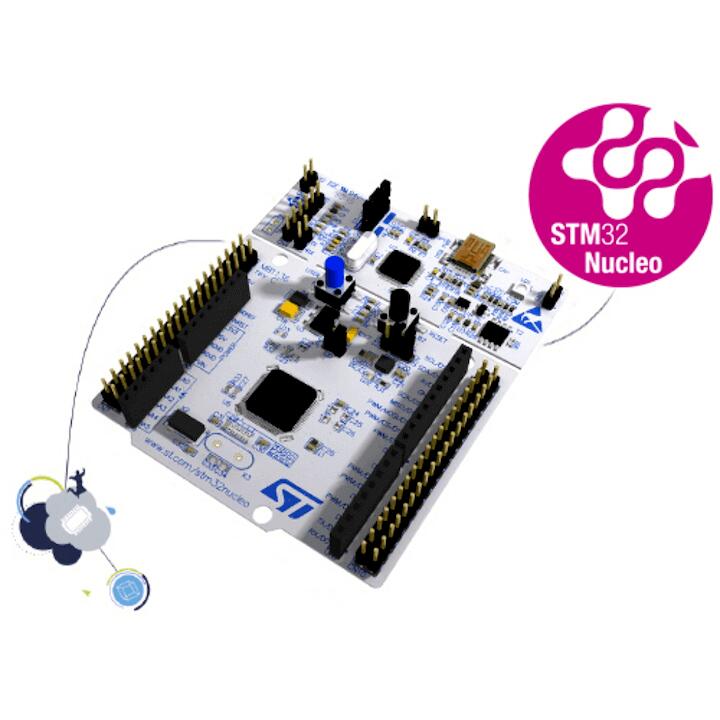

Nucleo F411RE

Overview

The Nucleo F411RE board features an ARM Cortex-M4 based STM32F411RE MCU with a wide range of connectivity support and configurations. Here are some highlights of the Nucleo F411RE board:

STM32 microcontroller in QFP64 package
Two types of extension resources:
- Arduino Uno V3 connectivity
- ST morpho extension pin headers for full access to all STM32 I/Os
On-board ST-LINK/V2-1 debugger/programmer with SWD connector
Flexible board power supply:
- USB VBUS or external source(3.3V, 5V, 7 - 12V)
- Power management access point
Three LEDs: USB communication (LD1), user LED (LD2), power LED (LD3)
Two push-buttons: USER and RESET

More information about the board can be found at the Nucleo F411RE website.

Hardware

Nucleo F411RE provides the following hardware components:

STM32F411RET6 in LQFP64 package
ARM® 32-bit Cortex®-M4 CPU with FPU
100 MHz max CPU frequency
VDD from 1.7 V to 3.6 V
512 KB Flash
128 KB SRAM
GPIO with external interrupt capability
12-bit ADC with 16 channels, with FIFO and burst support
RTC
8 General purpose timers
2 watchdog timers (independent and window)
SysTick timer
USART/UART (3)
I2C (3)
SPI/I2S (5)
SDIO
USB 2.0 OTG FS
DMA Controller
CRC calculation unit

More information about STM32F411RE can be found here:

Supported Features

The nucleo_f411re board supports the hardware features listed below.

on-chip / on-board: Feature integrated in the SoC / present on the board.
2 / 2: Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo: Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Connections and IOs

Nucleo F411RE Board has 8 GPIO controllers. These controllers are responsible for pin muxing, input/output, pull-up, etc.

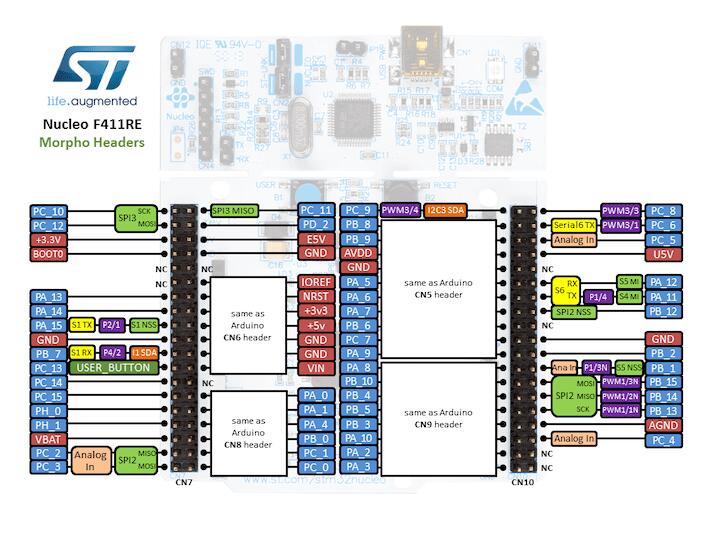

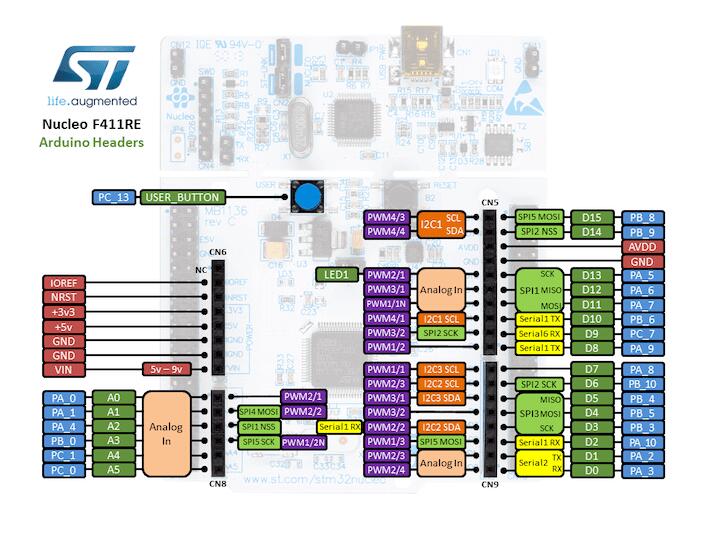

Available pins:

For more details please refer to STM32 Nucleo-64 board User Manual.

Default Zephyr Peripheral Mapping:

UART_1 TX/RX : PB6/PB7
UART_2 TX/RX : PA2/PA3 (ST-Link Virtual Port Com)
I2C1 SCL/SDA : PB8/PB9 (Arduino I2C)
I2C2 SCL/SDA : PB10/PB3
I2C1 SCL/SDA : PA8/B4
SPI1 CS/SCK/MISO/MOSI : PA4/PA5/PA6/PA7 (Arduino SPI)
I2S1 SCK/SD : PA5/PA7 (Arduino I2S)
USER_PB : PC13
LD2 : PA5

Note

Please note that SPI1 and I2S1 are connected to the same mcu pins, as the h/w controller is the same one.

System Clock

Nucleo F411RE System Clock could be driven by internal or external oscillator, as well as main PLL clock. By default System clock is driven by PLL clock at 84MHz, driven by 8MHz high speed external clock.

Serial Port

Nucleo F411RE board has 3 UARTs. The Zephyr console output is assigned to UART2. Default settings are 115200 8N1.

Programming and Debugging

The nucleo_f411re board supports the runners and associated west commands listed below.

	flash	debug

Nucleo F411RE board includes an ST-LINK/V2-1 embedded debug tool interface.

Applications for the nucleo_f411re board configuration can be built and flashed in the usual way (see Building an Application and Run an Application for more details).

Flashing

The board is configured to be flashed using west STM32CubeProgrammer runner, so its installation is required.

Alternatively, OpenOCD or JLink can also be used to flash the board using the --runner (or -r) option:

$ west flash --runner openocd
$ west flash --runner jlink

Flashing an application to Nucleo F411RE

Here is an example for the Hello World application.

Run a serial host program to connect with your Nucleo board.

$ minicom -D /dev/ttyACM0

Build and flash the application:

# From the root of the zephyr repository
west build -b nucleo_f411re samples/hello_world
west flash

You should see the following message on the console:

$ Hello World! arm

Debugging

You can debug an application in the usual way. Here is an example for the Hello World application.

# From the root of the zephyr repository
west build -b nucleo_f411re samples/hello_world
west debug
