Redbear Labs Nano v2

Overview

The Nano v2 is a development board equipped with Nordic’s next generation nRF52832 Bluetooth Low Energy SOC. This board was designed as a ‘drop-in’ replacement of BLE Nano with exactly the same form factor.

Hardware

  • nRF52832 SoC is built around a 32-bit ARM Cortex-M4F CPU with 512kB flash + 64kB RAM

  • 11 x Digital I/0

  • 1 UART with hardware flow control ( 4 I/O pins occupied )

  • 1 I2C ( 2 I/O pins occupied )

Supported Features

The nrf52_blenano2 board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Connections and IOs

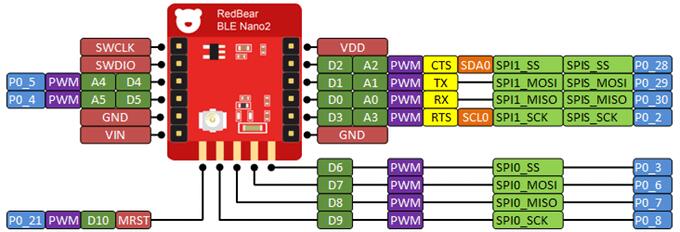

BLE nano v2 pinout

NANO2

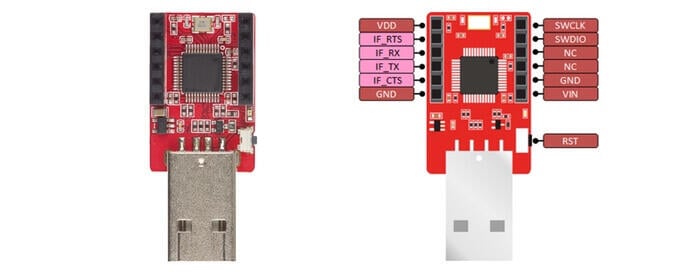

DAPLink board

DAP

The DAPLink USB board acts as a dongle. DAPLink debug probes appear on the host computer as a USB disk. It also regulates 5V from USB to 3.3V via the onboard LDO to power Nano v2.

Programming and Debugging

The nrf52_blenano2 board supports the runners and associated west commands listed below.

flash debug

Applications for the nrf52_blenano2 board configuration can be built and flashed in the usual way (see Building an Application and Run an Application for more details).

Flashing

To flash an application, you’ll need to connect your BLE Nano 2 with the DAPLink board, then attach that to your computer via USB.

Warning

Be careful to mount the BLE Nano 2 correctly! The side of the board with the VIN and GND pins should face towards the USB connector.

Now build and flash applications as usual. Here is an example for the Hello World application.

# From the root of the zephyr repository
west build -b nrf52_blenano2 samples/hello_world
west flash

Debugging

After mounting the BLE Nano 2 on its DAPLink board as described above, you can debug an application in the usual way. Here is an example for the Hello World application.

# From the root of the zephyr repository
west build -b nrf52_blenano2 samples/hello_world
west debug
