nRF52-VBLUno52
Overview
Zephyr can use the nrf52_vbluno52 board configuration to run on the VBLUno52 board, a VNG Bluetooth Low Energy UNO using an nRF52832 ARM Cortex-M4F processor. It provides support for the Nordic Semiconductor nRF52832 ARM Cortex-M4F CPU and the following devices:
NVIC
RTC
UART
GPIO
FLASH
RADIO (Bluetooth Low Energy 5.0)
Hardware
The VBLUno52 board has two external oscillators. The frequency of the slow clock is 32.768 kHz. The frequency of the main clock is 64 MHz.
Supported Features
The nrf52_vbluno52 board supports the hardware features listed below.
- on-chip / on-board
- Feature integrated in the SoC / present on the board.
- 2 / 2
-
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files. -
vnd,foo -
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

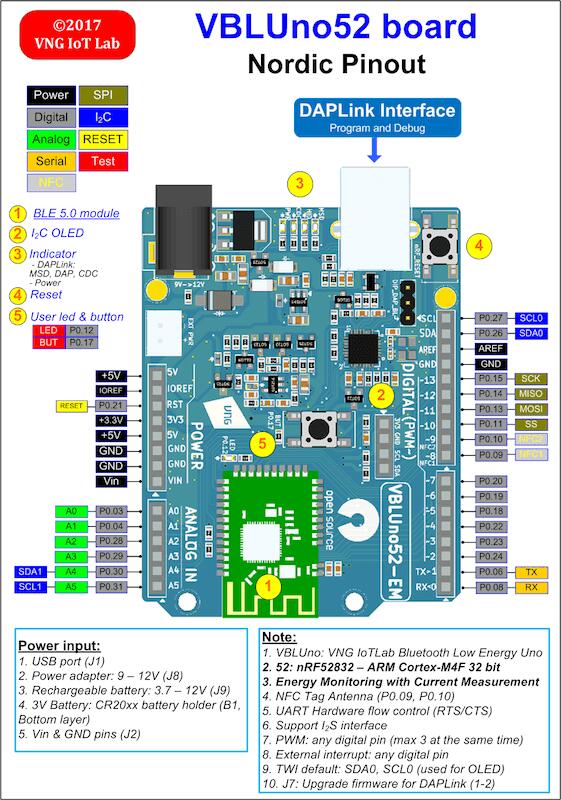

Connections and IOs
LED
LED = LED0 (green) = P0.12
Programming and Debugging
The nrf52_vbluno52 board supports the runners and associated west commands listed below.
| flash | debug |
|---|
Flashing
The VBLUno52 board has an on-board DAPLink (CMSIS-DAP) interface for flashing and debugging. You do not need any other programming device. You only need to install the pyOCD tool (https://pypi.python.org/pypi/pyOCD)
See the Getting Started Guide for general information on setting up your development environment.
You can build and flash applications in the usual way. Here is an example for the Hello World application.
# From the root of the zephyr repository
west build -b nrf52_vbluno52 samples/hello_world
west flash
