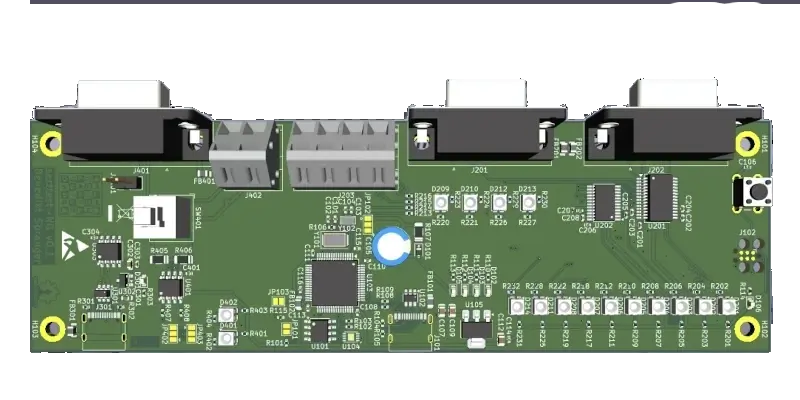

STM32G431 based Sertest-NG board

The Eurovibes STM32G431 based Sertest-NG board is a universal serial protocol test board. It supports one full RS232 port, a two wire RS232 board, a RS422, a RS485 and a CAN-FD port. LEDs show the different line status information. See the STM32G431RB website [2] for more information about the MCU. More information about the board, including schematics, is available from the Eurovibes GitHub [1].

Supported Features

The eurovibes_stm32g431_sertest-ng board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Pin Mapping

Default Zephyr Peripheral Mapping:

  • FDCAN_1 TX/RX : PB9/PB8

  • I2C2 SDA/SCL : PA8/PA9

  • LED0 : PB4

  • LED1 : PB5

  • LED2 : PB6

  • LED3 : PB7

  • USART_1 TX/RX : PC4/PBC5

  • USART_2 TX/RX : PA2/PA3

  • USART_2 CTS/RTS: PA0/PA1

  • USART_3 TX/RX : PB10/PB11

Hardware Configuration

Solder bridge

Default

Description

JP101

Open

M24C64 write protection: close to enable WR

JP102

1-2

VBAT: 1-2: 1F Capacitor / 2-3: bypass

JP103

Open

BOOT0: close to enter programming mode

JP401

Open

connect CAN GND to GND

JP402

1-2

CAN TX: 1-2 default / 2-3 swap

JP403

1-2

CAN RX: 1-2 default / 2-3 swap

Clock Sources

The board has two external oscillators. The frequency of the slow clock (LSE) is 32.768 kHz. The frequency of the main clock (HSE) is 8 MHz.

The default configuration sources the system clock from the PLL, which is derived from HSE, and is set at 170 MHz. The 48 MHz clock used by the USB interface is derived from the internal 48 MHz oscillator.

Programming and Debugging

The eurovibes_stm32g431_sertest-ng board supports the runners and associated west commands listed below.

flash debug

The MCU is normally programmed using the exposed SWD port (Tag-Connect TC2030).

Flashing an Application

Connect a Tag-Connect cable from a J-Link JTAG probe to the board and the board should power ON.

# From the root of the zephyr repository
west build -b eurovibes_stm32g431_sertest-ng samples/basic/blinky
west flash

Debugging

The board can be debugged by connecting a JTAG probe to the Tag-Connect connector:

Tag-Connect TC2030 SWD pinout

Pin

Signal

1

VCC

2

SWDIO / TMS

3

nRESET

4

SWCLK / TCK

5

GND (also connected to GNDDetect)

6

SWO / TDO
