STG-800 lococube mini-PLC

Overview

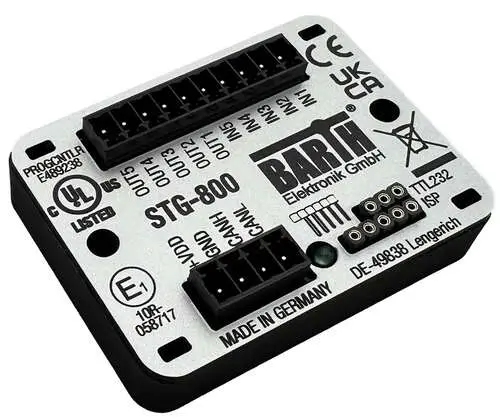

The Barth Electronik STG-800 lococube mini-PLC [1] board is based on the STM32F091 microcontroller from ST Microelectronics. It has analog and digital inputs, digital power outputs and a CAN bus interface.

Warning

If you program this board with Zephyr firmware, the original miCon-L firmware will be irreversibly overwritten.

Hardware

  • Microcontroller STM32F091CCUx in UFQFPN48 package. Max frequency 48 MHz.

  • ARM Cortex M0+ core

  • 32 kByte SRAM

  • 256 kByte flash

  • 8 kByte EEPROM via I2C

  • Supply voltage +7 to +32 Volt

  • Temperature range -40 to +70 °C

  • Vibration Resistant and Rugged Sealing

  • Green user LED

  • 3 analog inputs 0-30 Volt, 12 bit ADC

  • 2 digital inputs

  • 4 high-side digital outputs, capable of 1.5 A

  • 1 low-side PWM digital output, capable of 2 A

  • CAN bus interface

  • Debug serial port, 3.3 Volt compatible

  • Serial wire debug (SWD) connector

Default Zephyr Peripheral Mapping

Label

Pin

LED

PA8

EEPROM (8 kByte):

Signal

MCU pin

Default pin mux

SDA

PB14

I2C2

SCL

PB13

I2C2

CAN controller:

Signal

MCU pin

Default pin mux

CAN_TX

PB9

CAN1

CAN_RX

PB8

CAN1

CAN_S

PB6

GPIO for CAN transceiver enable

X1 Connector (Supply and CAN bus):

Connector pin

Label

Description

1

+VDD

+7 to +32 Volt, use fuse max 5 A

2

GND

3

CANH

4

CANL

There are no CAN termination resistors on this board.

X2 Connector (Inputs and outputs):

Connector pin

Label

MCU pin

Description

Default pin mux

1

IN1

PA0

Analog in 0-30 Volt

ADC_IN0

2

IN2

PA1

Analog in 0-30 Volt

ADC_IN1

3

IN3

PA2

Analog in 0-30 Volt

ADC_IN2

4

IN4

PA12

Digital in max 30 Volt

5

IN5

PA15

Digital in max 30 Volt

6

OUT1

PC13

Digital out highside

7

OUT2

PC14

Digital out highside

8

OUT3

PC15

Digital out highside

9

OUT4

PA4

Digital out highside

10

OUT5

PB7

Digital out lowside

There are pulldown resistors on all inputs. Do not switch the highside digital outputs (OUT1-OUT4) faster than 100 Hz, due to heat disipation in the drivers.

X3 Connector (Programming):

Connector pin

MCU pin

Signal

ST-Link/V2 pin

1, closest to ISP text

+3.3 Volt

1

2

GND

4

3

PA13

SWDIO

7

4

PA14

SWCLK

9

5

RESET

15

X4 Connector (Debug serial port):

Pin

Comment

MCU pin

Signal

Default pin mux

1

Closest to TTL232 text

GND

2

Connect to host TX

PA10

RX (3.3 Volt)

USART1

3

Connect to host RX

PA9

TX (3.3 Volt)

USART1

Supported Features

The stg_800 board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Programming and Debugging

The stg_800 board supports the runners and associated west commands listed below.

flash debug

Connect a ST-Link/V2 programmer to the X3 connector of the board. See the table above for how the pins of the ST-Link/V2 programmer should be connected to pins of the board connector.

In order to be able to program new firmware to the board, the “option bytes” of the microcontroller must be erased to disable read/write protection. This can be done using the STM32CubeProgrammer [2] software.

The board is configured to be flashed using west STM32CubeProgrammer runner, so its installation is required.

Alternatively, OpenOCD or JLink can also be used to flash the board using the --runner (or -r) option:

$ west flash --runner openocd
$ west flash --runner jlink

Flashing

To run the Blinky sample:

# From the root of the zephyr repository
west build -b stg_800 samples/basic/blinky/
west flash

Try also the Hello World, Analog-to-Digital Converter (ADC) with devicetree, EEPROM and Controller Area Network (CAN) counter samples.

Use the shell to read the input pins and control the output pins:

# From the root of the zephyr repository
west build -b stg_800 samples/sensor/sensor_shell -- -DCONFIG_GPIO=y -DCONFIG_GPIO_SHELL=y
west flash

Read analog voltage on IN1 (which is around 12 Volt in this example):

uart:~$ sensor get input1
channel type=42(voltage) index=0 shift=4 num_samples=1 value=87626876000ns (11.984414)

Read digital signal on IN4 (pin A12):

uart:~$ gpio conf gpioa 12 ih
uart:~$ gpio get gpioa 12
1

Set digital OUT1 (pin C13) to high:

uart:~$ gpio conf gpioc 13 oh0
uart:~$ gpio set gpioc 13 1
