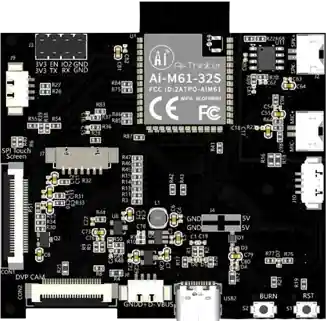

AiPi-Eyes-S2 Multi-Functional Development Board

Overview

AiPi-Eyes-S2 is a Wi-Fi 6 + BLE5.3 module developed by Shenzhen Ai-Thinker Technology Co., Ltd. The module is equipped with BL618 chip as the core processor, supports Wi-Fi 802.11b/g/n/ax protocol and BLE protocol, and supports Thread protocol. The BL618 system includes a low-power 32-bit RISC-V CPU with floating-point unit, DSP unit, cache and memory, with a maximum dominant frequency of 320M.

The module is a AI-M61-32S with marking BLOFN8IR4All.

Hardware

For more information about the Bouffalo Lab BL-61x MCU:

Bouffalo Lab BL61x MCU Datasheet
Bouffalo Lab Development Zone
aipi_eyes_s2 Schematics (switch lang to CN if dead link)

Supported Features

The aipi_eyes_s2 board supports the hardware features listed below.

on-chip / on-board: Feature integrated in the SoC / present on the board.
2 / 2: Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo: Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

System Clock

The M61 (BL618) Development Board is configured to run at maximum speed (320MHz) and can be overclocked to 480 MHz.

Serial Port

The aipi_eyes_s2 board uses UART0 as default serial port. It is connected to USB Serial converter and port is used for both program and console.

Programming and Debugging

The aipi_eyes_s2 board supports the runners and associated west commands listed below.

	flash	debug

Samples

Build the Zephyr kernel and the Hello World sample application:

# From the root of the zephyr repository
west build -b aipi_eyes_s2 samples/hello_world
west flash

Run your favorite terminal program to listen for output. Under Linux the terminal should be /dev/ttyUSB0. For example:
```
$ screen /dev/ttyUSB0 115200
```
Connection should be configured as follows:
- Speed: 115200
- Data: 8 bits
- Parity: None
- Stop bits: 1
Then, press and release RST button
```
*** Booting Zephyr OS build v4.4.0 ***
Hello World! aipi_eyes_s2/bl618m05q2i
```

Congratulations, you have aipi_eyes_s2 configured and running Zephyr.
